AudioPressBox

APB-1.32 CB

Portable AudioPressBox case bundle, 1 Line Input, 32 Line/MIC Outputs (4x 8 Line/MIC Outputs)

A professional portable active press box bundle consisting of a AudioPressBox drive unit and AudioPressBox portable expanders.
It features 1 Line Input and 32 Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.
The drive unit has 2 buffered expander Outputs and can power up to 48 Line/MIC Outputs.
You can connect any of our expanders to the drive unit not only the ones in the case.

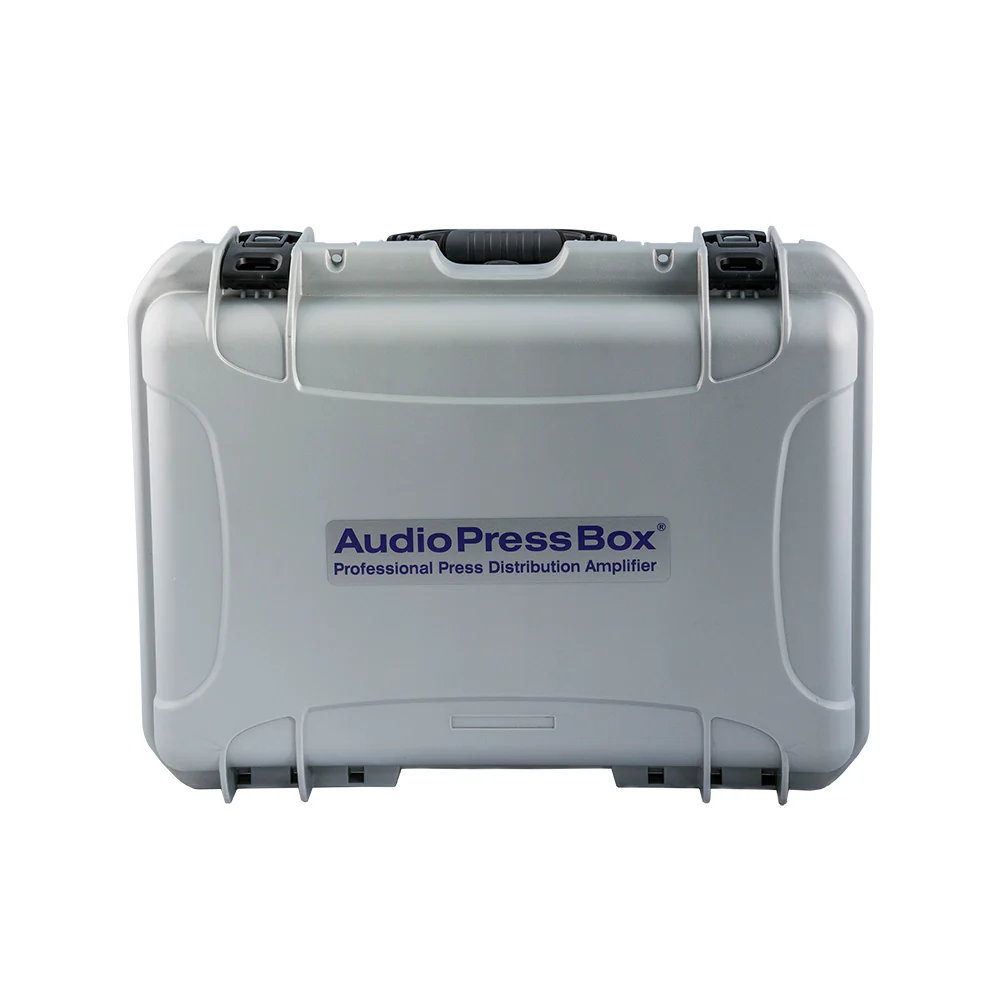

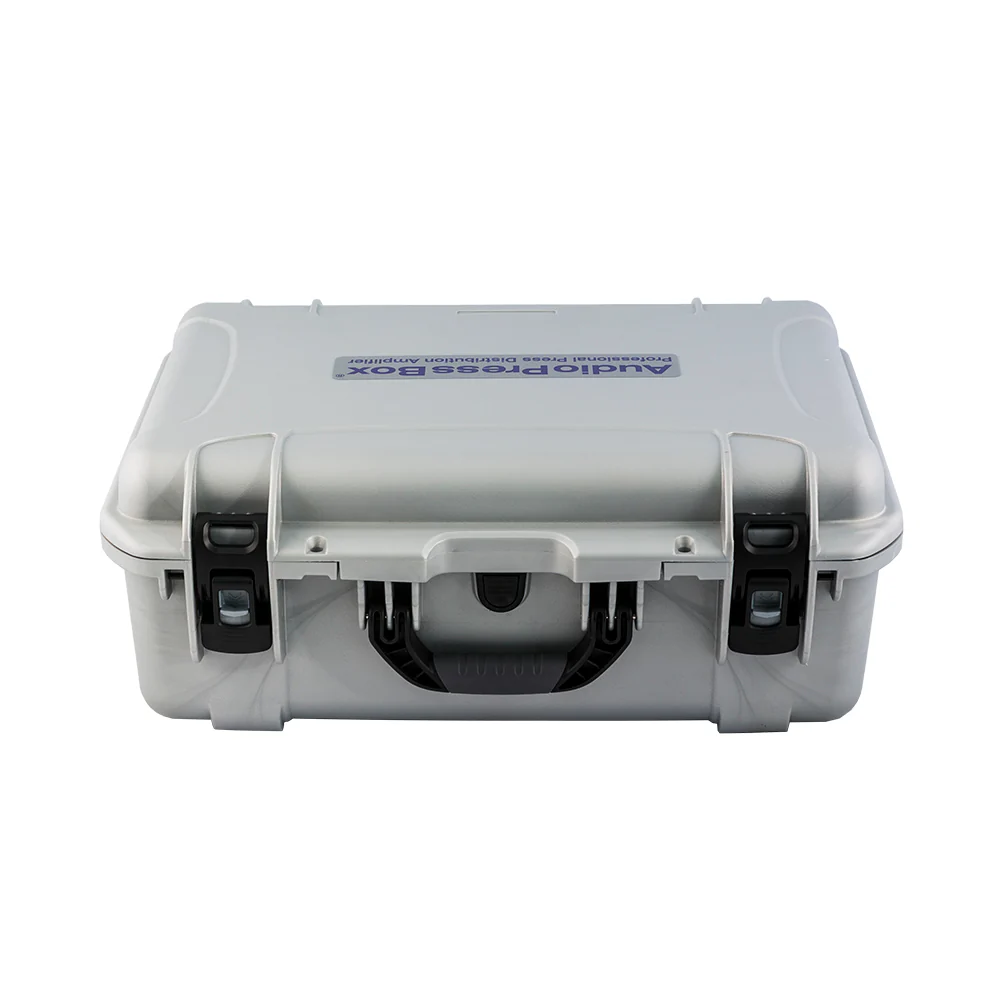

All of this is placed in a waterproof, heavy duty nanuk case.

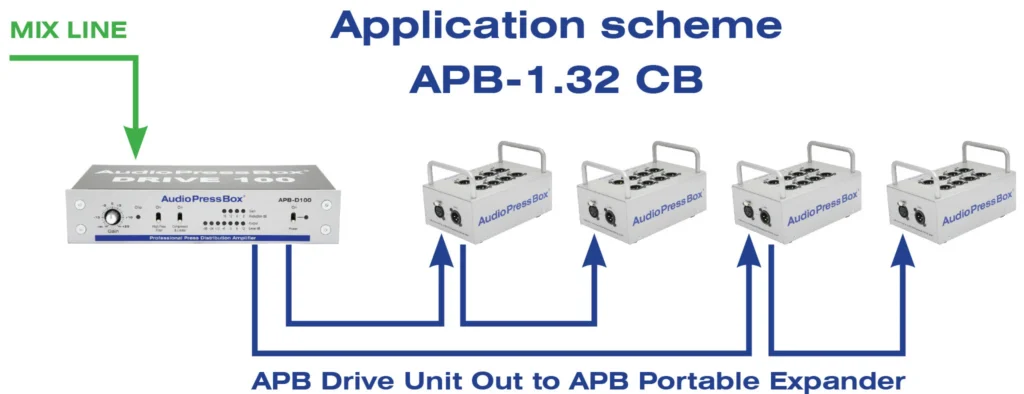

The biggest advantage of this bundle is that you can daisy chain the portable expanders in 2 directions. The total length of the cable in each direction can go up to 500m so you can easily cover any type or shapre of a conference room.

Professional portable AudioPressBox bundle includes:

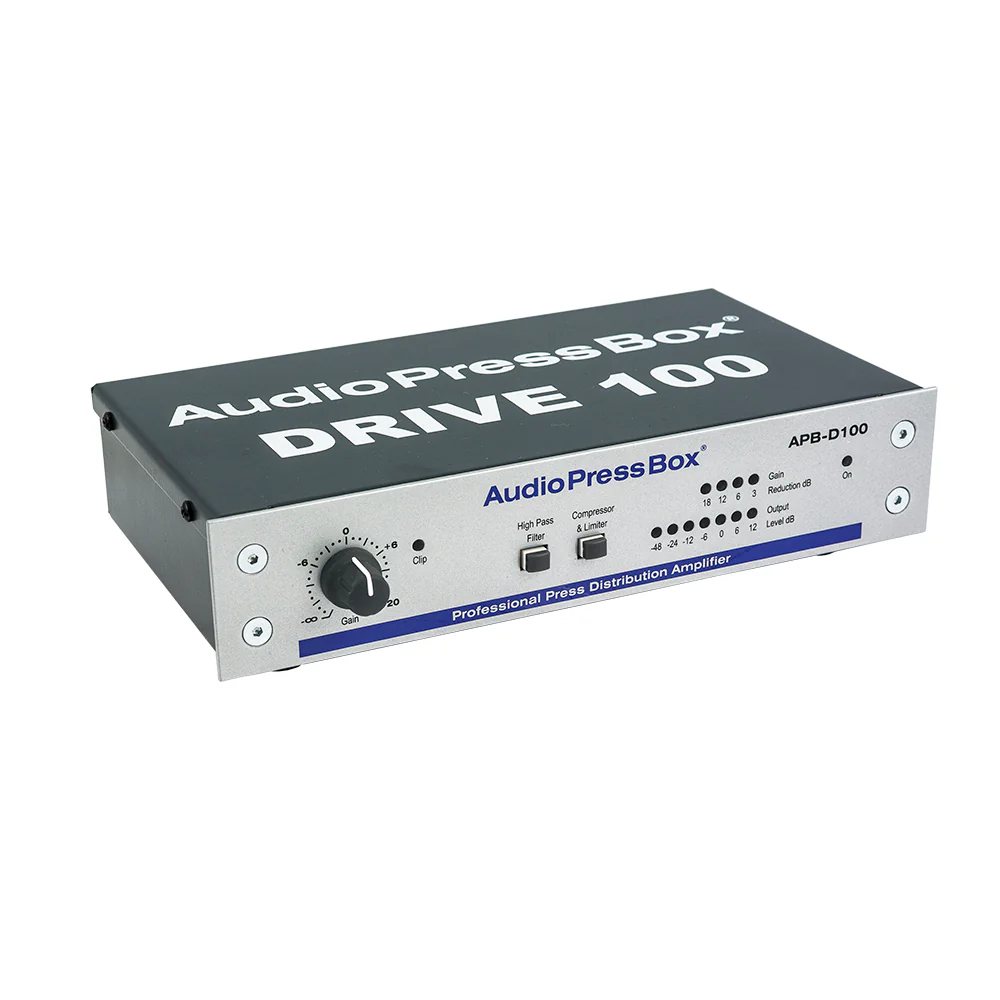

1x APB-D100 drive unit:
• 1 balanced LINE Input
• Switchable High-Pass filter
• Switchable Compressor and Limiter for Input channel
• 2 separately buffered Outputs
Pack includes 4 AudioPressBox expanders with 8-outputs each.

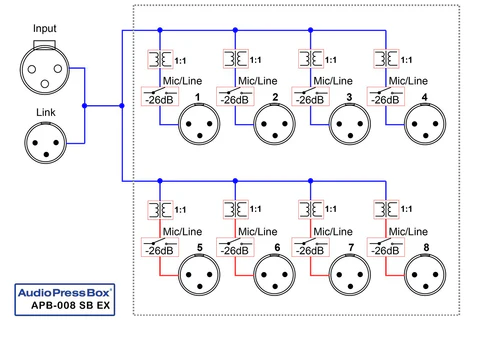

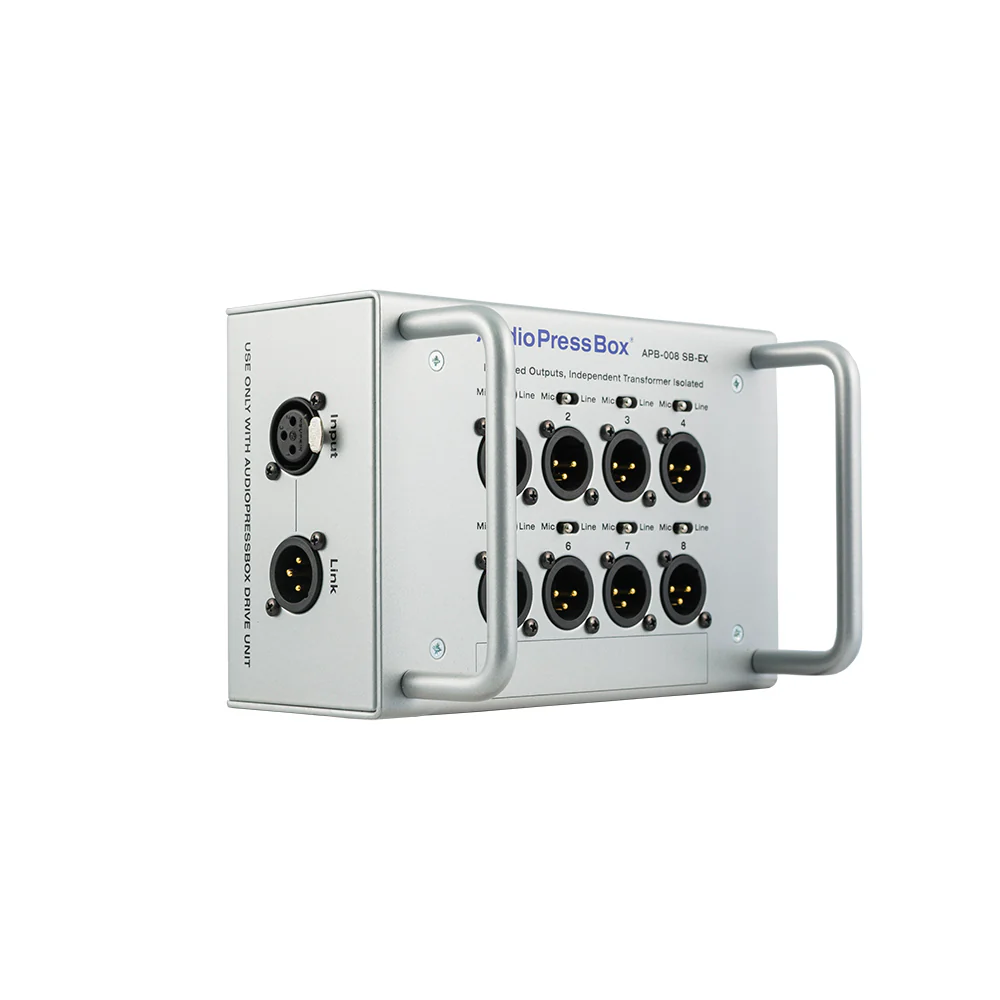

4x APB-008 SB-EX expanders:
• 1 balanced Input for APB drive unit with link Output for another unit
• 8 High quality balanced Outputs, independent transformer isolated and switchable LINE or MIC Output level.

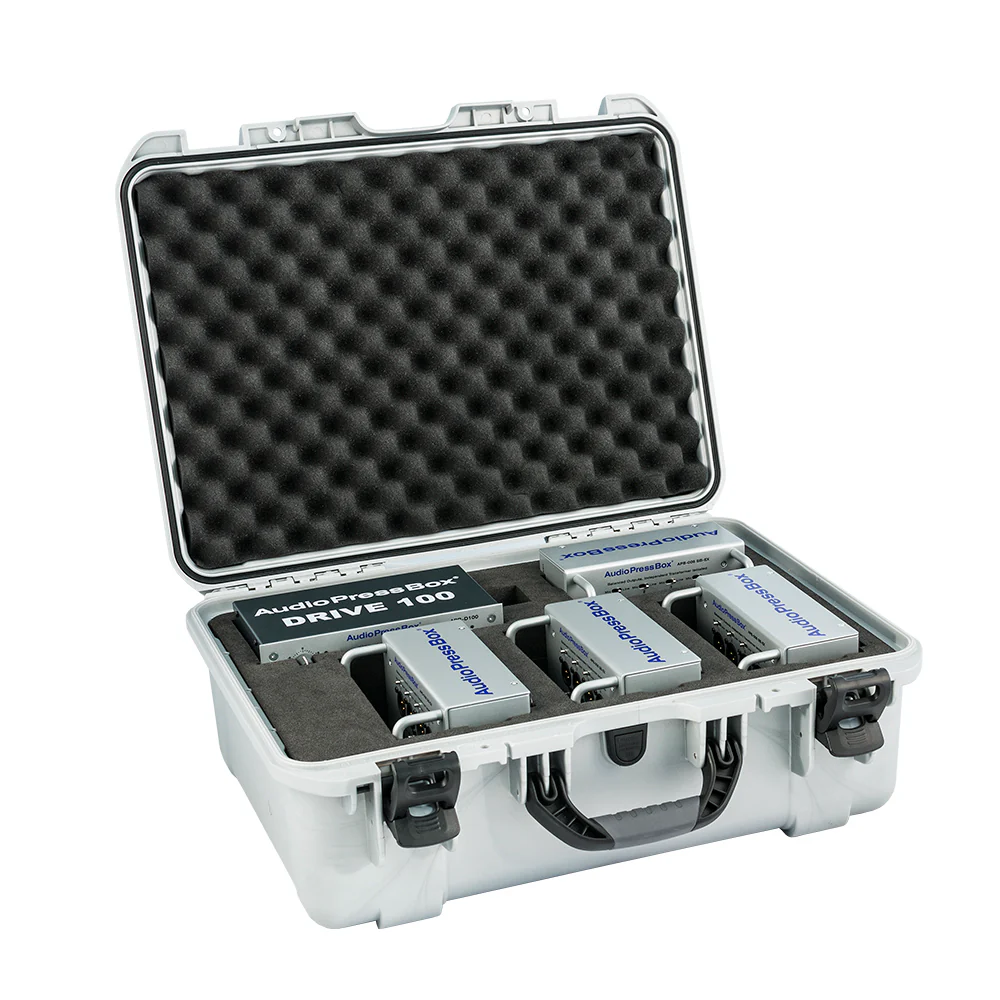

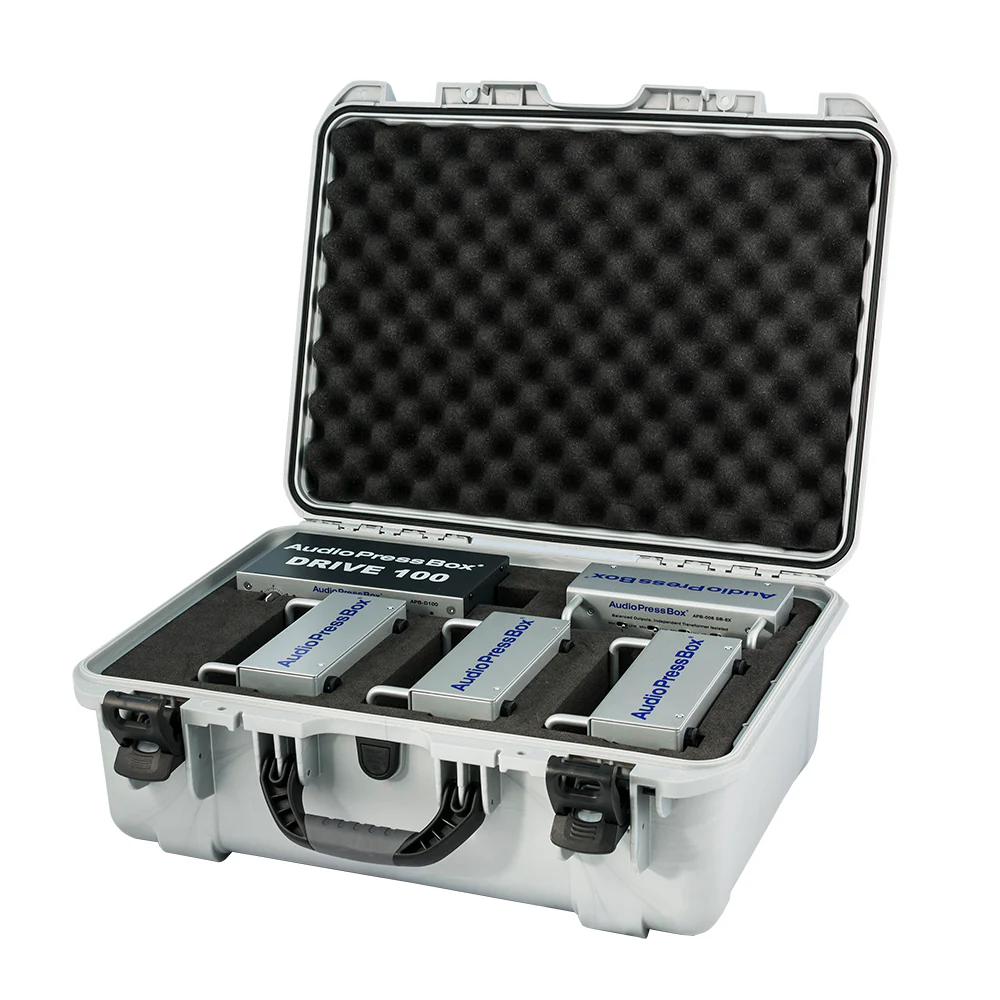

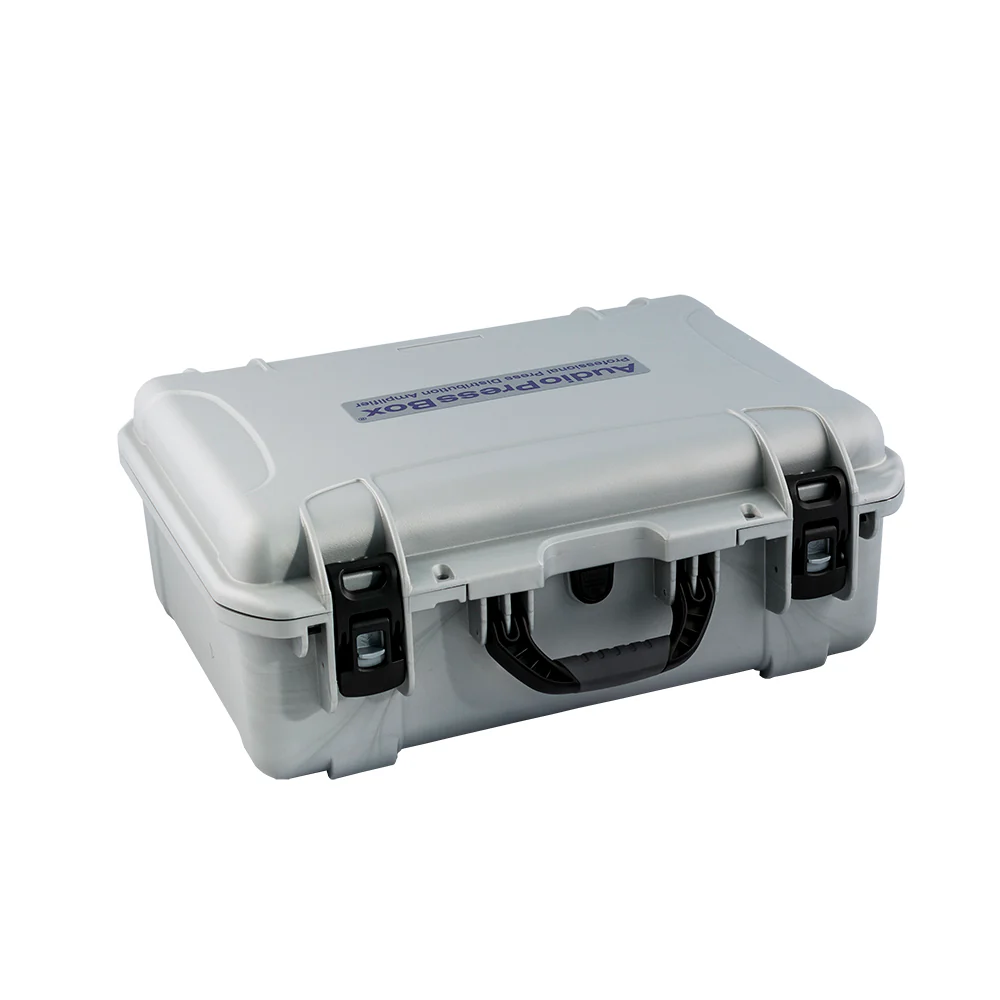

1x Professional waterproof, special heavy duty case

• AudioPressBox delivers audio in broadcast quality

Watch for more details

Features

HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.

COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.

(8×4) Transformer Separately transformer isolated outputs. Total 32 Line/Mic outputs

2 buffered expander outputs

24V DC Power Supply

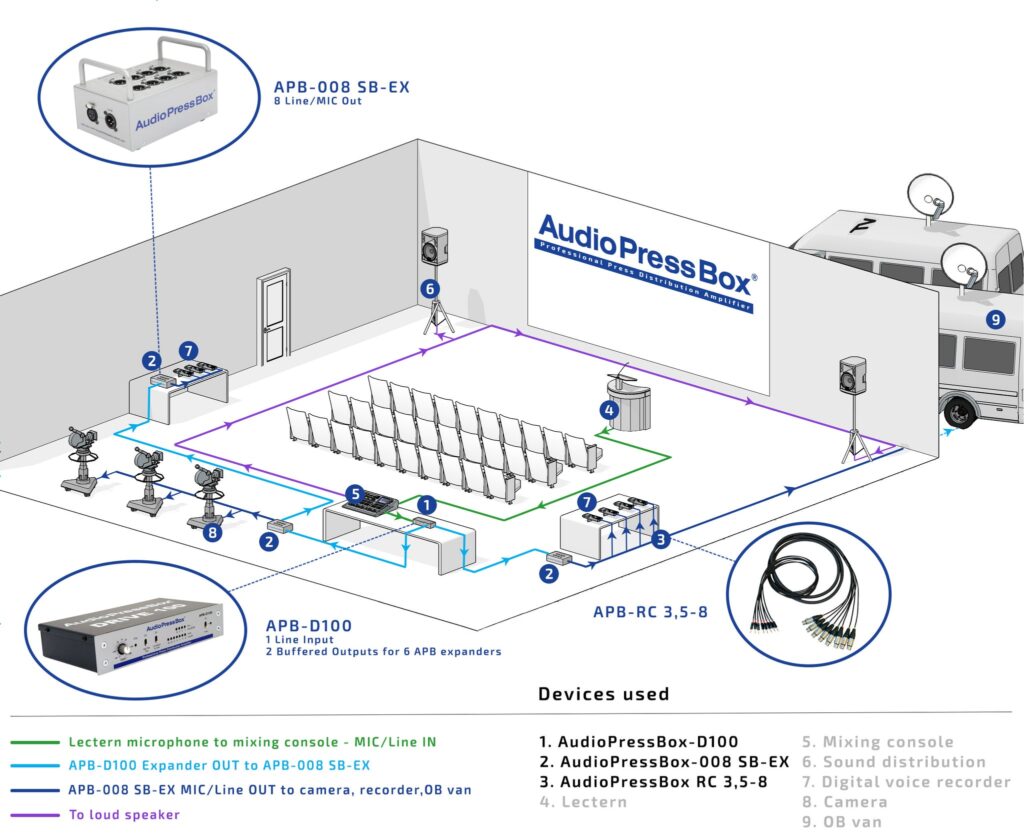

Applications

Specification of APB-1.32 CB

Audio Press Box APB-1.32 CB
Dimensions	560 x 430 x 220 mm
Weight	12 400 g (12,4 kg)
Audio Press Box APB-D100
Type	1 IN/ 2 Drive OUT for 6xAPB 8-Output expandersor 2xAPB 24- Output expander Note: Total capacity:48 Line/Mic outputs (6x APB-008 xx-EX or 2x APB-024 R-EX) or 576 Mic Outputs (48x APB-P112 SB)
Input section
Inputs	1
Input connectors	Balanced, XLR
Max. input level	Line: +32/+2dBu
Input Impedance	>5kOhm
Output section
Outputs	2 separately buffered, balanced outputs for AudioPressBox expanders
Output connectors	Balanced, XLR
Nominal Output Level	+6 dBu
Maximum Output Level	+20dBu with 48 Outputs in use ; +16dBu (600kOhm)

Output impedance	Mic: 220 Ohm ; Line: 600 Ohm
Transformer isolated outputs:	Yes (each EXPANDER output is Independant Transformer Isolated)
SNR	86dB at 0dB Gain ; 78dB at +20dB Gain
Frequency Response	30/160Hz (filter) to 60kHz/-1dB
Controls	Input gain, Compressor and Limiter, High Pass Filter, Power
Indicators	Input clip, Output level, Gain reduction, Power
Power Supply	24V DC, 1A external adaptor
Audio Press Box APB-008 SB-EX
Type	Expander
Groups	1
Inputs	1
Input connectors	ballanced, XLR
Ouputs	8x Line/MIC level
Output connectors	ballanced, XLR-M connector
Transfomer isolated outputs	Yes (each output)
Nominal Output level	MIC: -20dBu ; LINE: +6 dBu
Output Impedance	MIC: 220Ω ; LINE: 600Ω
