AudioPressBox
APB-320 C-D-USB
Professional portable, active, press box with 2 Analog Mic/Line inputs, 1 Dante input, 1 Digital USB-C input & output. 16 Analog XLR Mic/Line & 4 Digital USB-C outputs. Phones out. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable accu pack and heavy duty Nanuk case. The USB-C also allows a video conference in & out connection for a hybrid press conference.
- 2 Analog MIC (phantom power) / LINE inputs – balanced with gain control and 26dB PAD
- 1 Channel DANTE Input - RJ45 ethercon
- 1 Digital USB-C input & output
- 16 Analog XLR balanced and individually transformer isolated outputs
- XLR outputs are switchable between MIC or LINE output level
- 4 Digital USB-C outputs
- Built-in Compressor and Limiter for Analog (XLR) inputs
- Phones out
- Li-Ion AccuPack with microprocessor controlled battery management
- 20 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit
- On unit printed QR code for online access to manual, user guide and video guide
- AudioPressBox delivers audio in broadcast quality
Case colour variants
Default colour of the case is Black. If you wish to order it in different colour please specify that in order.
Blue
Yellow
Tan
Orange
Lime
Silver

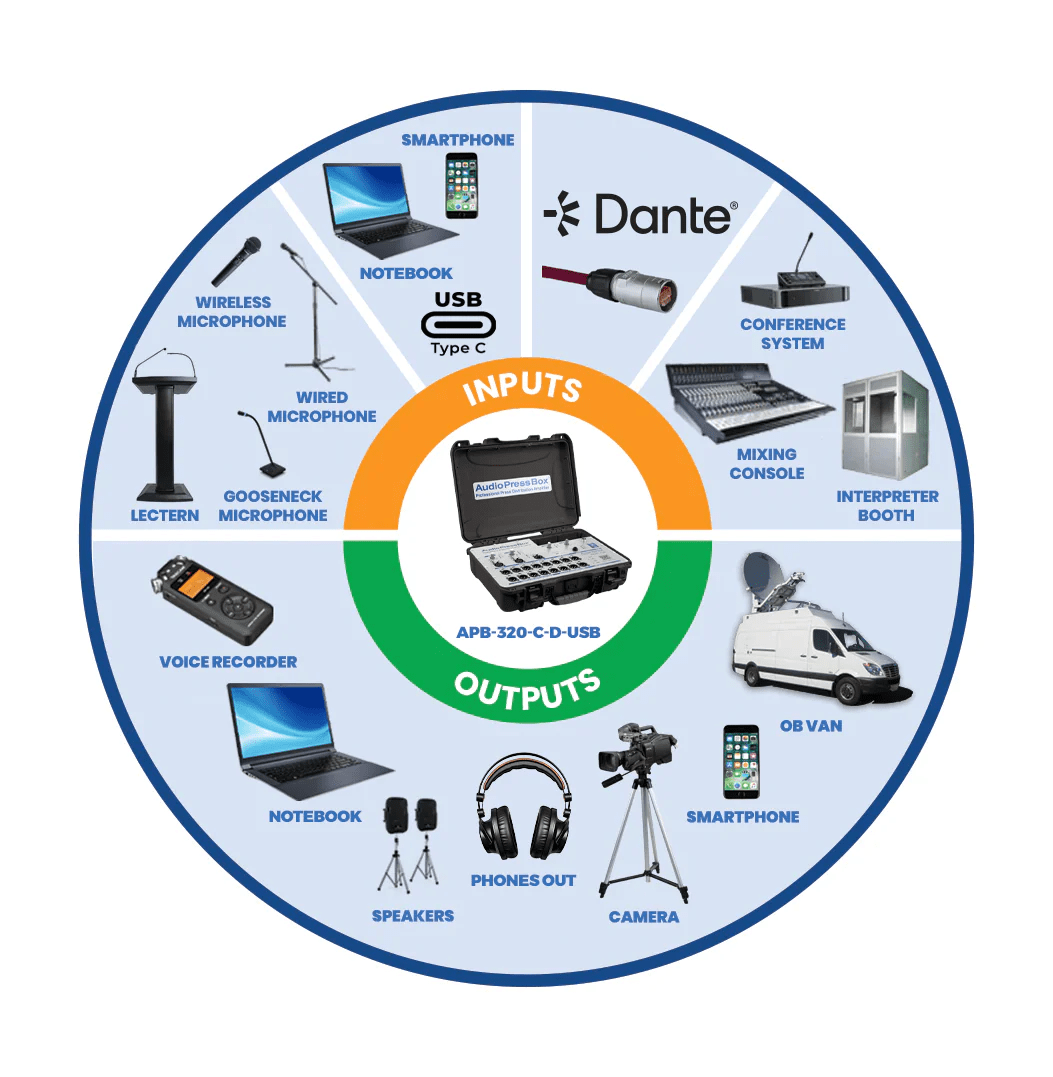

Ecosystem
Dante Controller
Watch for more details
Specification of APB-320 C-D-USB
| Type | 3 in 20 out |
| Groups | 1 |
| Input section | |
| Inputs | 2 analog, 1 Dante, 1 USB-C |
| Analog Inputs | |
| Input connectors | Balanced, XLR |
| Input Gain | Mic: +22/ +62dB ; Line: -4/ +36dB |
| Max. input level | Mic: -10/ -30dBu ; Line: +36/ -4dBu |
| Phantom Voltage | 48V |
| Input Impedance | Mic: 2,4 kΩ ; Line: 3,5 kΩ |
| Digital Input/ Output | |
| USB Input | |
| Input connector | USB Type C |
| Compliant USB Specificaion | USB 2.0 |
| Input Gain | -∞/ +6 dB |
| Supported Sampling Rates | 32kHz, 44.1kHz, 48kHz |
| Bit Depth | 16-Bit |
| Interface Powering: | Bus Powered* |
| Charging capability: | No |
| Dante Input | |
| Number of channels | 1 |
| Input connectors | RJ45 - Dante |
| PoE Requirement | No |
| Reference level | -18dBFS |
| Output section | |
| Analog Outputs | |
| Headphone output | JACK 6,3mm |
| Outputs | 16 Analog with Line/ MIC level, 4 Digital |
| Output connectors | Balanced, XLR |
| Nominal Output Level | +6dBu |
| Maximum Output Level | +20dBu (no load) ; +14dBu (600Ω) |
| Output impedance | Mic: 220Ω ; Line: 600Ω |
| Transformer isolated outputs | Yes (each output) |
| SNR | 86dB |
| Frequency Response | 120Hz to 30kHz/ -3dB |
| Digital Outputs | |
| Output connector | USB Type C |
| Compliant USB Specification | USB 2.0 |
| Supported Sampling Rates | 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz |
| Bit Depth: | 16-Bit |
| Interface Powering: | Bus powered* |
| Charging capability: | No |
| Controls | |
| Input section | 26dB PAD, Input gain, Phantom, Analog/ Dante switch |
| Output section | Phones level, Power switch, Output PAD |
| Indicators | |
| Input section | Phantom power, Input level, Dante Input |
| Power | |
| Power Supply | 24V DC, 1A external adaptor |
| Battery | Li-Ion, 14,4V 2200mAh |
| Battery operation time | up to 14 hours |
| Mechanical | |
| Dimensions (WxHxD) | 370x 120x 300mm |
| Weight | 5100 g |
Applications
Block diagram
