AudioPressBox

APB-116 SB

Active, Portable, 1x LINE Input, 16 Line/MIC Outputs, internal AccuPack 10 hours

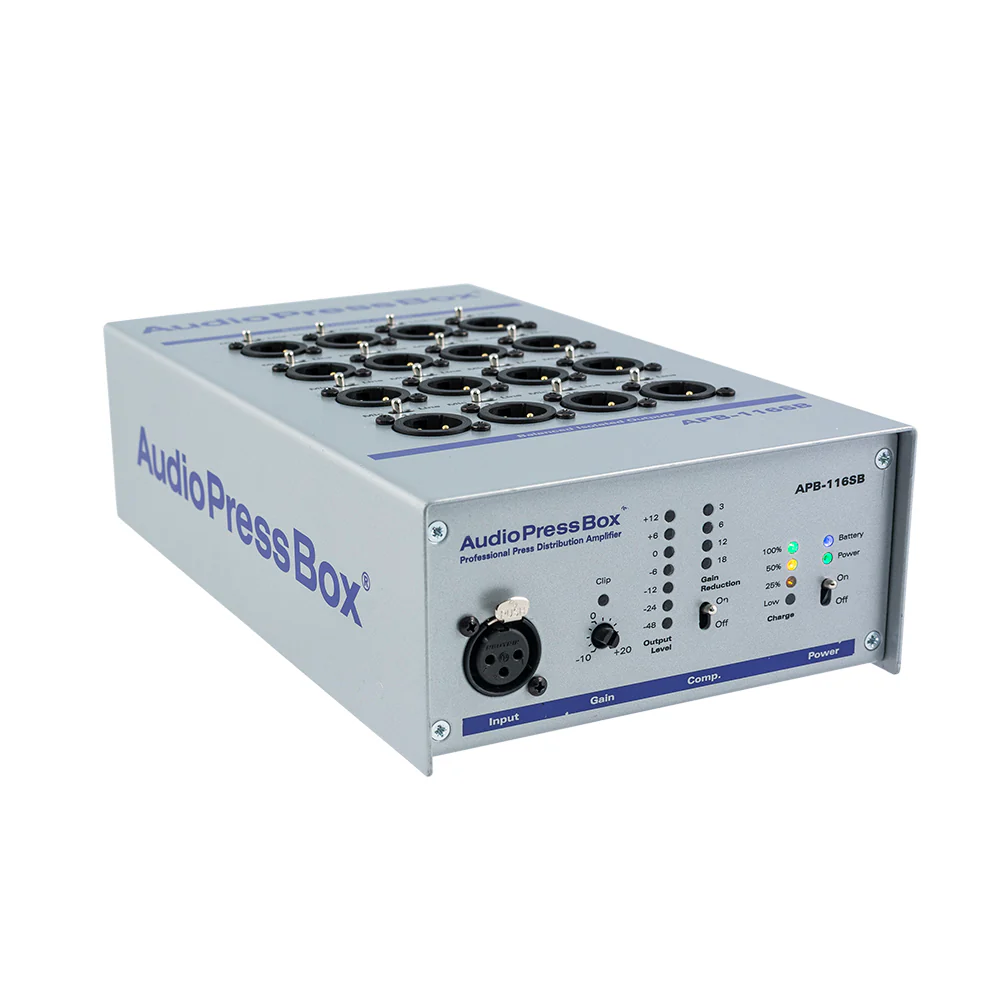

A professional portable active press box (Audio Splitter) suitable for both indoor and outdoor press conferences.
It features 1 Line Input and 16 Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.
The APB-116 SB also includes a rechargeable AccuPack so it can run on its own up to 10 hours.

1x LINE Input – balanced with ajustable gain -10db to +20 dB

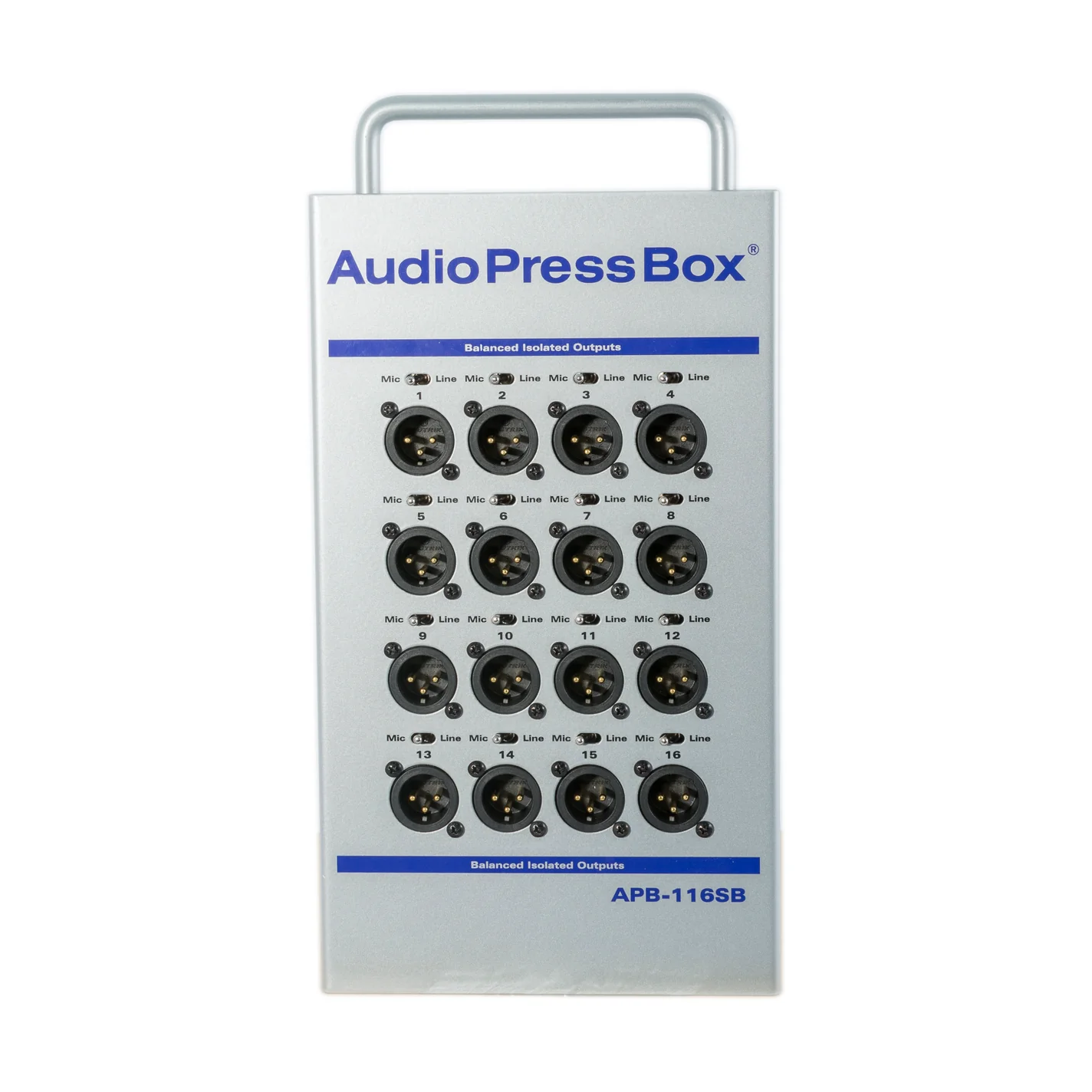

16 High quality independent transformer balanced and isolated outputs
Each Output is switchable between MIC or LINE level
Built in High-Pass filter on the frequency of 40Hz
Switchable Compressor and Limiter for Input channel
Nominal Output level is selectable -6 dBu, 0 dBu, +4 dBu and +6 dBu
Li-Ion AccuPack with microprocessor controlled battery management
10 hour full load capacity. Note: AccuPack is placed inside the unit
AudioPressBox delivers audio in broadcast quality

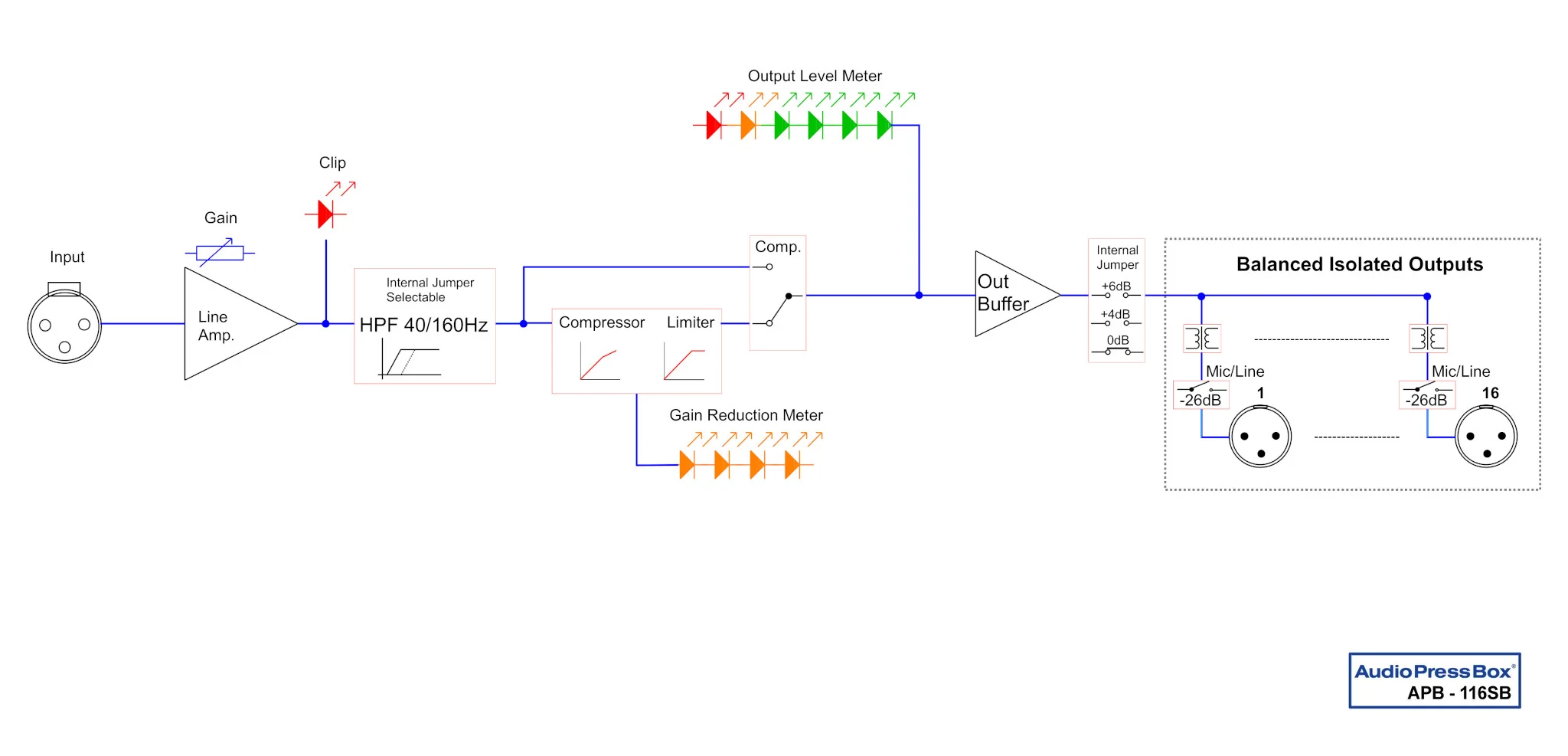

Features

HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.

COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.

Transformer Separately transformer isolated outputs.

Rechargeable batteries Optional Built-in Li-Ion battery pack with microprocessor controlled battery management, 10 hour working time at full load. No self-discharge and memory effect, always ready to use. Short charging time compared to conventional batteries.

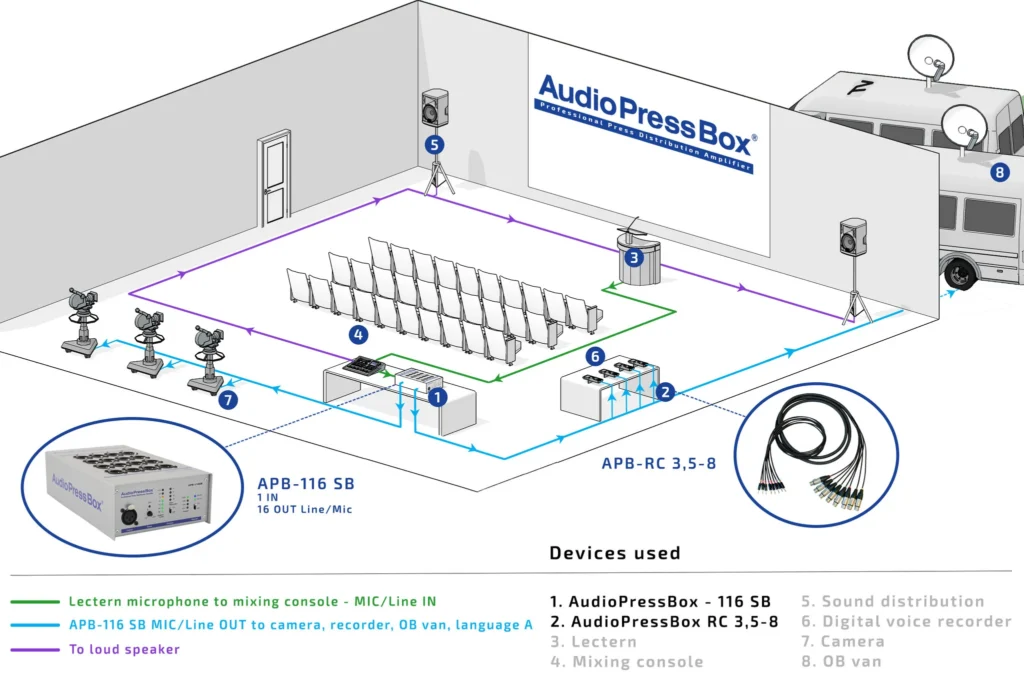

Applications

Specification of APB-116 SB

Type	1 in16 out - portable
Groups	1
Input section
Inputs	1
Input connectors	Balanced, XLR
Max. input level	Limiter ON: Mic: -10/-30dBu Line: +36/-4dBu Limiter OFF: Mic: -2/-42dBu Line: +24/-16dBu
Phantom Voltage	48V
Input Impedance	Mic: 2,4 kOhm ; Line: 3,5 kOhm
Output section
Outputs	16 Line/MIC leve
Output connectors	Balanced, XLR

Output section
Outputs	16 Line/MIC level
Output connectors	Balanced, XLR
Nominal Output Level -	-6/0/+4/+6 dBu
Max. Output Level	+20dBu (no load) +16dBu (600kOhm)
Output impedance	Mic: 220 Ohm ; Line: 600 Ohm
Transformer isolated outputs	Yes (each output is Independant Transformer Isolated)
SNR	86dB at 0dB Gain 78dB at +20dB Gain
Frequency Response	30/160Hz (filter) to 60kHz/-1dB

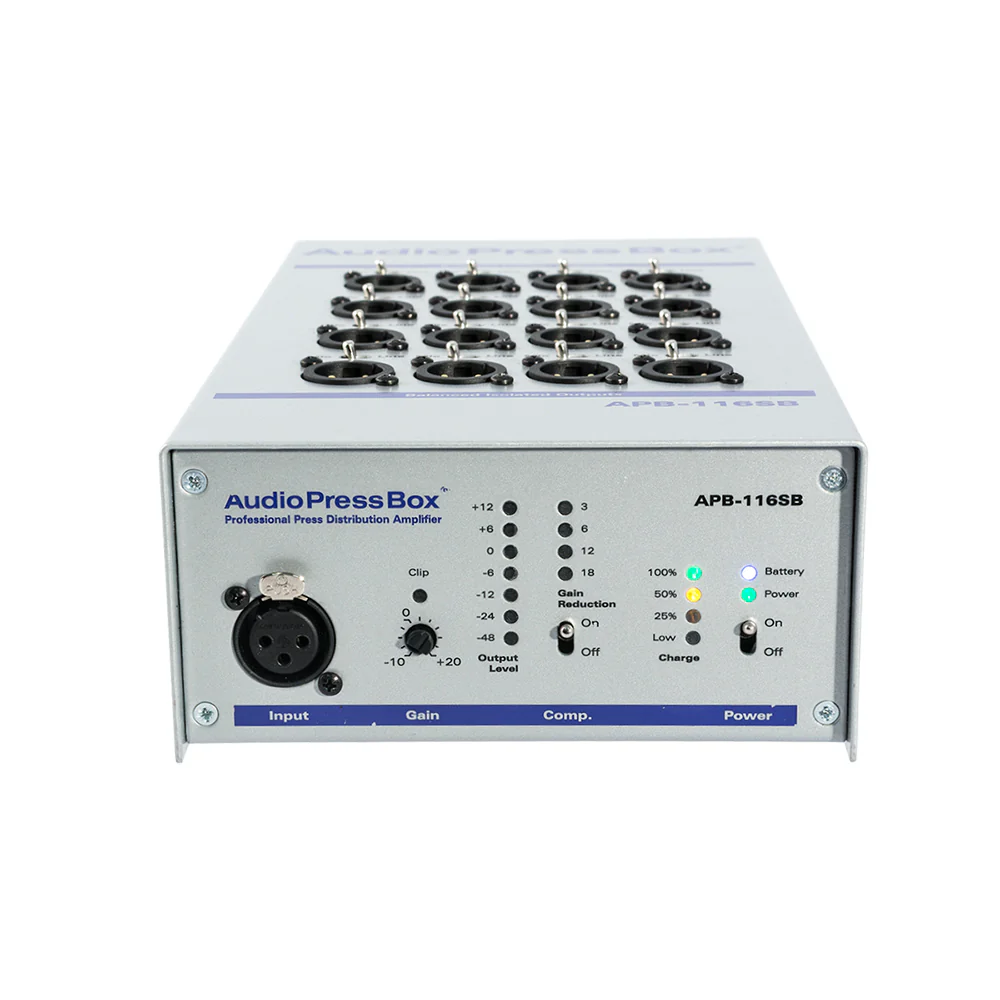

Controls	Input gain, Compressor,Power, Output PAD
Indicators	Input clip, Output level, Gain reduction, Power, Battery status

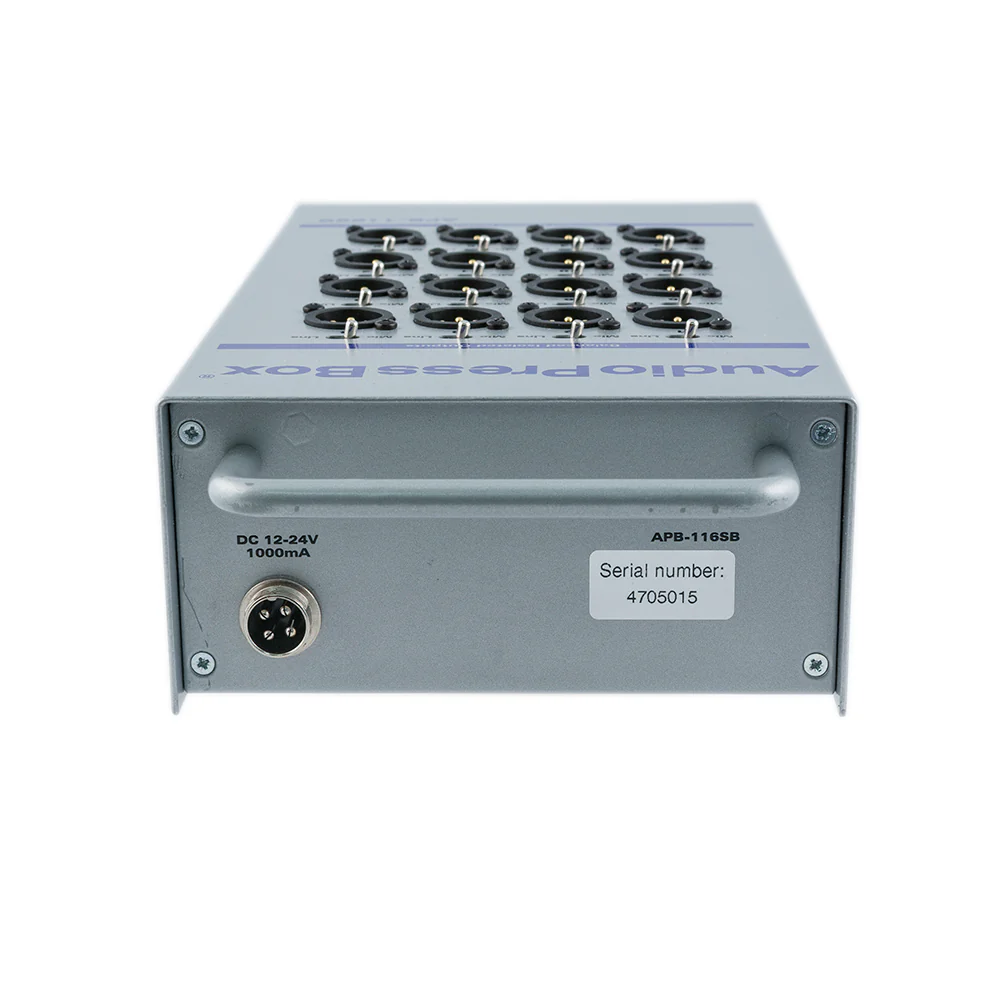

Power Supply	24V DC, 1A external adaptor
Battery	Li-Ion, 7.2V 2200mAh, operation time 10 hours
Dimensions (WxHxD)	150x295x75mm
Weight	2920 g
