AudioPressBox
APB-P112 SB
Passive, 1x LINE Input, 12x MIC Outputs
A professional portable passive press box (Audio Splitter) suitable for both indoor and outdoor press conferences.
It features 1 Line Input and 12 MIC outputs.
Each Output is independet transformer balanced and isolated.

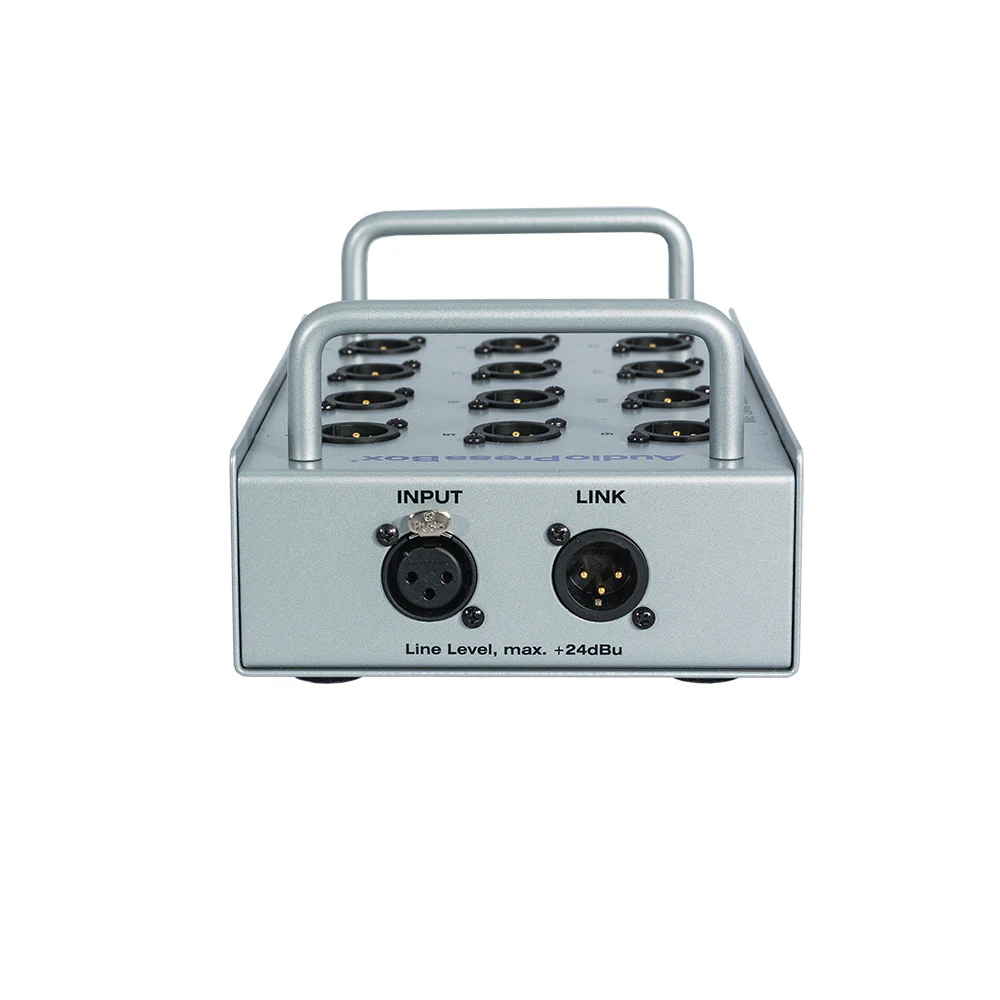

It also has a link Output so you can daisy chain more of them in a row if you need additional MIC Outputs.
- 1 balanced LINE Input

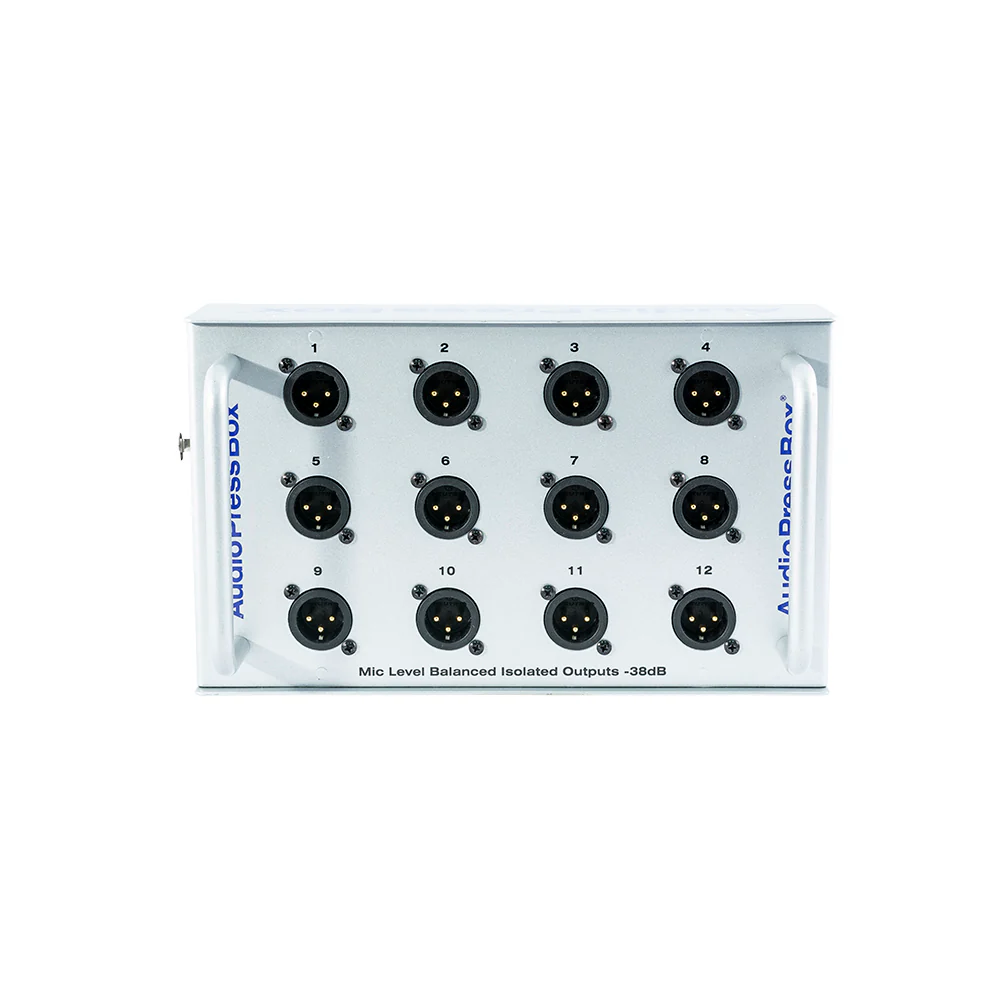

- 12 High quality balanced Outputs, each Output is independent transformer isolated
- AudioPressBox delivers audio in broadcast quality
- It can be fed directly by a mixing console
- Source: Balanced Line Output of professional audio equipment
Watch for more details

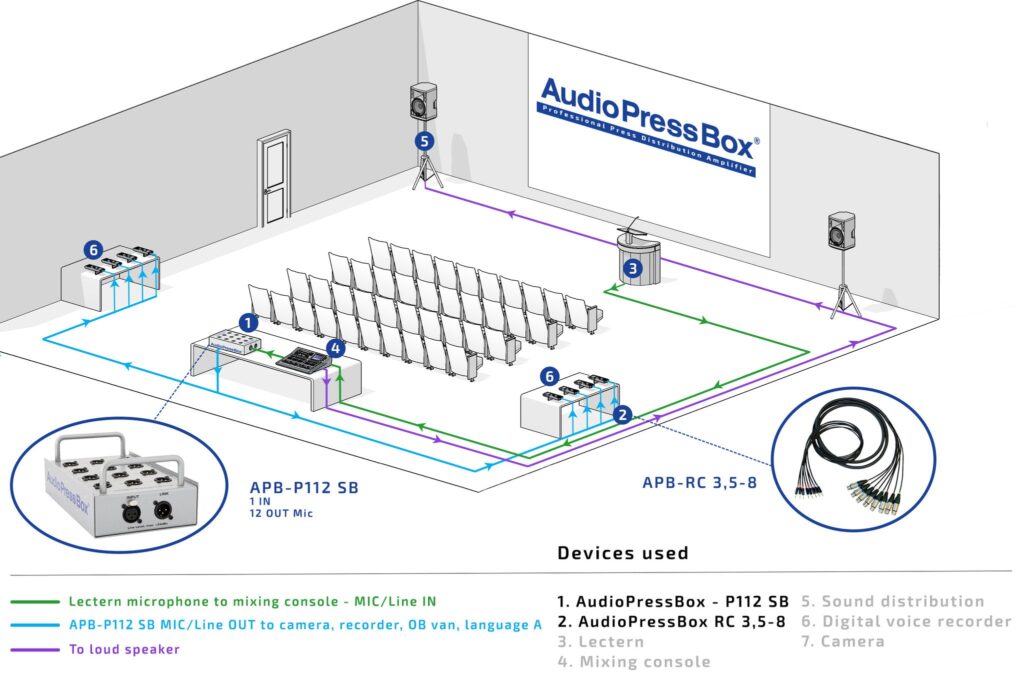

Applications
Specifications of APB-P112 SB
| Type | 1 in 12 out |
| Groups | 1 |
| Inputs | 1 |
| Input connectors | ballanced, XLR |
| Max. input level | Line: +24dBu |
| Input Impedance | 2,5kOhm |
| Ouputs | 12 MIC level (-38dBu) 1 Input link (Line level) |
| Ouput connectors | ballanced, XLR-M connector |
| Transfomer isolated outputs | Yes (each output) |
| Nominal Output level | -38dBu (0dBu on the input) |
| Maximum Output level | -14dBu (no load) -20dBu (150 Ohm) |
| Output Impedance | 150 Ohm |
| Frequency Response | 10Hz to 30kHz/-1dB |
| Dimensions (WxHxD) | 225x135x95 mm |
| Weight | 1860g |

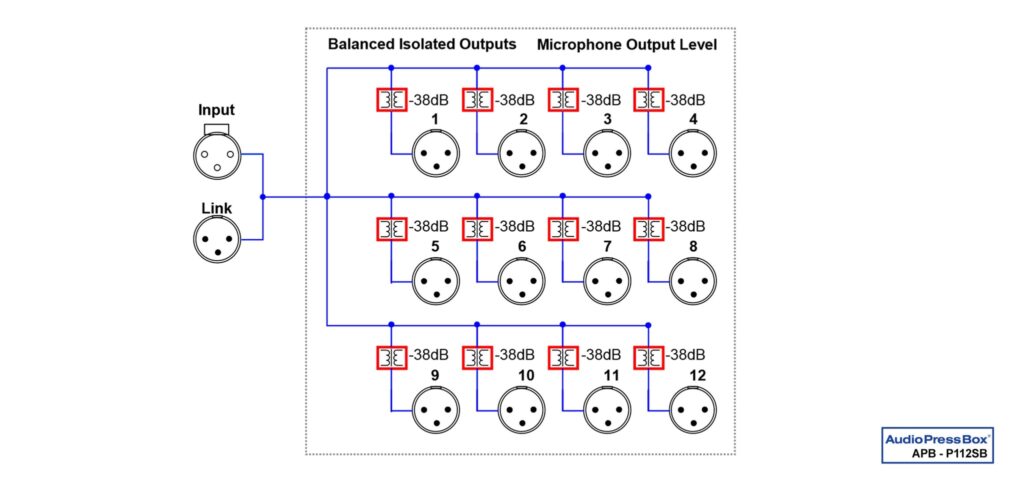

Block diagram
