- 8 High quality balanced Outputs, each Output is independent transformer isolated
Note: Source: Balanced Line Output of professional audio equipment.
 |
Transformer Separately transformer isolated outputs. |
Press conference with a mixing console and speakers:

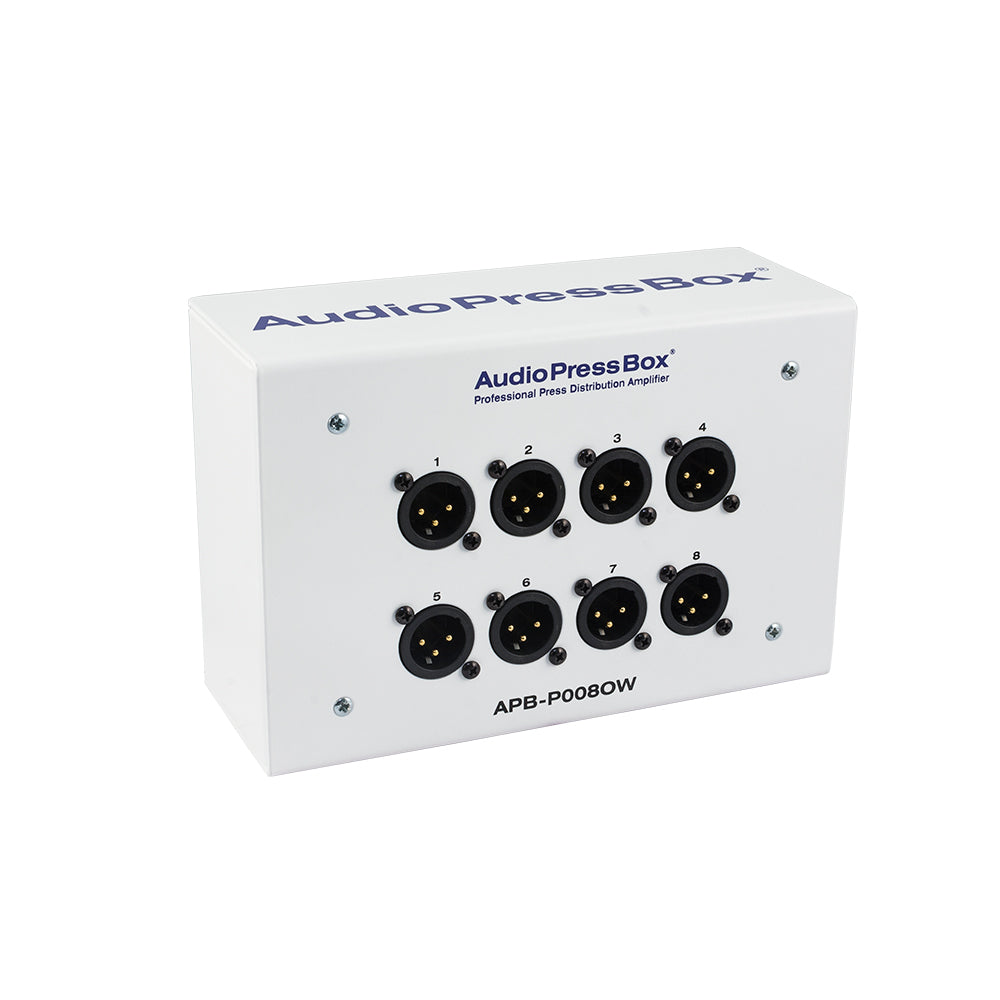

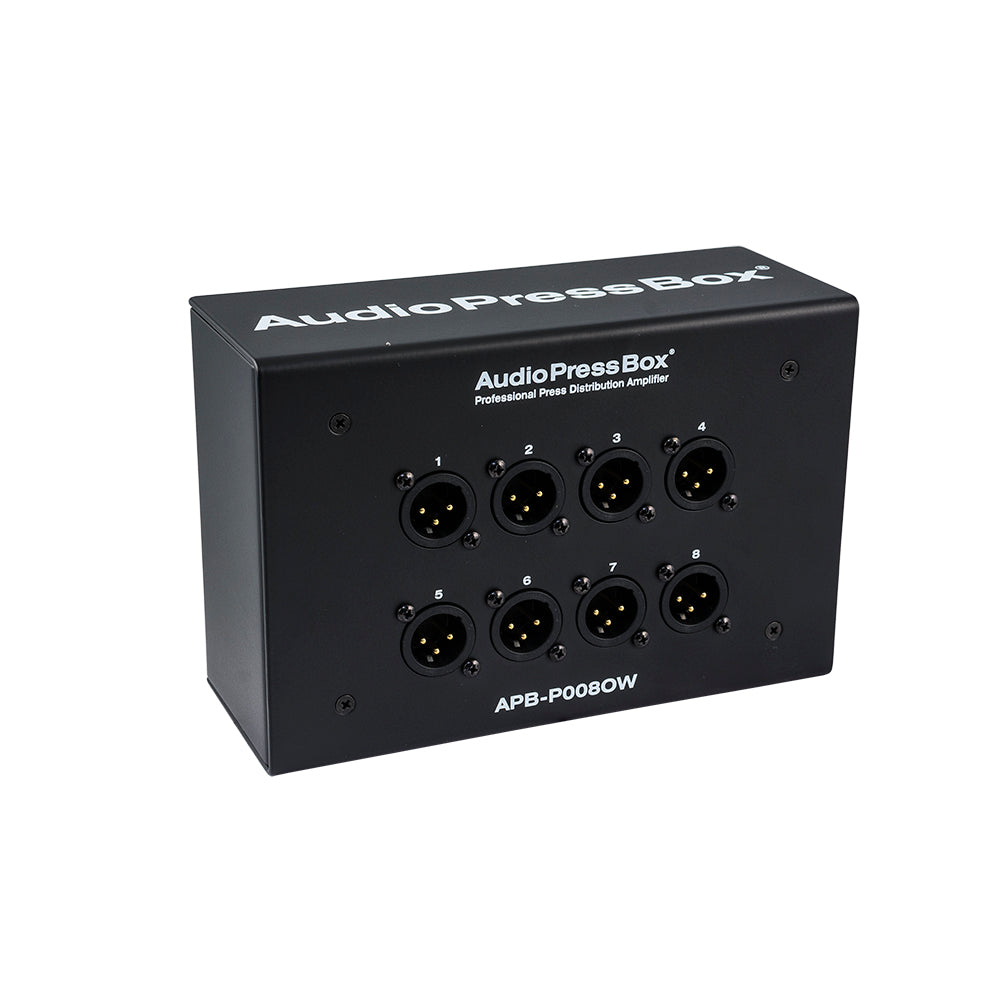

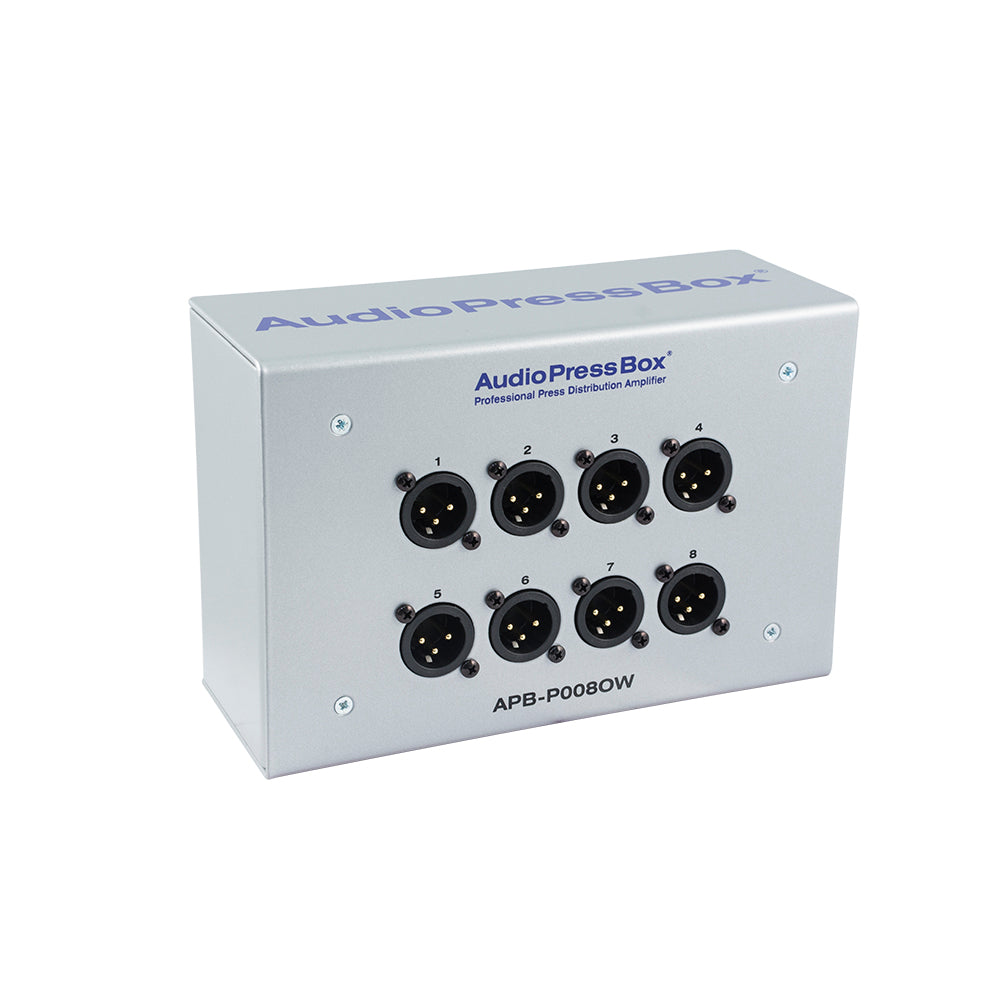

| Audio Press Box APB-P008 | |
|---|---|
| Type | Expander |
| Groups | 1 |
| Inputs | 1 |
| Input connectors | ballanced, 3-pin phoenix connector |
| Max. input level | Line: +24dBu |
| Input Impedance | 2,5kOhm |
| Ouputs | 8 MIC level (-38dBu), 1 Input link (Line level) |
| Ouput connectors | ballanced, XLR-M connector |
| Transfomer isolated outputs | Yes (each output) |
| Nominal Output level | -38dBu (0dBu on the input) |
| Maximum Output level | -14dBu (no load) -20dBu (150 Ohm) |
| Output Impedance | 150 Ohm |
| Frequency Response | 10Hz to 30kHz/-1dB |
| Dimensions (WxHxD) | 180x120x70mm |
| Weight | 1690g |
APB-P008 OW-EX data sheet
download
APB-P008 OW-EX High Res Pictures [9.57 MB]
download
APB-P008 OW-EX AutoCad block schematic
download
APB-P008 OW-EX StarDraw block schematic
more info
APB-P008 OW-EX manual
more info
Accessories
If you wish to have a specific AudioPressBox of this type - Colour, number of inputs / outputs please let us know! You will be contacted as soon as possible within 24 hours.
