AudioPressBox

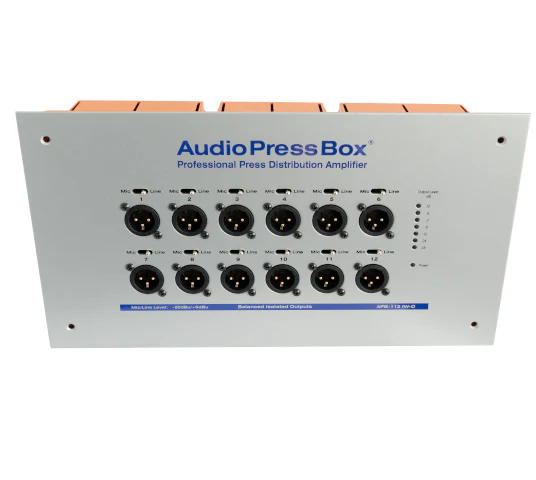

APB-112 IW-D
Professional, in wall, active, AudioPressBox unit with 1 channel DANTE input and 12 LINE/Mic outputs. It is powered via PoE so you need only 1 cable for the signal and power. The easy install allows for quick setup.
- 1 channel DANTE input - RJ45
- 12 high quality balanced and individually transformer isolated outputs
- Each Output is switchable between MIC or LINE output level
- The unit is powered only via PoE from DANTE network
- Thanks to DANTE patching you can easily expand number of channels or number of outputs by adding other APB-112 IW-D
- The package also contains the scame flush mounting box
- AudioPressBox delivers audio in broadcast quality
Watch for more details
Ecosystem
Dante Controller
Applications
Specification of APB-112 IW-D
| Type | 1 In 12 Out |
| Groups | 1 |
| Input section | |
| Inputs | 1 |
| Input connectors | RJ45 - Dante |
| Output section | |
| Outputs | 12 Line/MIC level |
| Output connectors | Balanced, XLR |
| Nominal Output Level | +6dBu (front outputs) |
| Maximum Output Level | +20dBu (no load) ; +14dBu (600Ohm) |
| Output impedance | Mic: 220 Ohm ; Line: 600 Ohm |
| Individually transformer isolated outputs | Yes (each output) |
| SNR | >70 dB |
| Frequency Response | 25Hz to 20kHz/-3dB |
| Indicators | Output level, Power |
| Power Supply | PoE (Type 1, Class 3 (12,95W)) |
| Dimensions (WxHxD) | 280x138x50mm |
| Weight | 2750 g |
Block diagram
