AudioPressBox APB-008-IW-EX-US-DETAIL panel closeup
Product Preview

Handle

AudioPressBox
APB-008 IW-EX-US

A professional press box (Audio Splitter) expander featuring 8 Line/MIC outputs designed for system integrators for fixed installation with compatible NEMA box. Independet transformer balanced and isolated outputs are divided to channel A and channel B so it can also be used for bilingual conferences. It has 2 inputs with 3-pin phoenix connectors, one for each Output channel. The expander must be fed with an APB-Drive unit in order to function properly.

  • 8 High quality balanced Outputs, each Output is independent transformer isolated
  • Each Output is switchable between LINE or MIC Output level
  • 2 internal Output Groups: 4x Output A and 4x Output B
  • AudioPressBox delivers audio in broadcast quality
Where to buy
Request a quote

Easy installation

Individually transformer isolated outputs

Mic/Line inputs and Mic/Line outputs

Easy to use

US standard NEMA Box

TAA Compliant

AudioPressBox delivers audio in broadcast quality

Ecosystem

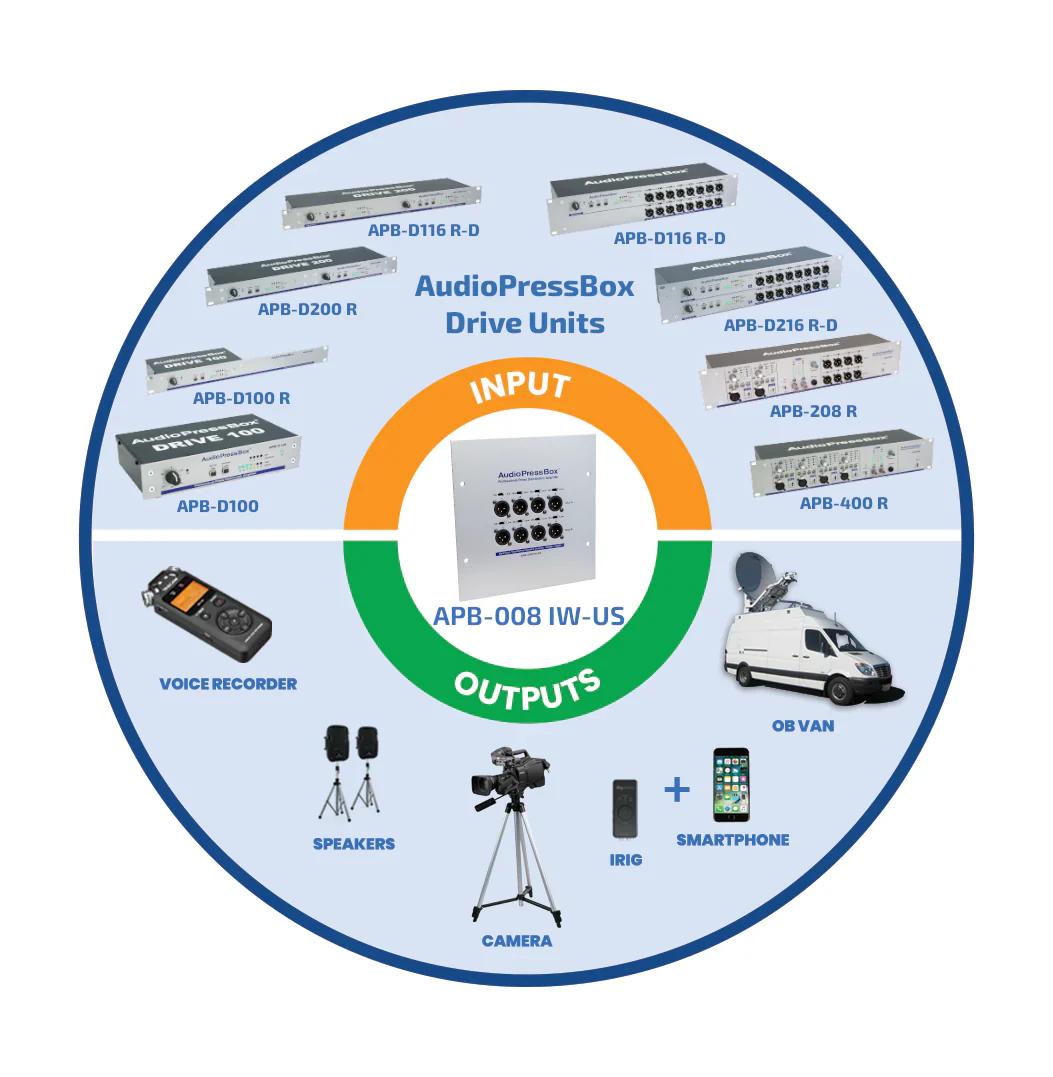

AudioPressBox APB-008-IW-EX-US-ECOSYSTEM ecosystem — typical inputs and outputs for press audio distribution

Applications

AudioPressBox APB-008-IW-EX-US-APPLICATION in use — press audio distribution for media and broadcast

Specification of APB-008 IW-EX-US

TypeExpander
Groups2
Input section
Inputs1x Bus A ; 1x Bus B
Input connectorsBalanced, 3-pin phoenix connector
Output section
Outputs4x Bus A, Line/MIC level ; 4x Bus B, Line/MIC level
Output connectorsBalanced, XLR-M connector
Nominal Output LevelMIC: -20dBu ; LINE: +6 dBu
Output impedanceMic: 220Ω ; Line: 600Ω
Transformer isolated outputsYes (each output)
Mechanical
Dimensions (WxHxD)214 x 214 x 65mm
Weight1400g
Compatible NEMA box884

Block diagram

Block Digram AudioPressBox APB-008 IW-EX-US — typical balanced isolated outputs for press audio distribution

Downloads

Data sheet

APB-008 IW-EX-US

Download

High Res Pictures

APB-008 IW-EX-US

Download
