AudioPressBox APB-112 IW-D-USB-US Analog Dante USB-C product view cover
Product Preview

Handle

AudioPressBox
APB-112 IW-D-USB-US

Professional, in wall, active, AudioPressBox unit with 1 channel DANTE input, 8 LINE/Mic outputs and 4 USB-C outputs. It is powered via PoE so you need only 1 cable for the signal and power. The easy install with compatible Nema box allows for quick setup.

  • 1 channel DANTE input - RJ45
  • 8 high quality balanced and individually transformer isolated outputs
  • 4 Digital USB-C outputs
  • Each XLR Output is switchable between MIC or LINE output level
  • The unit is powered only via PoE from DANTE network
  • Thanks to DANTE patching you can easily expand number of channels or number of outputs by adding other APB-112 IW-D-US or APB-112 IW-D-USB-US units
  • AudioPressBox delivers audio in broadcast quality
Where to buy
Request a quote

USB-C outputs

Dante

Easy installation

Individually transformer isolated outputs

Mic/Line outputs

PoE

Easy to use

US standard NEMA Box

TAA Compliant

AudioPressBox delivers audio in broadcast quality

Watch for more details

Ecosystem

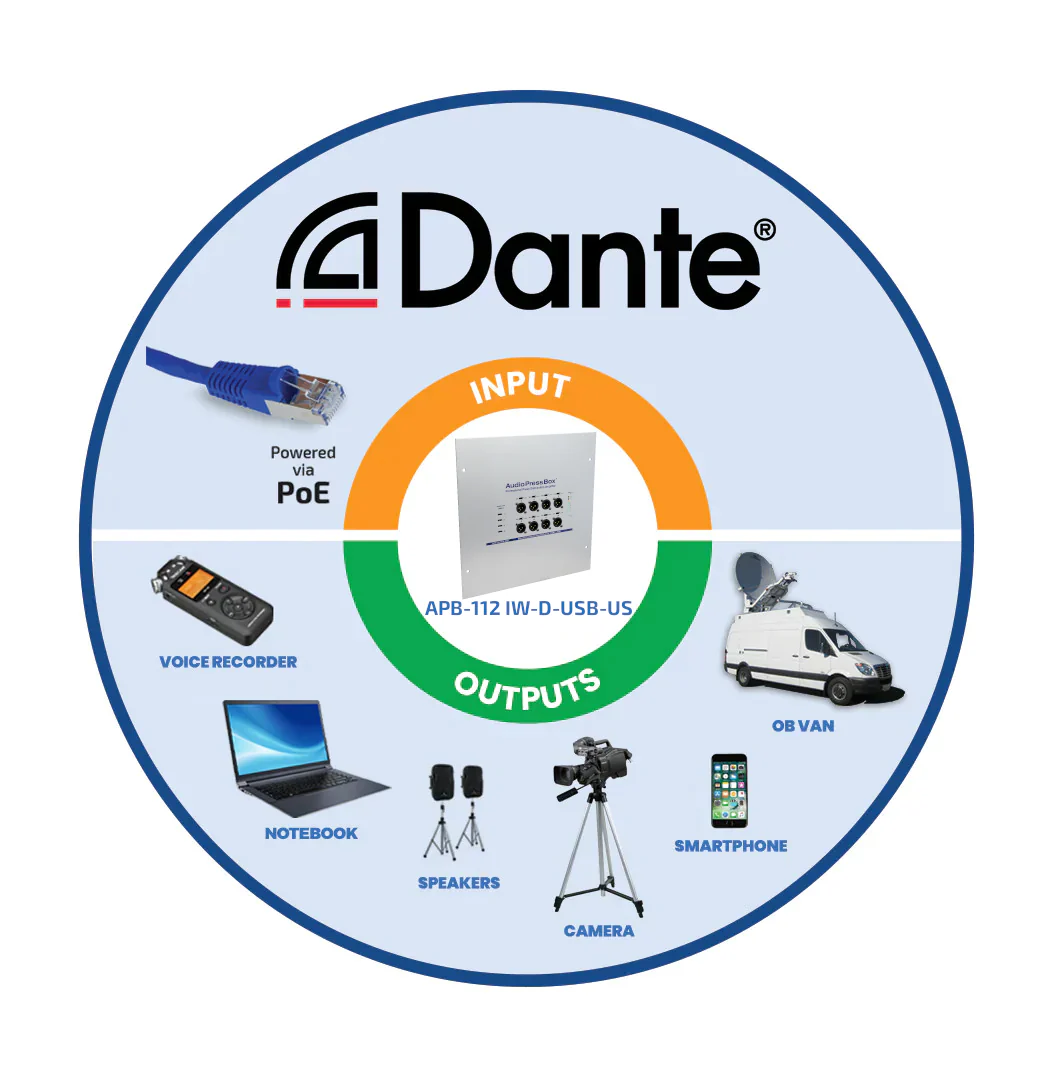

AudioPressBox APB-112-IW-D-USB-US-ECOSYSTEM ecosystem — typical inputs and outputs for press audio distribution

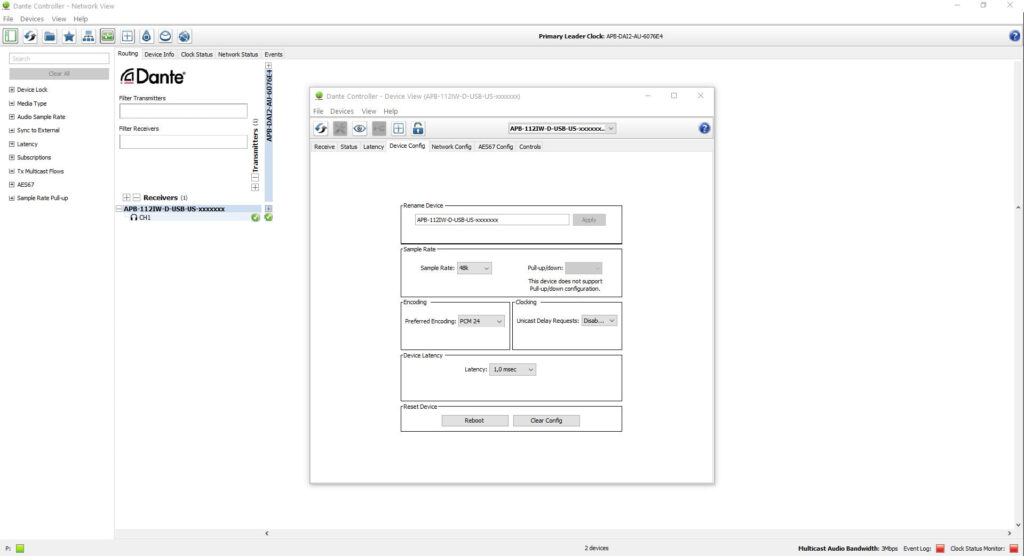

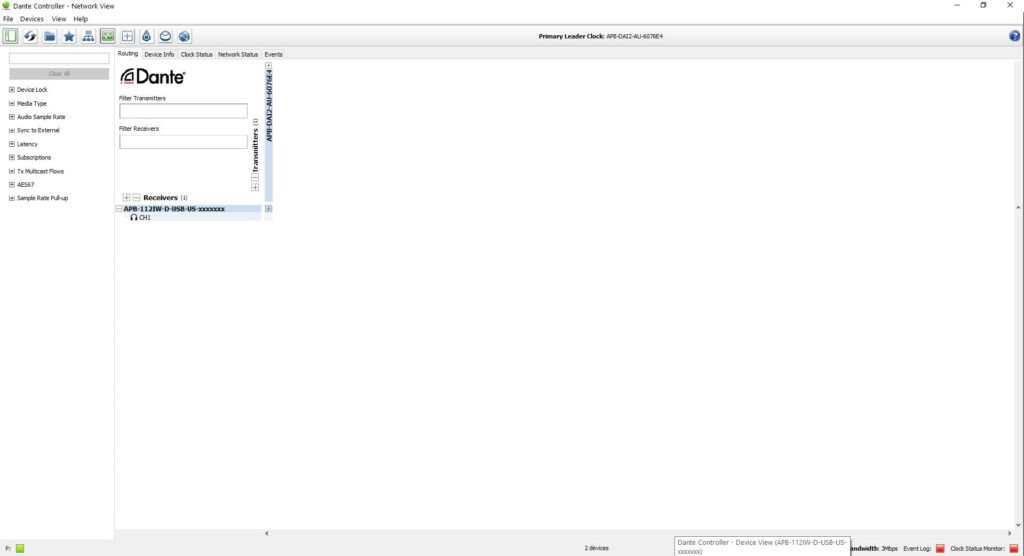

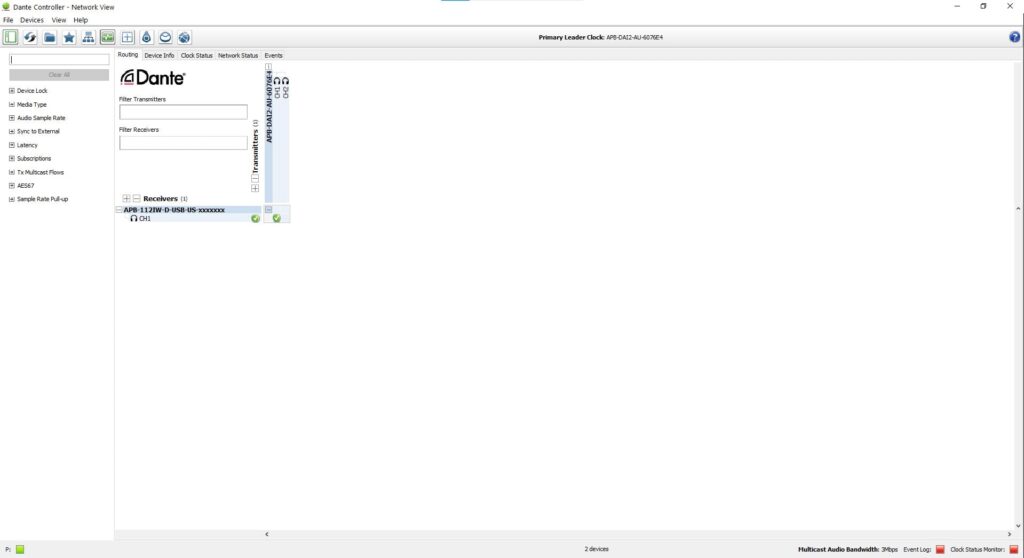

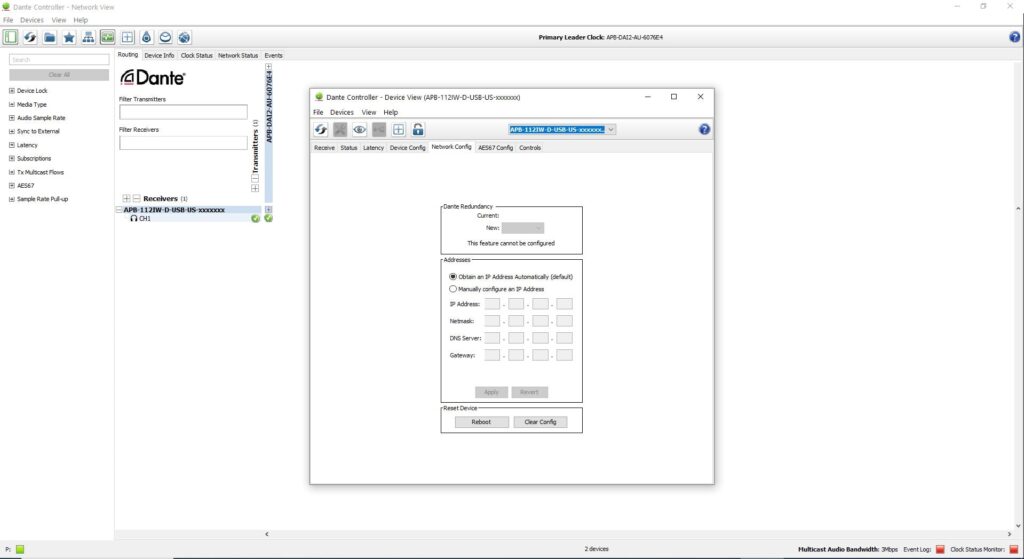

Dante Controller

Applications

AudioPressBox APB-112-IW-D-USB APPLICATION in use — press audio distribution for media and broadcast

Specification of APB-112 IW-D-USB-US

Type1 In 12 Out
Groups1
Input section
Inputs1
Input connectorsRJ45 - Dante
PoE RequirementYES
Reference level-18dBFS
Output section
Analog Outputs
Outputs8 Line/MIC level
Output connectorsBalanced, XLR
Nominal Output Level+6dBu (front outputs)
Maximum Output Level+20dBu (no load) ; +14dBu (600Ohm)
Output impedanceMic: 220 Ohm ; Line: 600 Ohm
Transformer isolated outputsYes (each output)
SNR>70 dB
Frequency Response25Hz to 20kHz/-3dB
Digital Outputs
Outputs4x USB Type C
Compliant USB SpecificationUSB 2.0
Supported Sampling Rates8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz
Bit Depth16-Bit
Interface PoweringBus powered (from connected USB host device)
Charging capabilityNo
Indicators
Output sectionOutput level, Power
Power
Power SupplyPoE (Type 1, Class 3 (12.95W))
Mechanical
Dimensions (WxHxD)320 x 320 x 45mm
Weight2700 g
Compatible NEMA box12124

Block diagram

Diagram: AudioPressBox APB-112-IW-D-USB-BLOCK signal flow — inputs routed to outputs and USB connections

Downloads

Data sheet

APB-112 IW-D-USB-US

Download

High Res Pictures

APB-112 IW-D-USB-US

Download

AutoCAD block drawing

APB-112 IW-D-USB-US

Download
