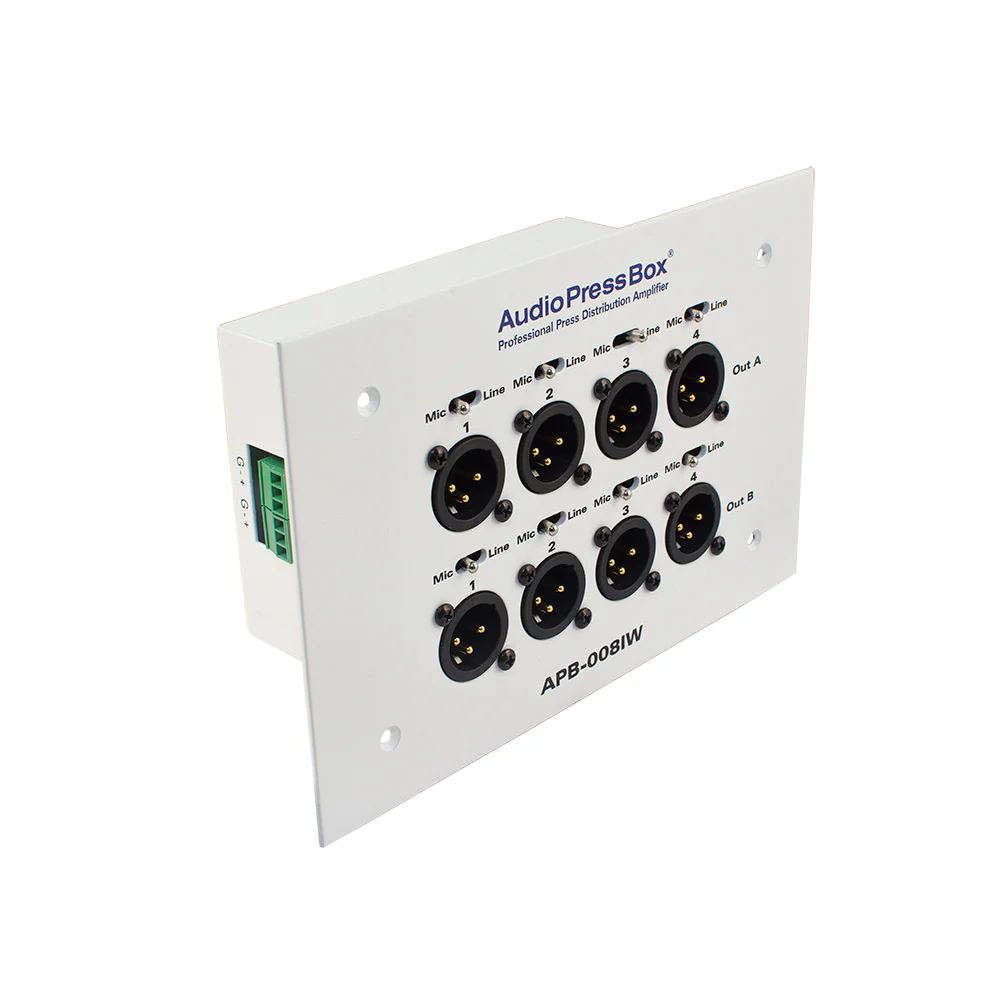

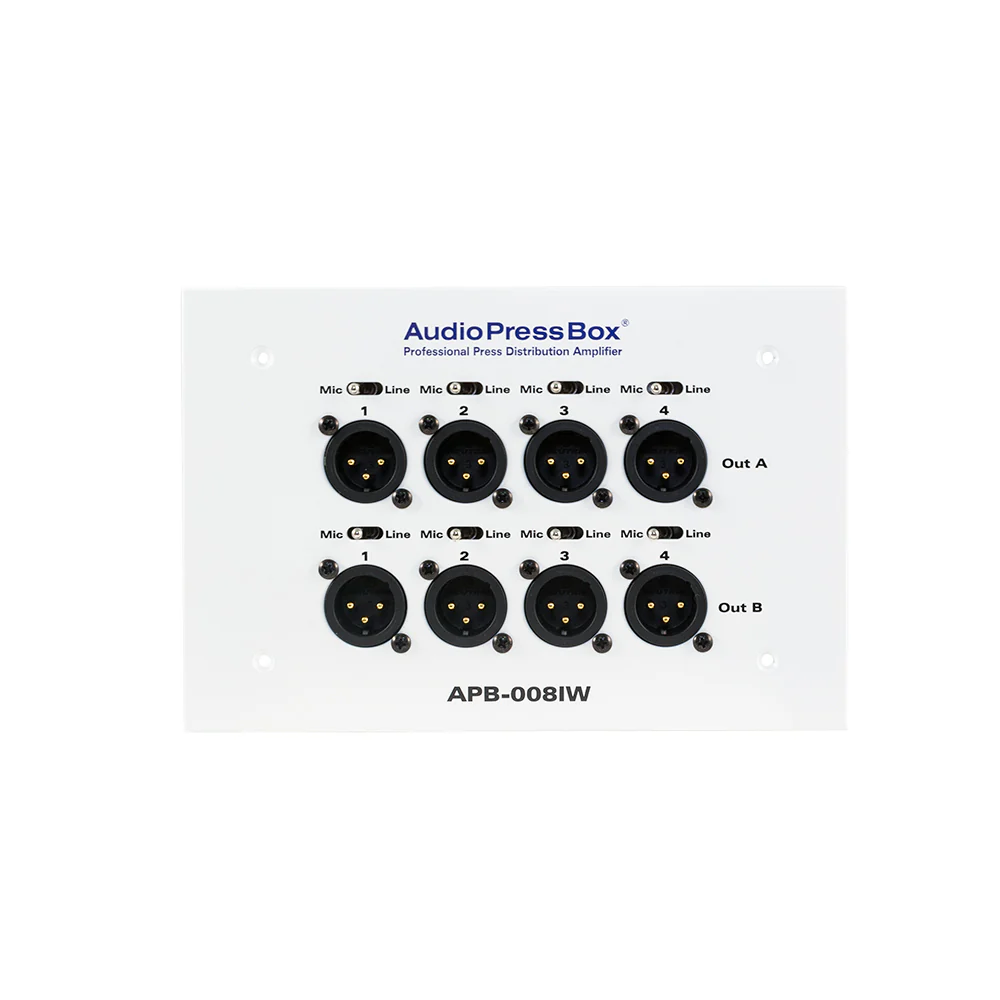

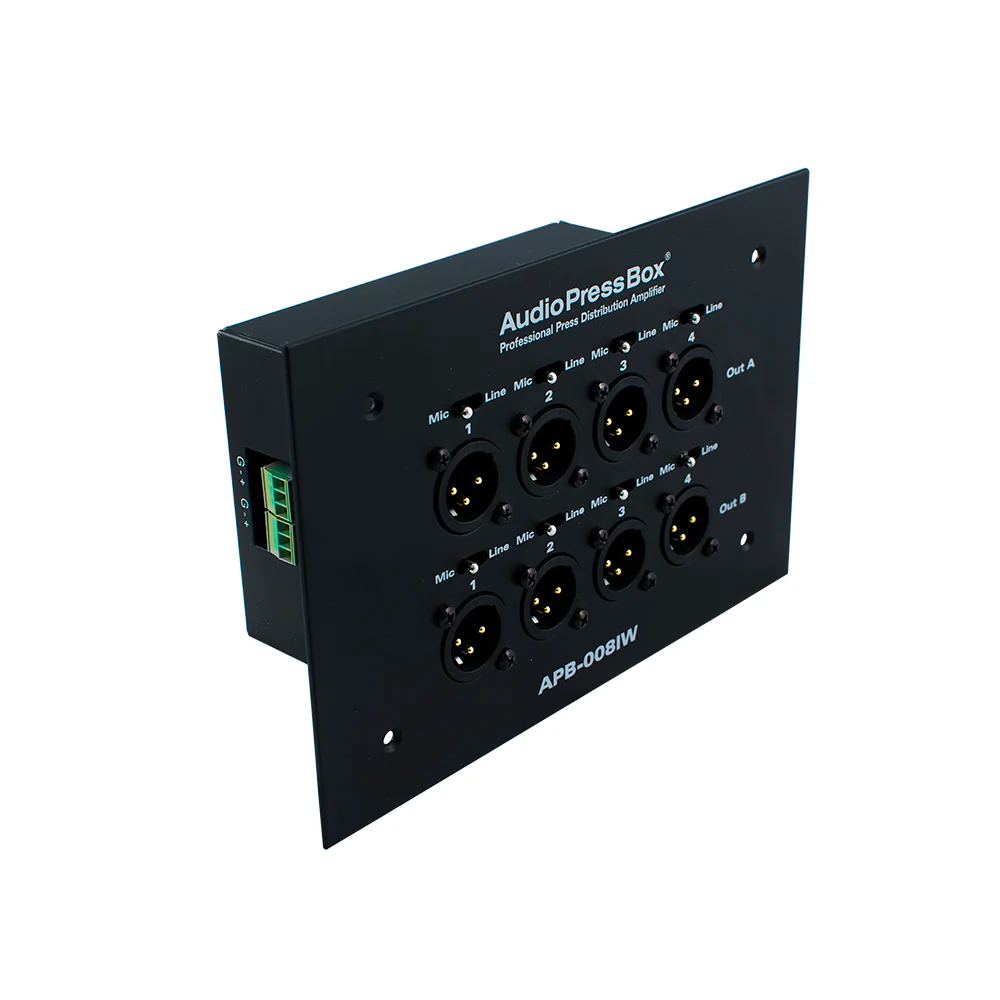

AudioPressBox APB Mini

APB-008 IW-EX

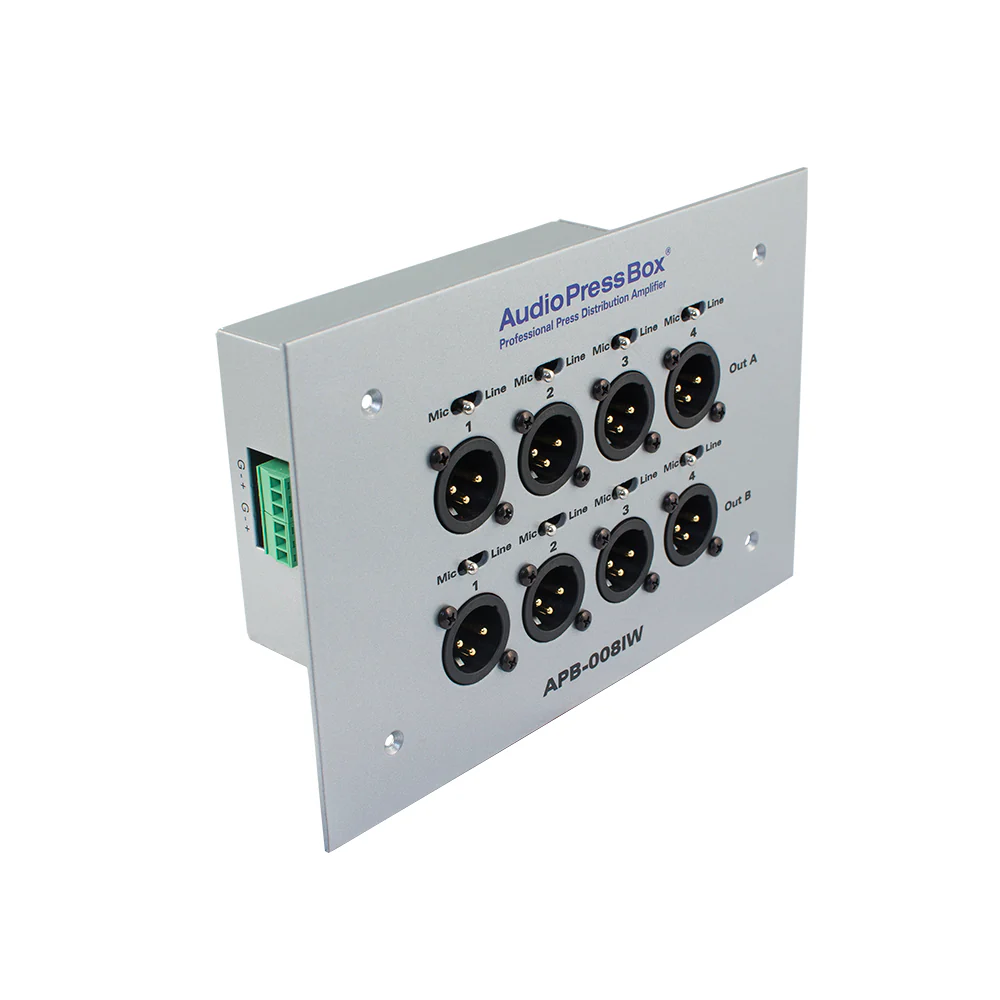

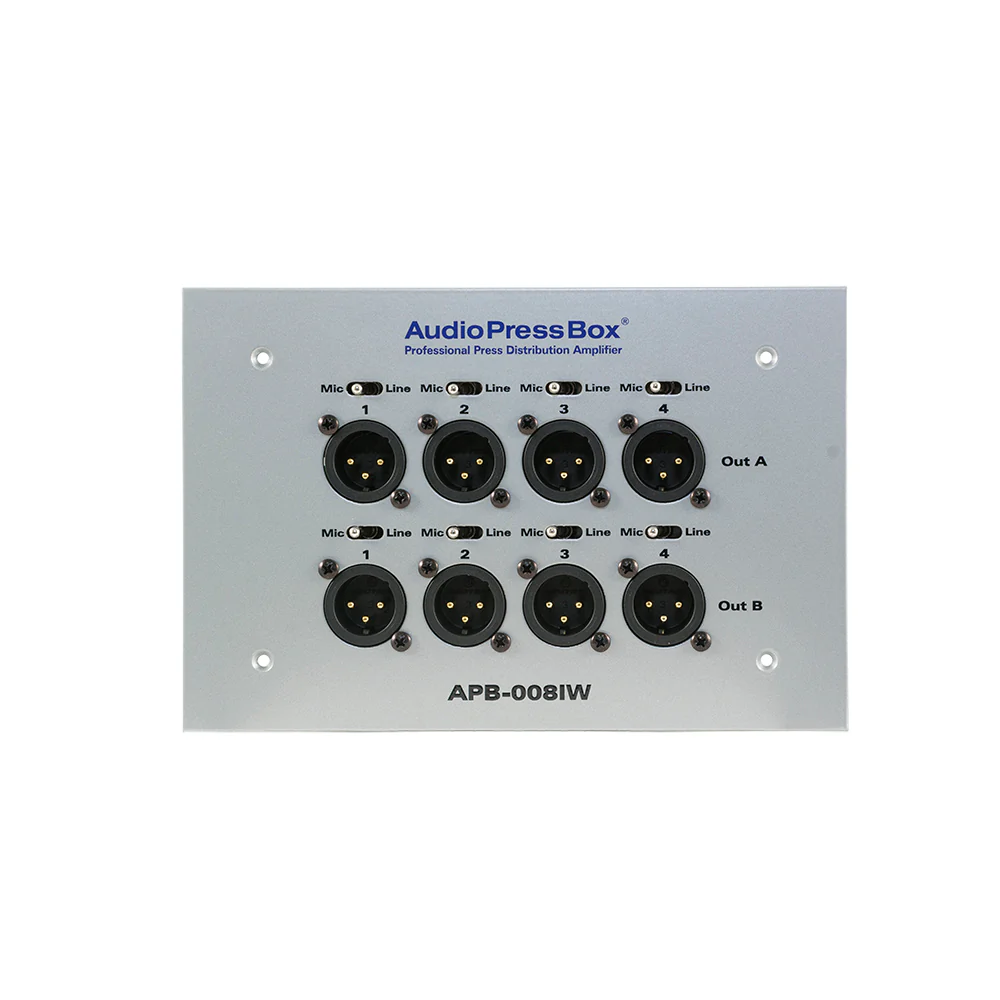

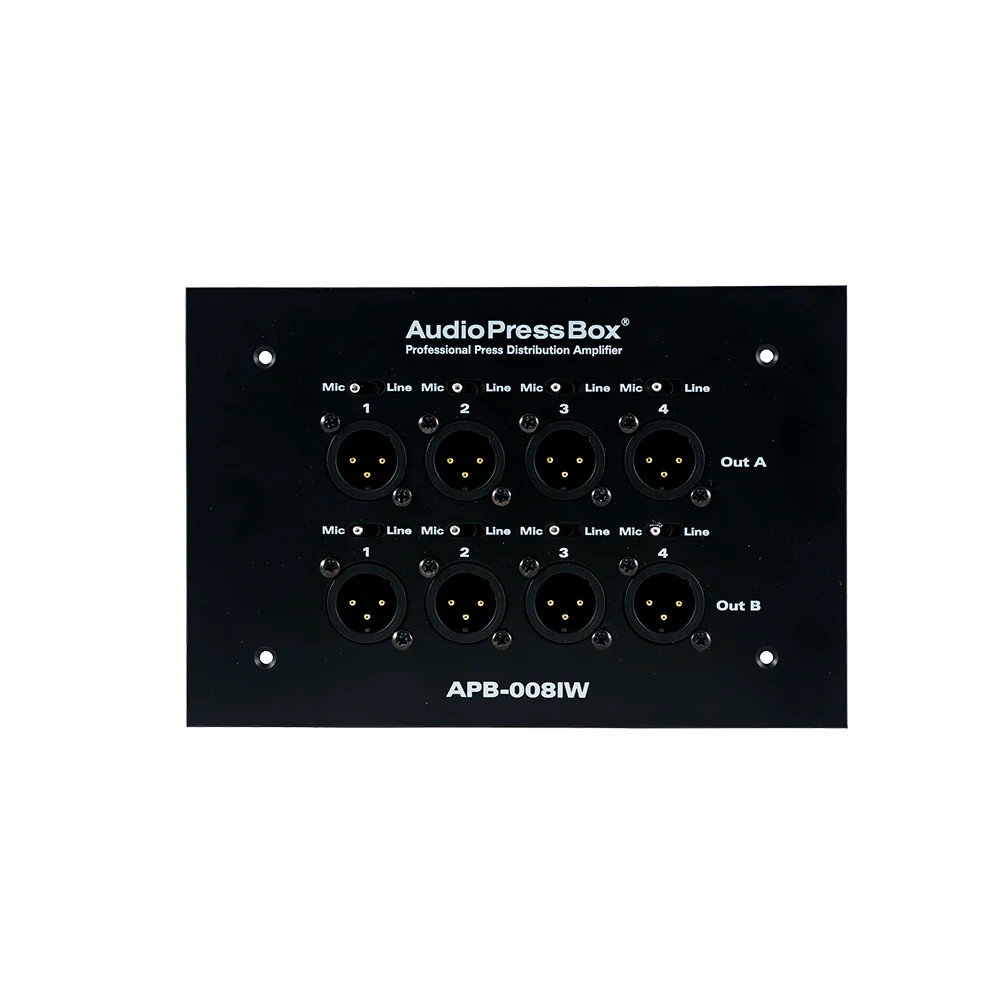

In wall 8 Line/MIC Outputs Expander

A professional press box (Audio Splitter) expander featuring 8 Line/MIC outputs designed for system integrators for fixed installation.
The IW stands for IN WALL as it is for flush mounting.
Outputs are divided to channel A and channel B so it can also be used for bilingual conferences.
Each Output is independet transformer balanced and isolated.
It has 2 inputs with 3-pin phoenix connectors, one for each Output channel.

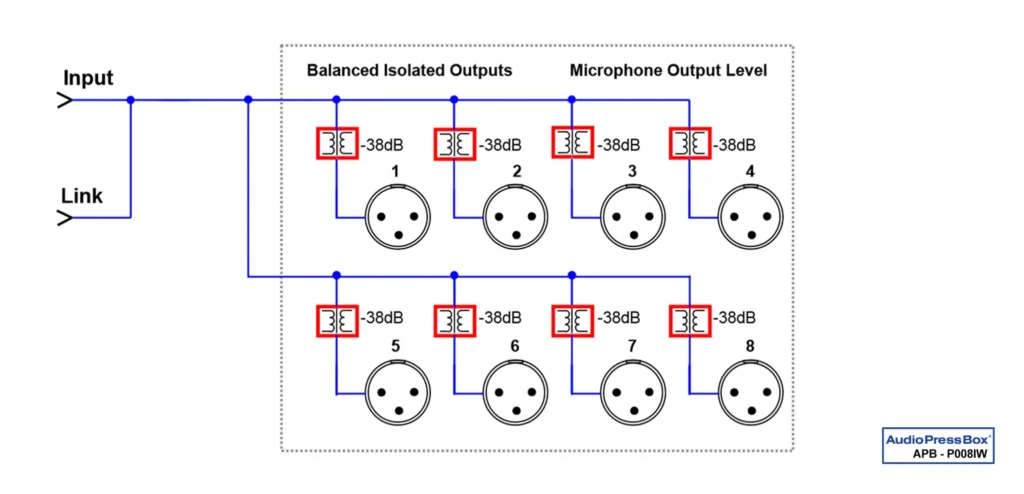

You can route each Input to Output Channel A or B or both via jumpers.

The expander must be fed with an APB-Drive unit in order to function properly.

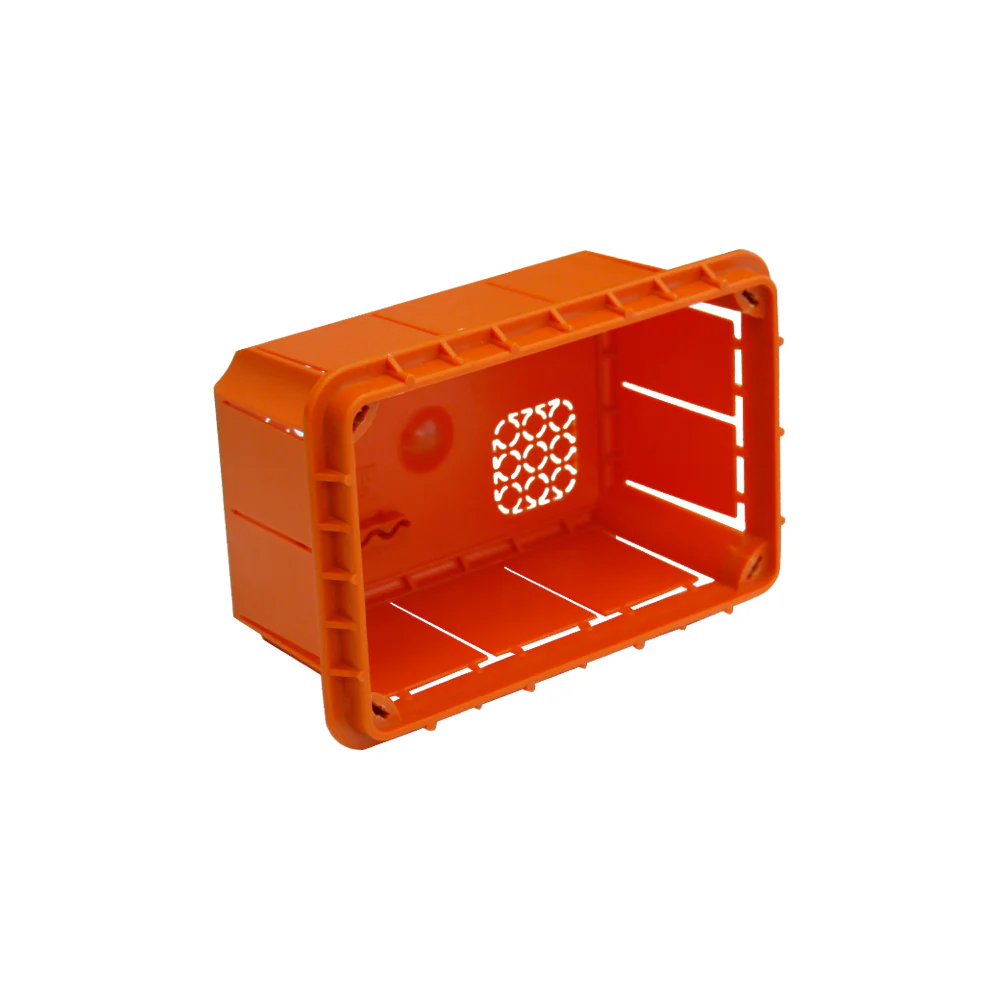

WBOX Series Flush mounting boxes – SCAME
Dimensions: 153x98x70mm
Net Weight: 0.123 kg
Colour: Orange

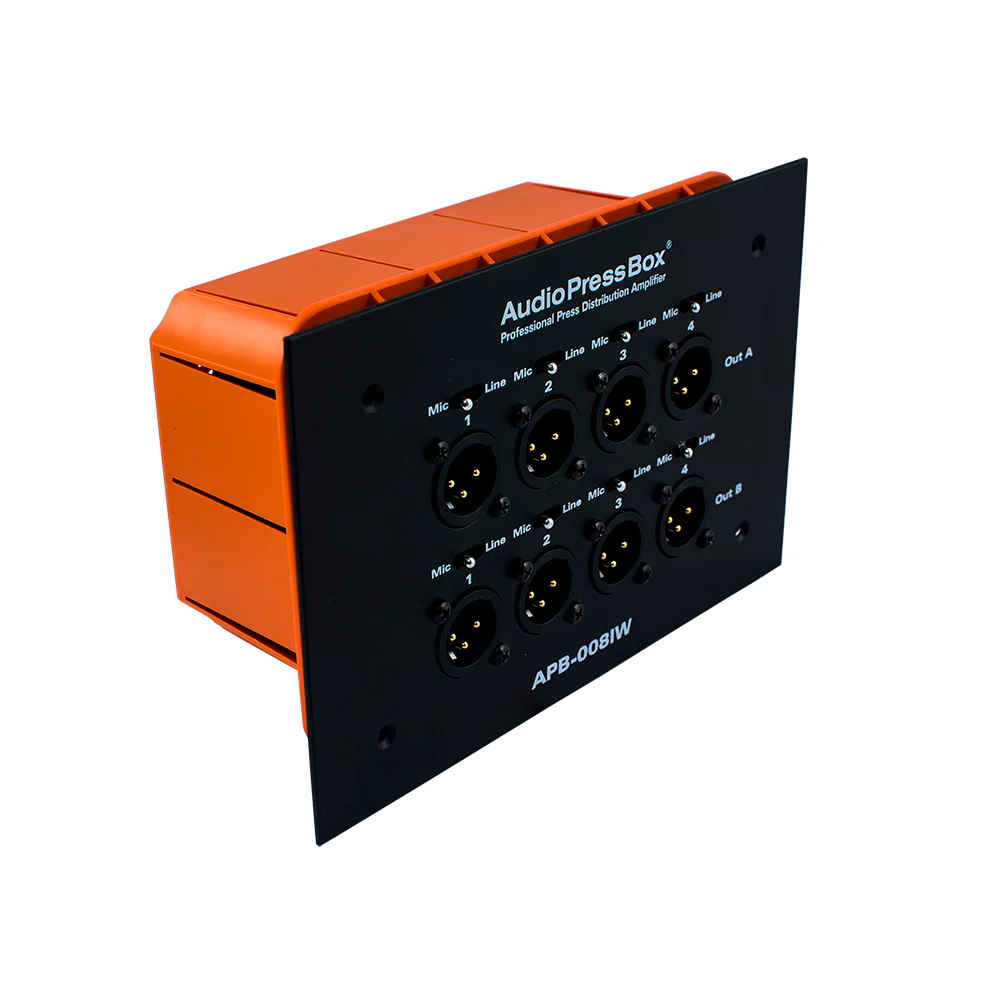

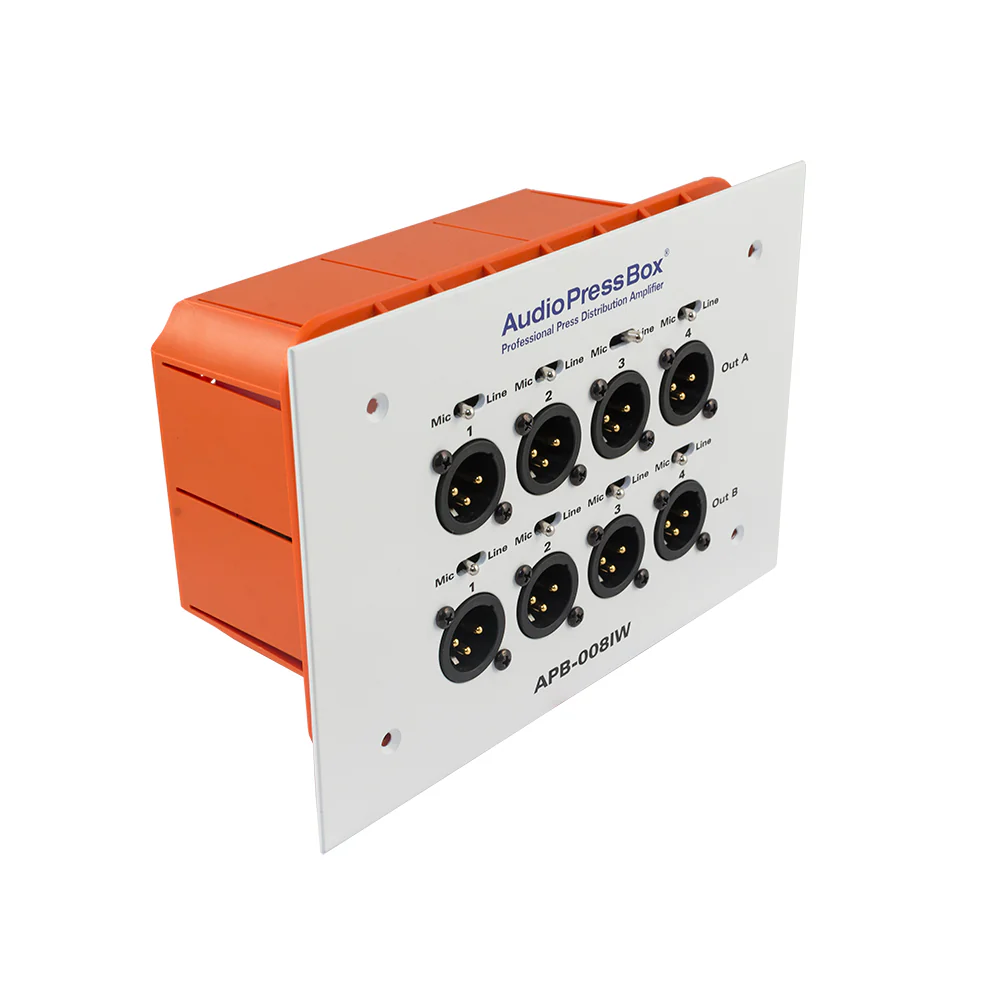

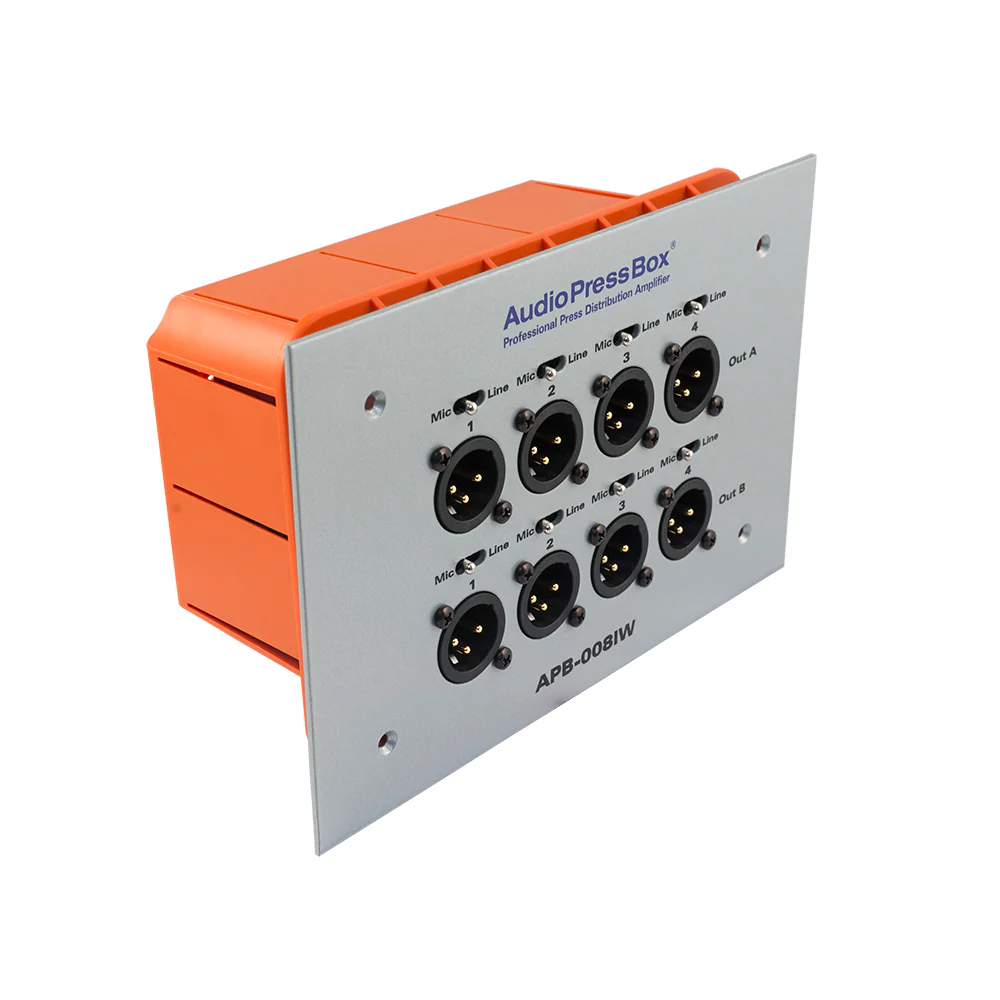

SCAME Flush mounting box is designed for system integrators for fixed installation together with our APB-008 IW-EX and or APB-P008 IW-EX.

Flush mounting junction box is included in the APB-008 IW-EX package.

It is also availaible in accessories section.

REQUIRES A DRIVE UNIT as a SOURCE: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R, APB-400 R

Watch for more details

Features

Transformer Separately transformer isolated outputs.

Applications

Specification of APB-008 IW-EX

Type	Expander
Groups	2
Inputs	1x Bus A; 1x Bus B
Input connectors	ballanced, 3-pin phoenix connector
Ouputs	4x Bus A, Line/MIC level 4x Bus B, Line/MIC level

Output connectors	ballanced, XLR-M connector
Transfomer isolated outputs	Yes (each output)
Nominal Output level	MIC: -20dBu ; LINE: +6 dBu
Output Impedance	MIC: 220Ω ; LINE: 600Ω

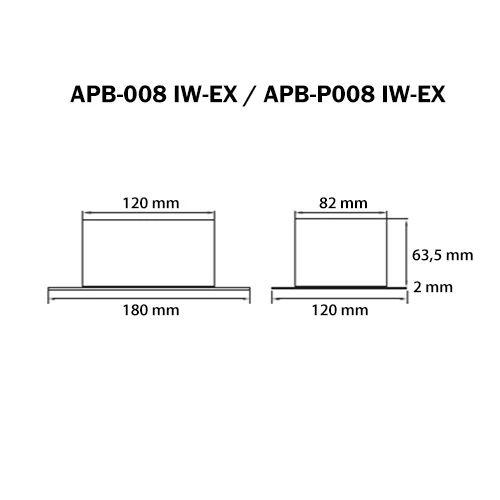

Dimensions (WxHxD)	180x120x63mm
Weight	970g
