AudioPressBox

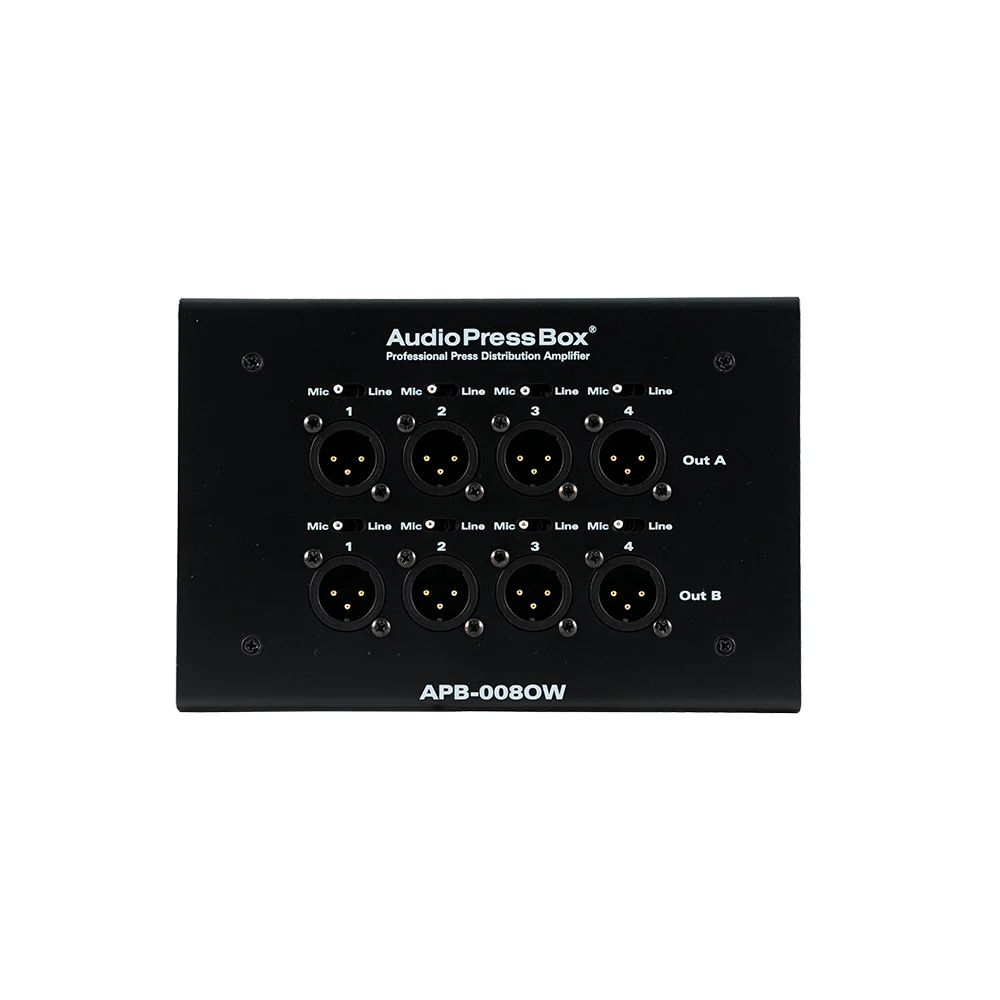

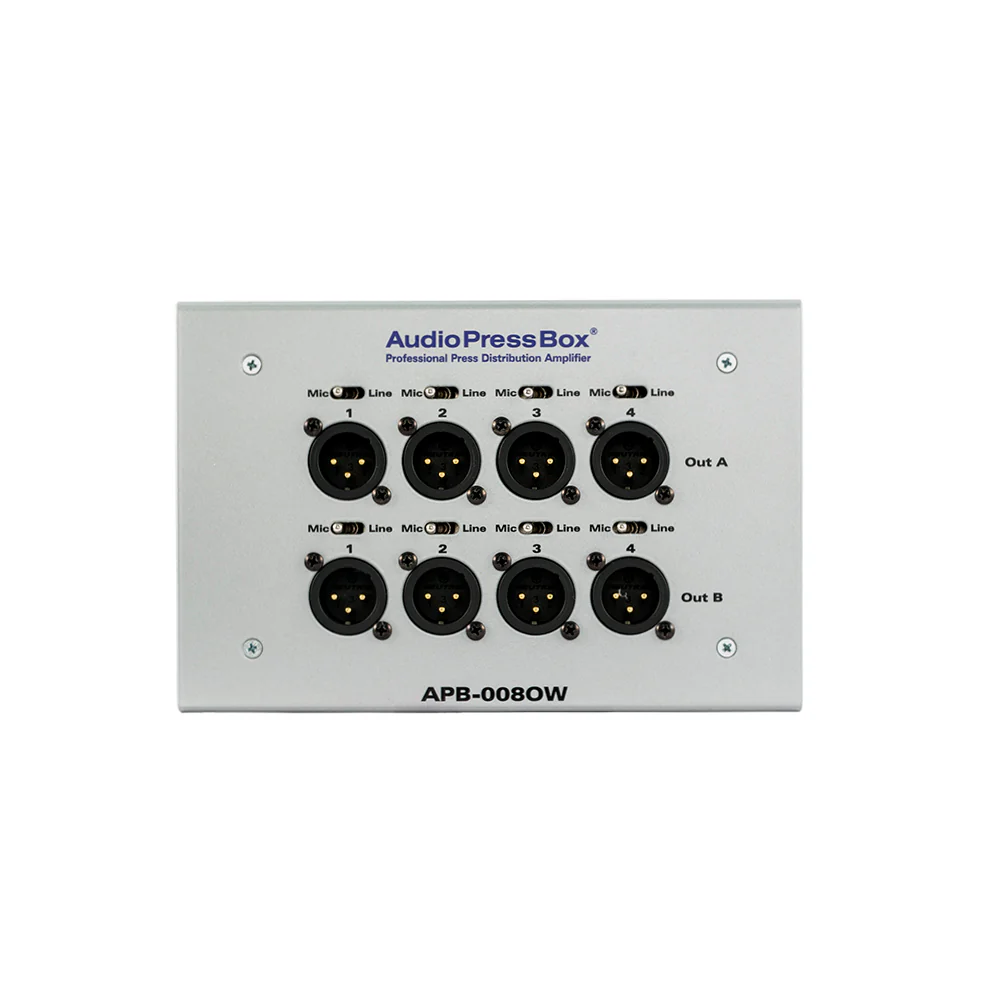

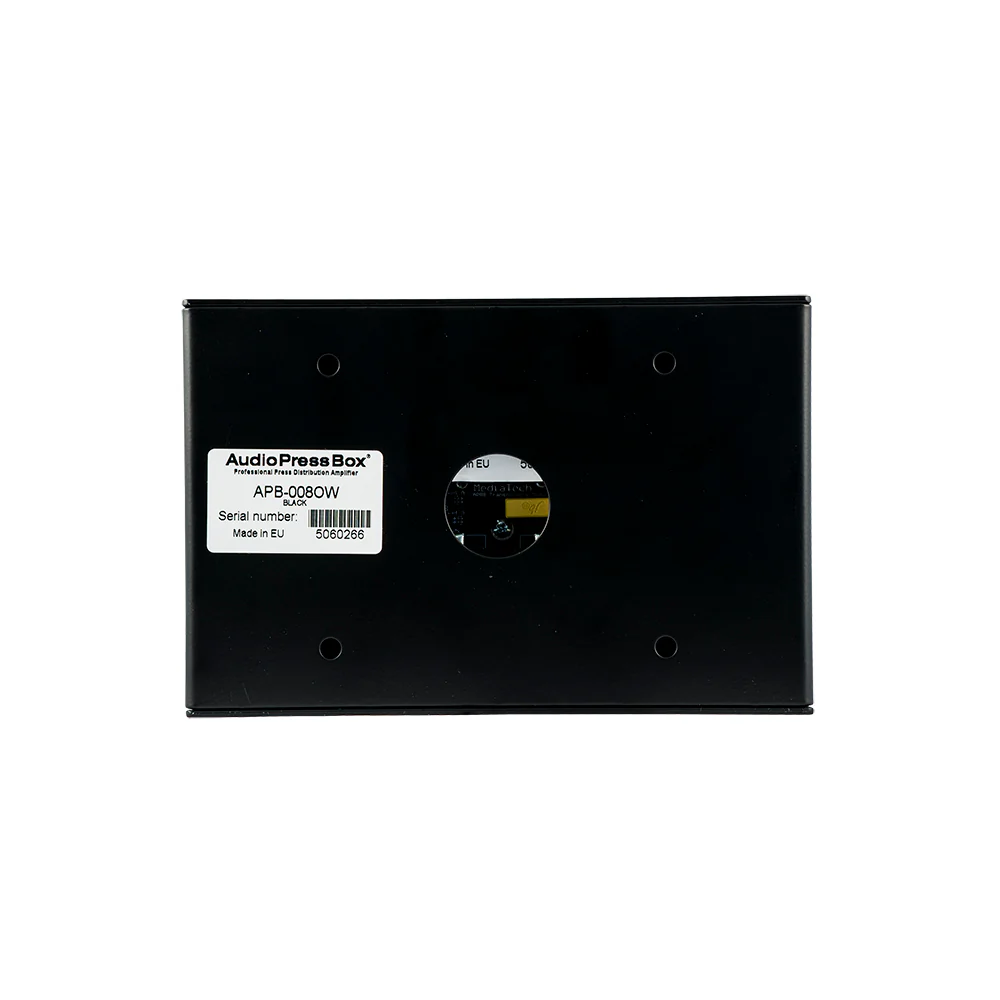

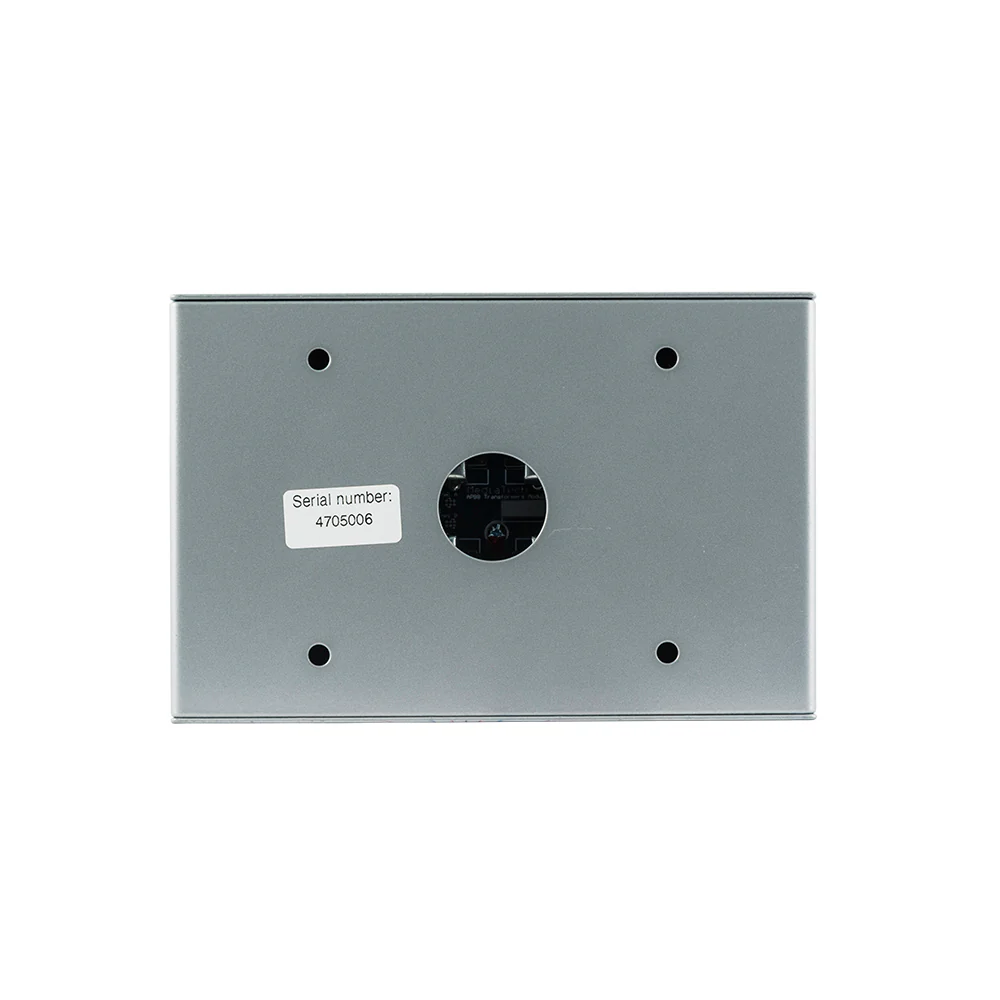

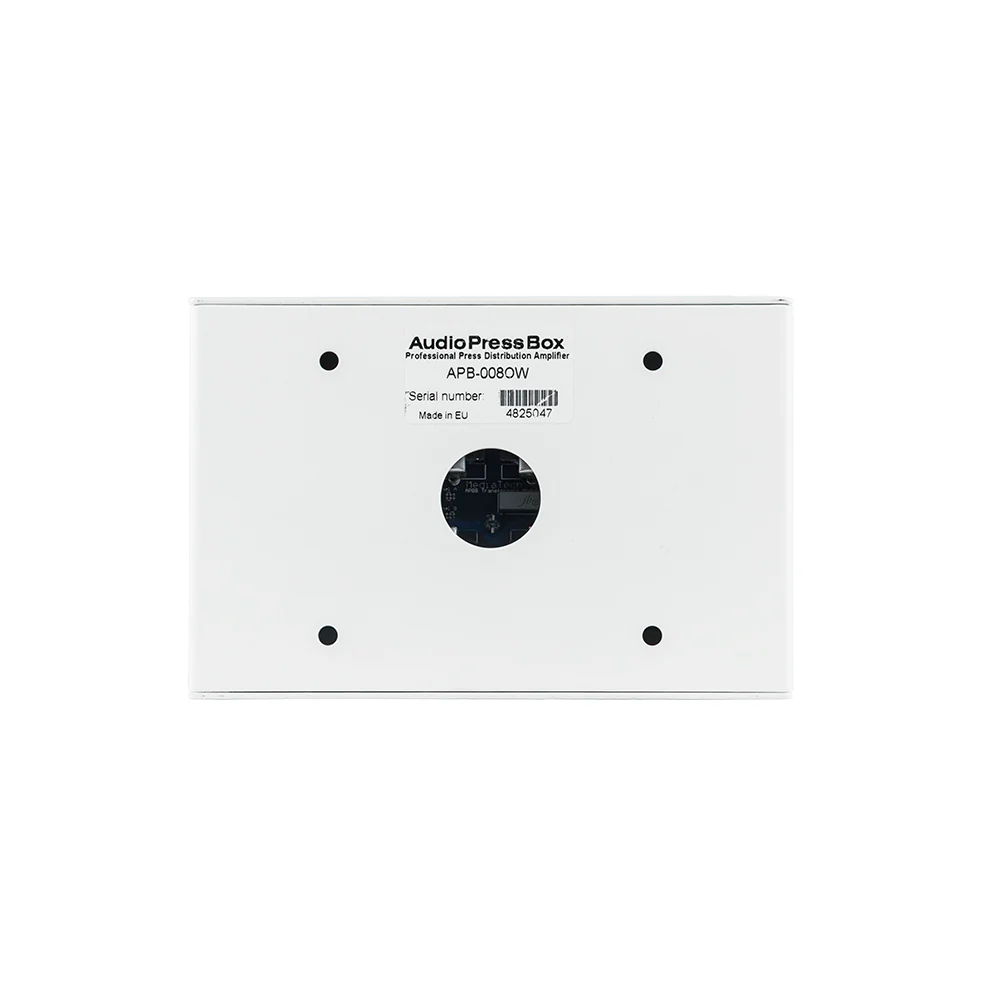

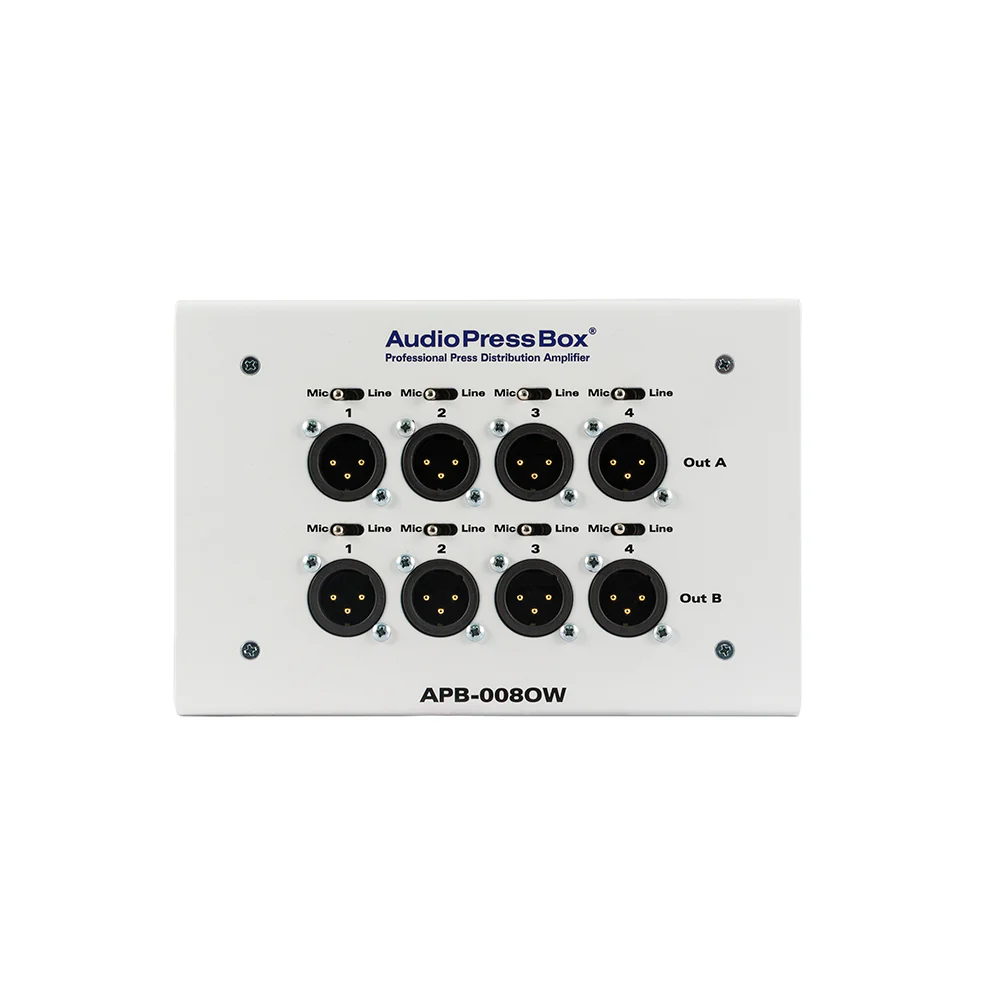

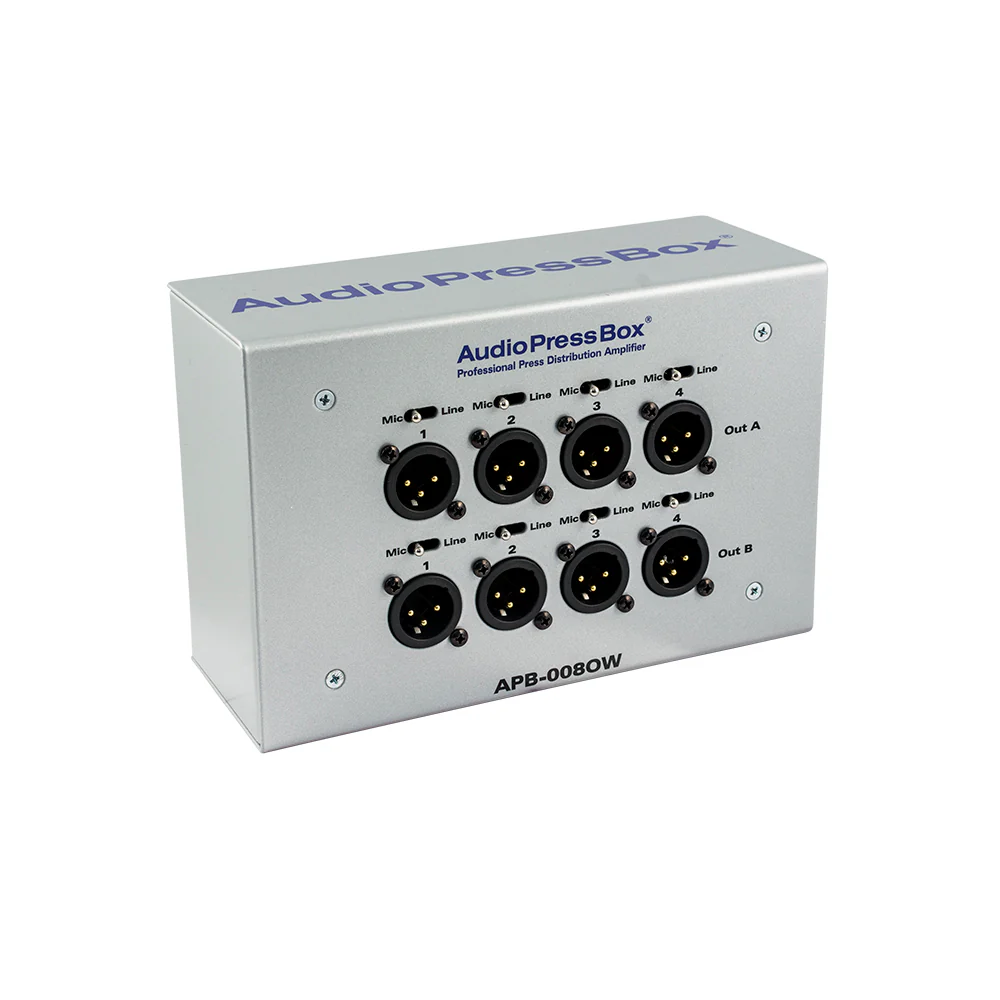

APB-008 OW-EX
On wall 8 Line/MIC Outputs Expander
A professional press box (Audio Splitter) expander featuring 8 Line/MIC outputs designed for system integrators for fixed installation.
The OW stands for ON WALL as it is for surface mounting.
Outputs are divided to channel A and channel B so it can also be used for bilingual conferences.
Each Output is independet transformer balanced and isolated.
It has 2 inputs with 3-pin phoenix connectors, one for each Output channel.
You can route each Input to Output Channel A or B or both via jumpers.
The expander must be fed with an APB-Drive unit in order to function properly.
REQUIRES A DRIVE UNIT: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R, APB-400 R
- 8 High quality balanced Outputs, each Output is independent transformer isolated
- AudioPressBox delivers audio in broadcast quality
- Each Output is switchable between LINE or MIC Output level
- 2 internal Output Groups: 4x Output A and 4x Output B
Features
Transformer Separately transformer isolated outputs.

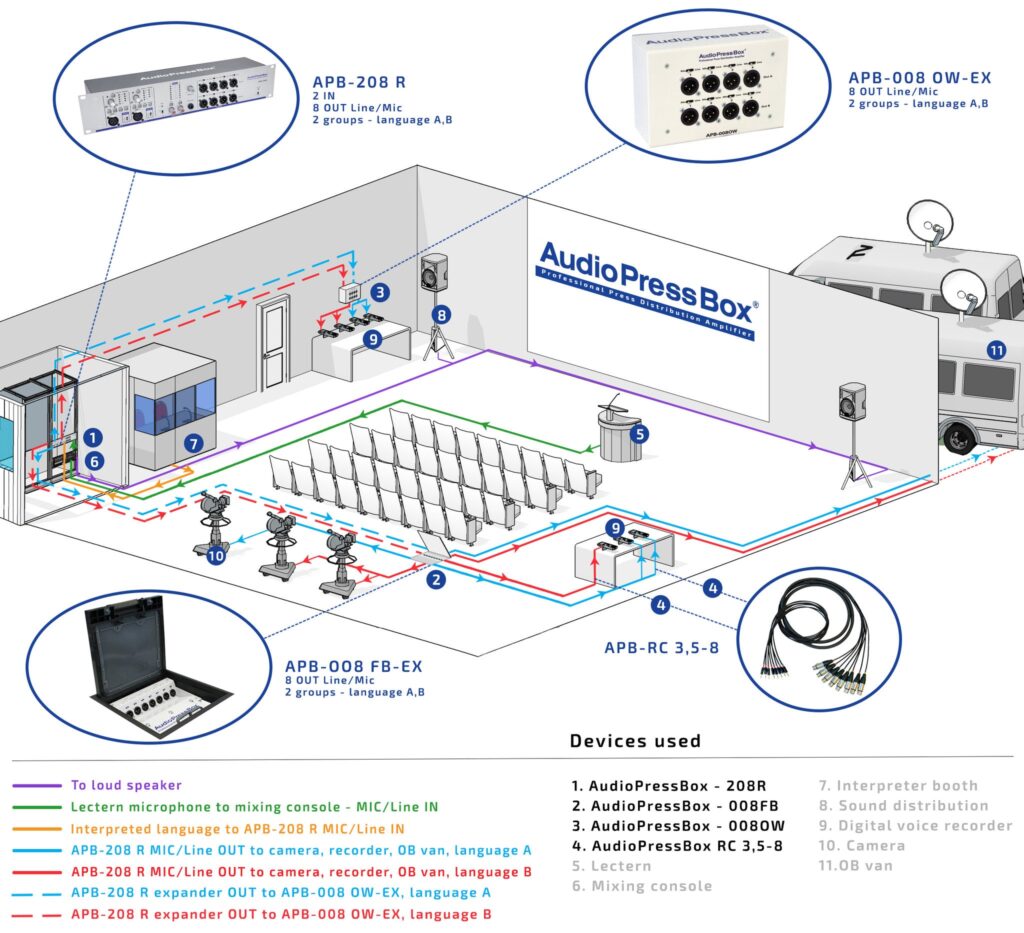

Applications
Specification of APB-008 OW-EX
| Type | Expander |
| Groups | 1 |
| Inputs | 1 |
| Input connectors | ballanced, 3-pin phoenix connector |
| Max. input level | Line: +24dBu |
| Input Impedance | 2,5kOhm |
| Ouputs | 8 MIC level (-38dBu), 1 Input link (Line level) |
| Ouput connectors | ballanced, XLR-M connector |
| Transfomer isolated outputs | Yes (each output) |
| Nominal Output level | -38dBu (0dBu on the input) |
| Maximum Output level | -14dBu (no load) -20dBu (150 Ohm) |
| Output Impedance | 150 Ohm |
| Frequency Response | 10Hz to 30kHz/-1dB |
| Dimensions (WxHxD) | 180x120x70mm |
| Weight | 1690g |

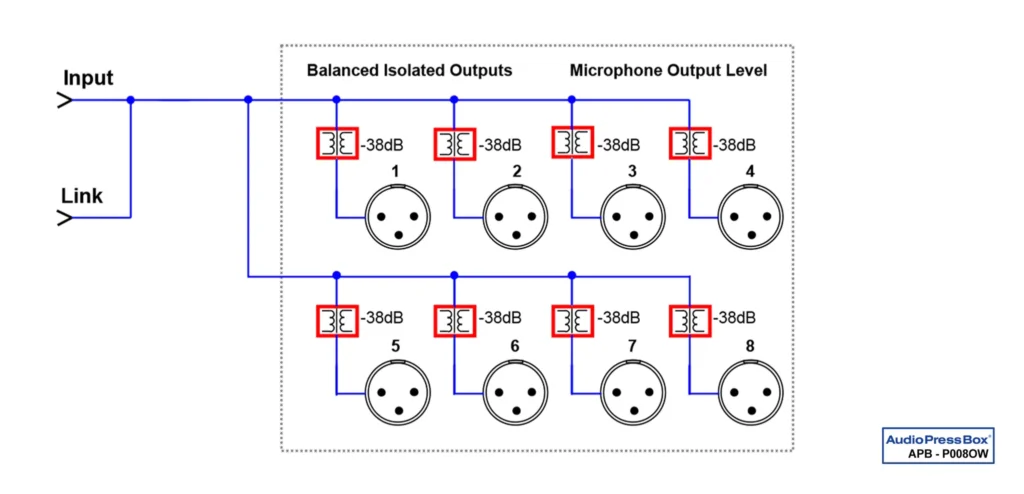

Block diagram
