AudioPressBox
APB-024 R-EX
Rack unit 24 Line/MIC outputs Expander
A professional press box (Audio Splitter) expander featuring 24 Line/MIC outputs in a Rack.
Outputs are divided to channel A and channel B so it can also be used for bilingual conferences.
Each Output is independet transformer balanced and isolated.

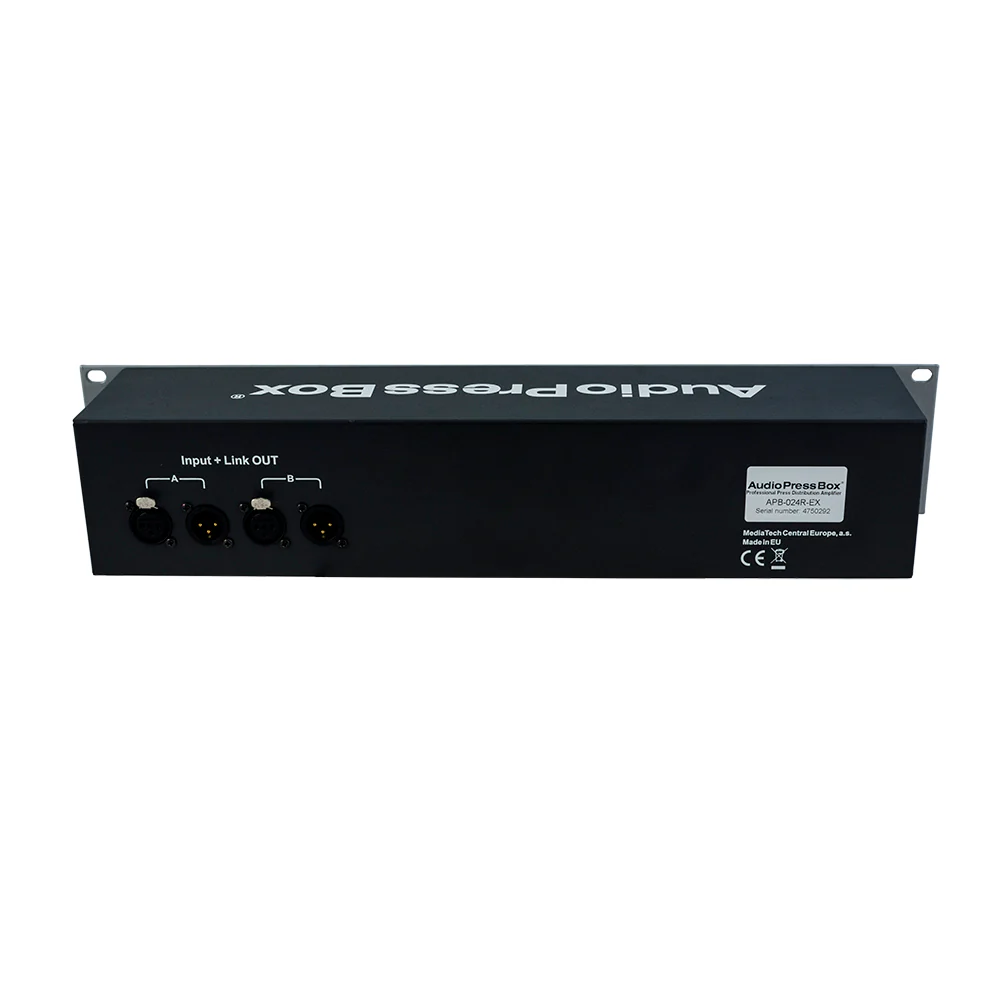

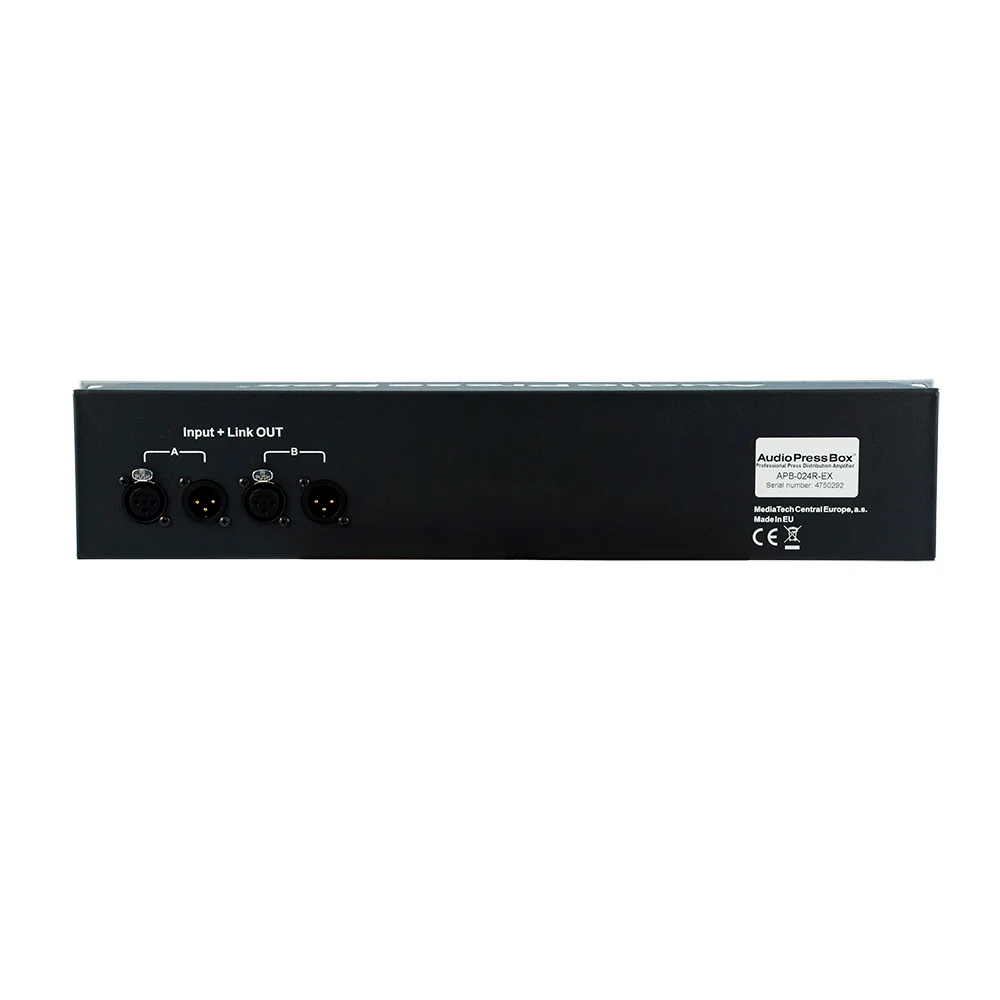

It has 2 inputs with 3-pin XLR connectors, one for each Output channel.
You can route each Input to Output Channel A or B or both.
It also has 2 link Outputs so you can daisy chain additional expanders if you need additional Line/MIC Outputs.
The expander must be fed with an APB-Drive unit in order to function properly.
REQUIRES A DRIVE UNIT: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R, APB-400 R

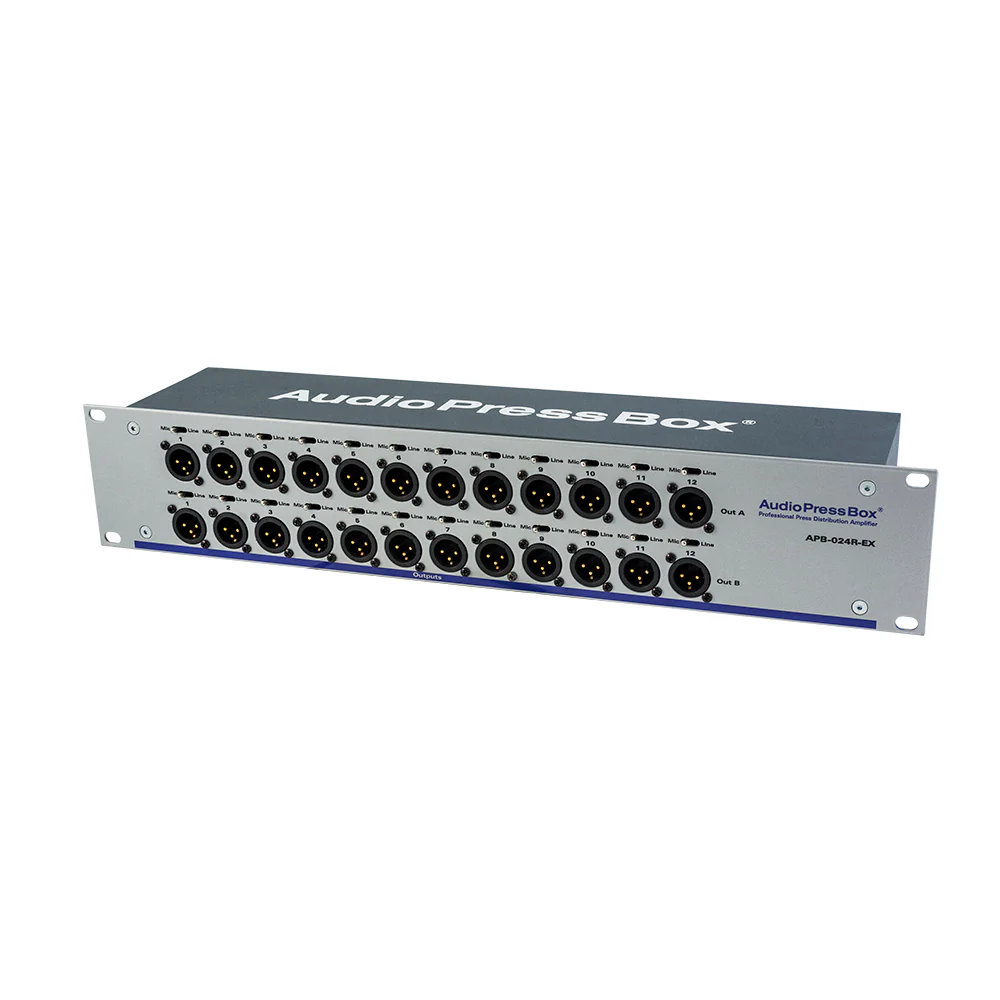

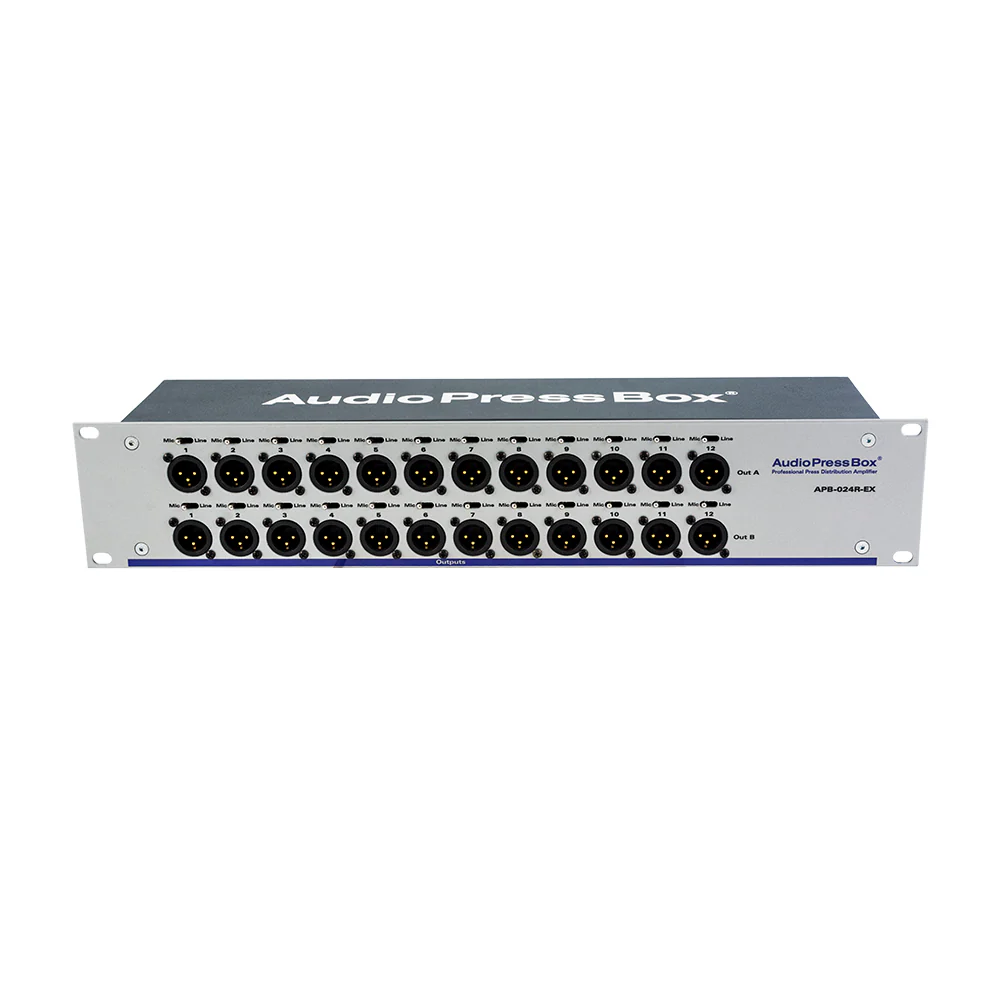

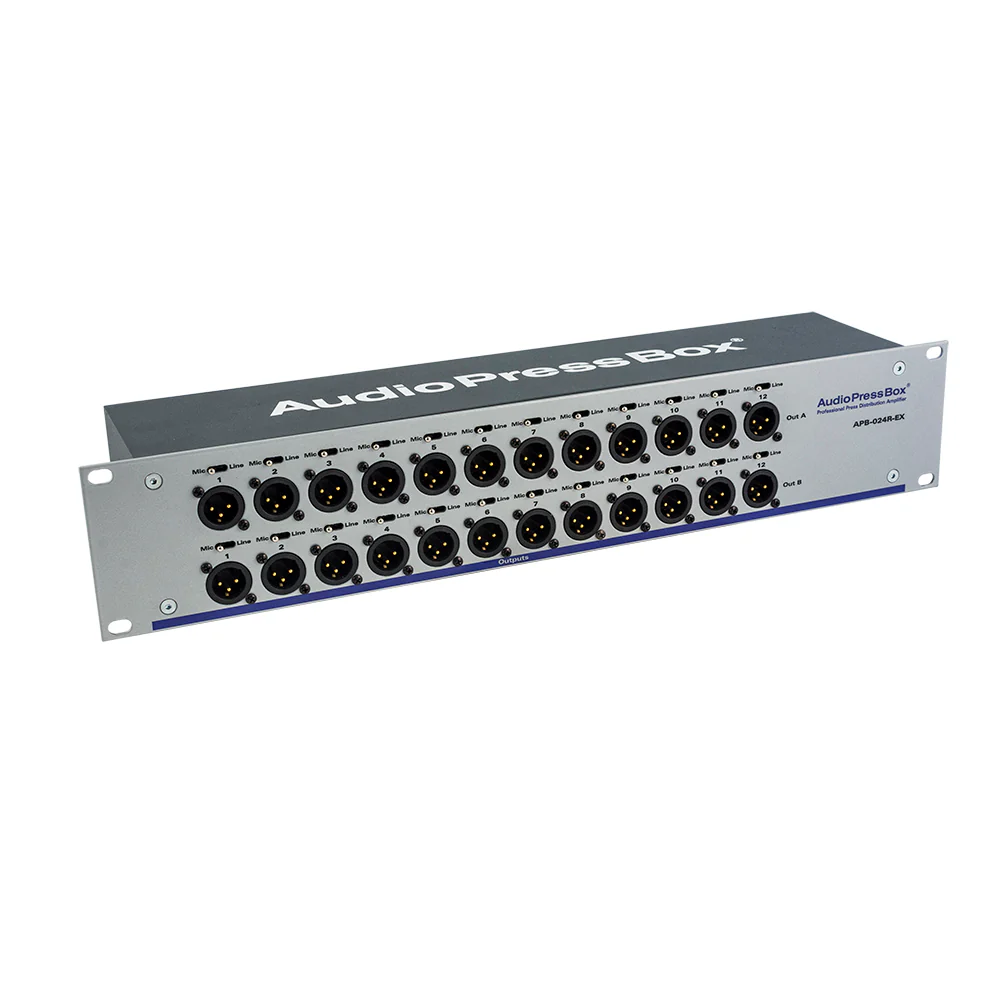

- 24 High quality balanced Outputs, each Output is independent transformer isolated

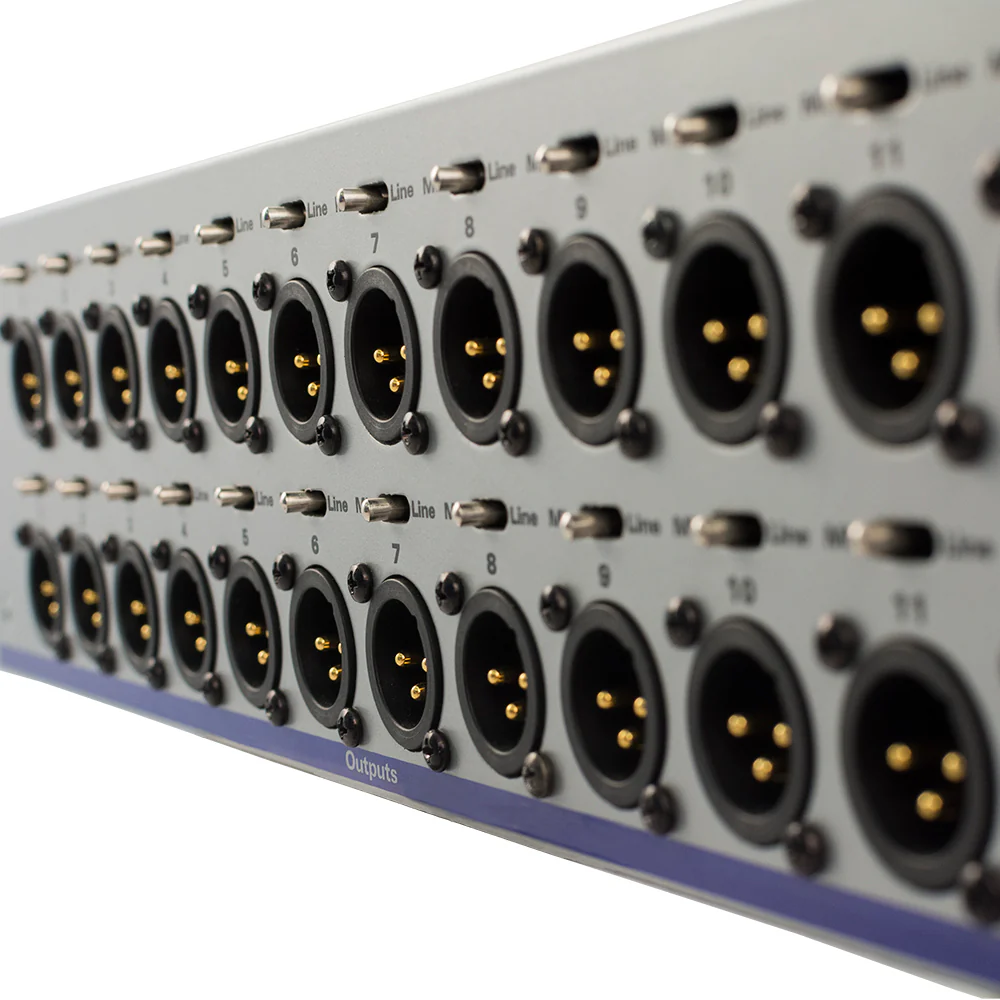

- Each Output is switchable between LINE or MIC Output level
- 2 internal Output Groups: 12x Output A and 12x Output B
- AudioPressBox delivers audio in broadcast quality
Features
Transformer Separately transformer isolated outputs.
Watch for more details
Specification of APB-024 R-EX
| Type | Expander |
| Groups | 2 |
| Inputs | 1x Bus A ; 1x Bus B |
| Input connectors | ballanced, XLR |
| Ouputs | 12x Bus A, Line/MIC level ; 12x Bus B, Line/MIC level |
| Output connectors | ballanced, XLR-M connector |
| Transfomer isolated outputs | Yes (each output) |
| Nominal Output level | MIC: -20dBu ; LINE: +6 dBu |
| Output Impedance | MIC: 220Ω ; LINE: 600Ω |
| Dimensions (WxHxD) | 480x150x90mm |
| Weight | 2830g |
Block diagram
