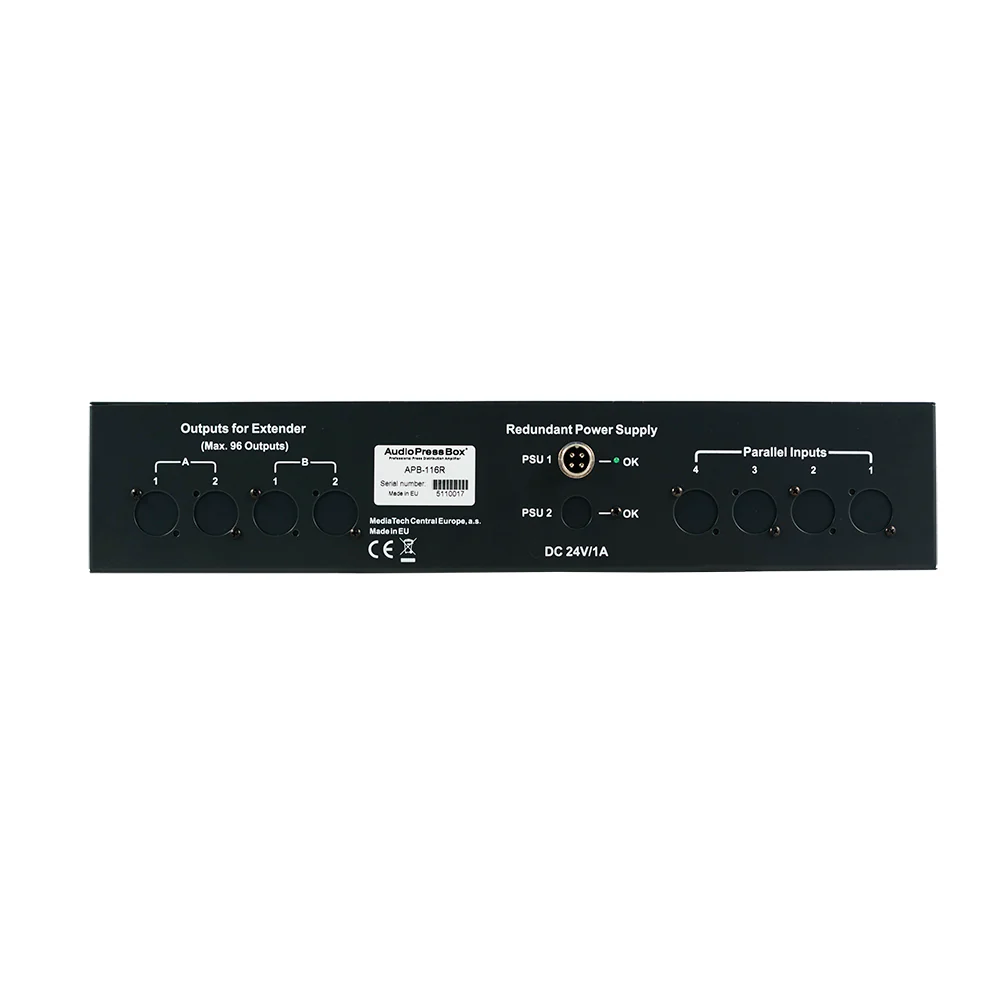

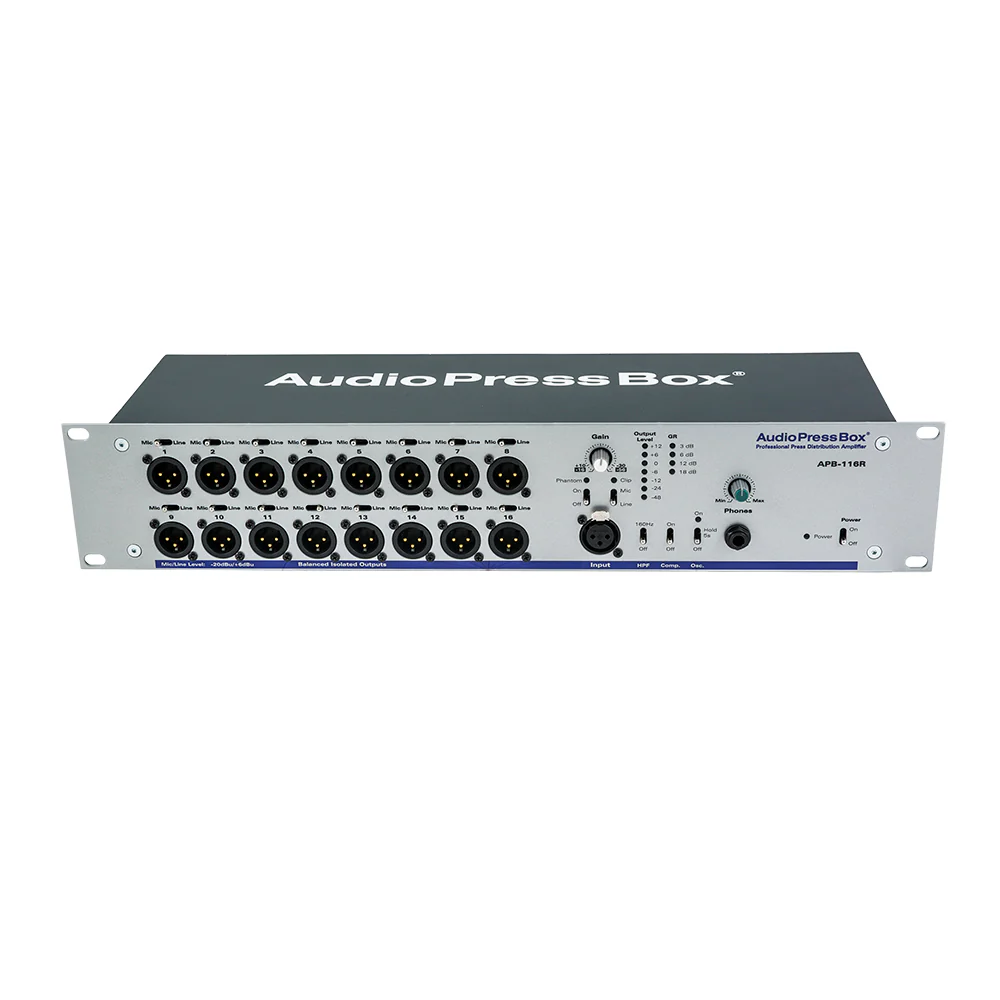

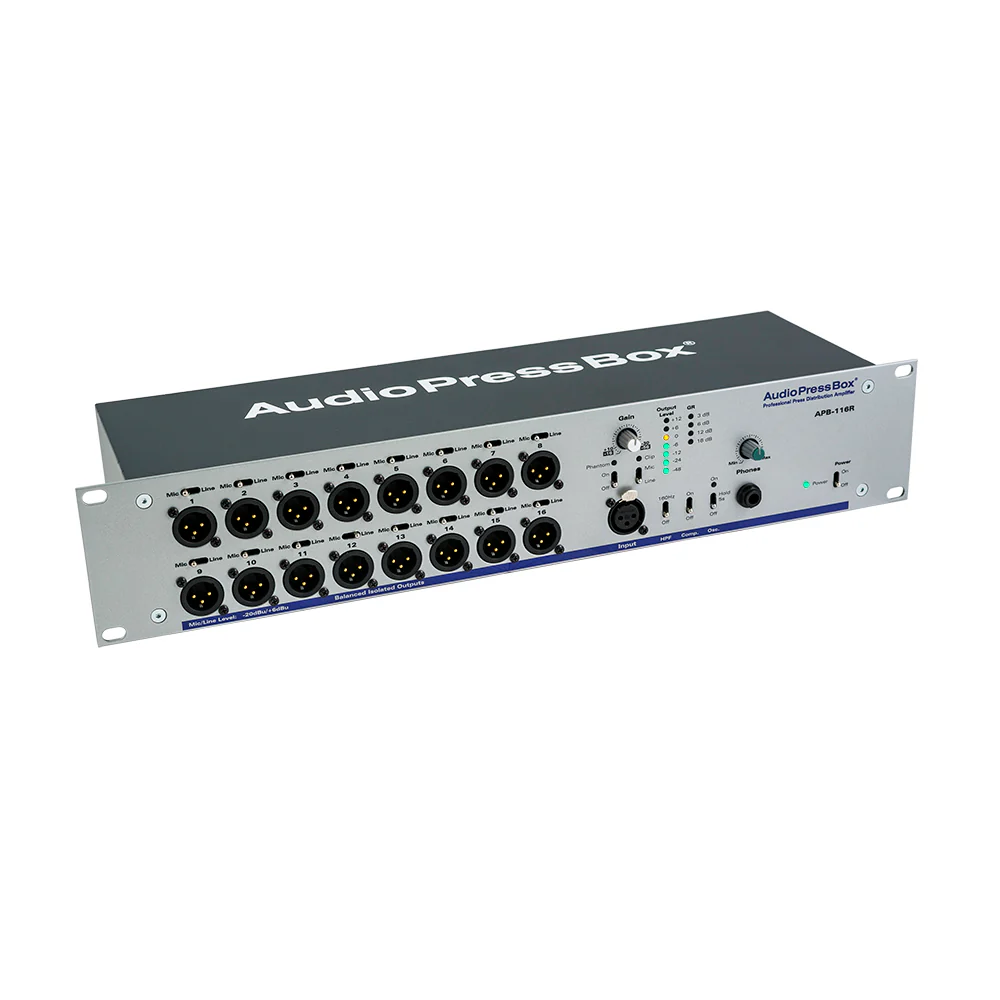

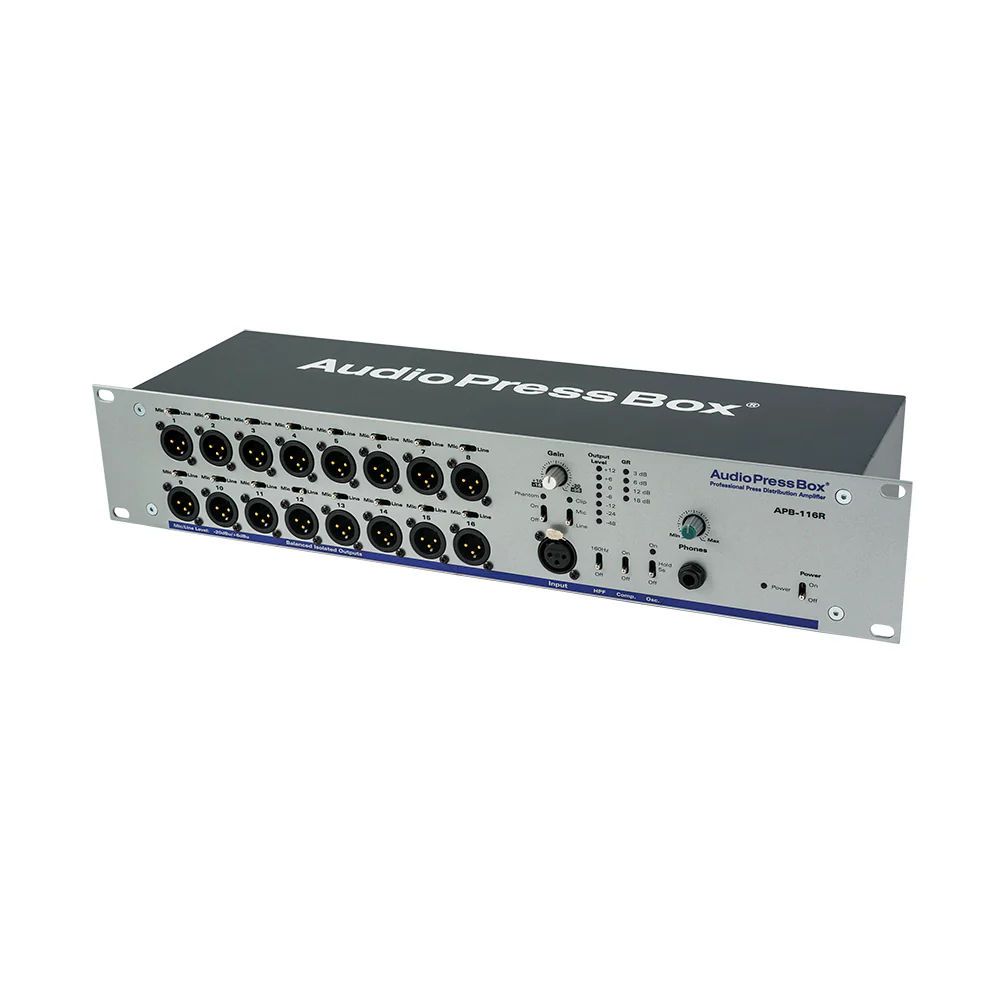

APB-116 R

19″, Active, 1x MIC/LINE Input, 16 internal Lline/MIC Outputs

A professional active press box (Audio Splitter) in a rack.
It features 1 MIC/Line Input and 16 Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.

1 MIC (phantom power) / LINE Input – balanced with gain control and 26dB PAD

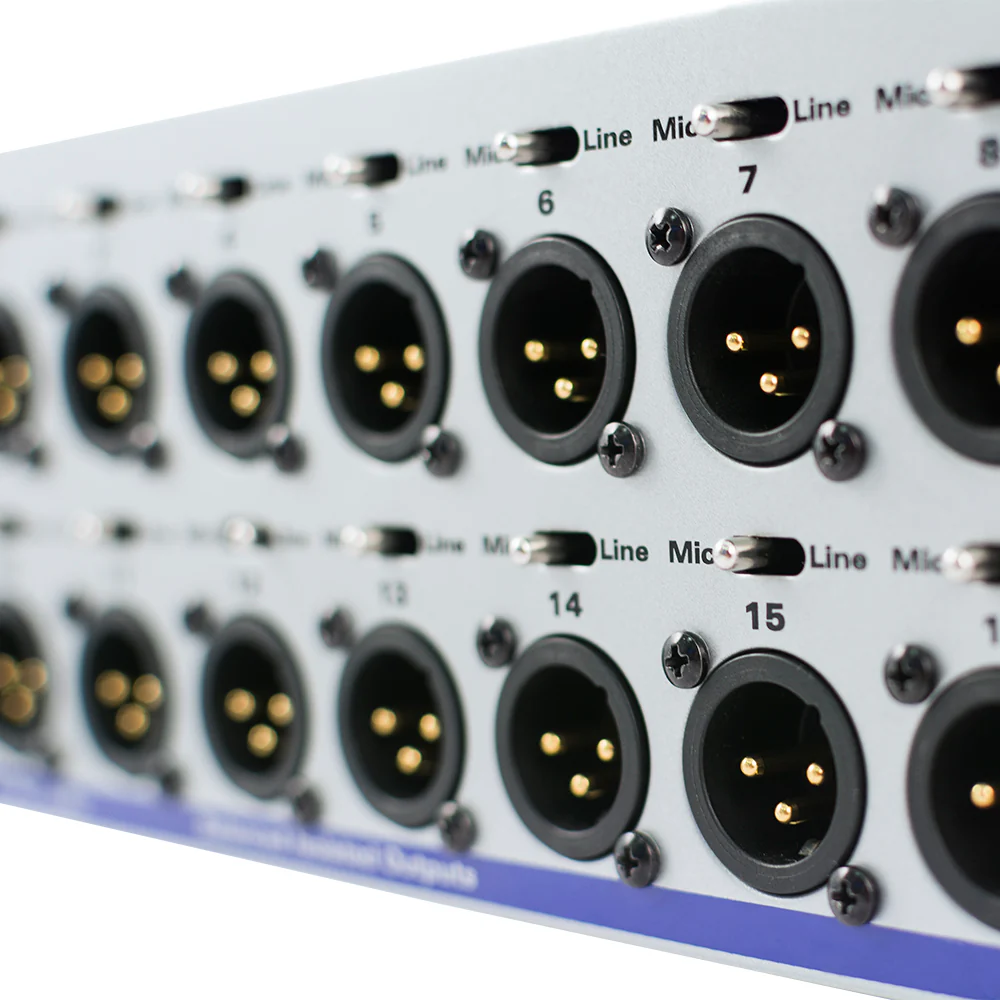

16 High quality independent transformer balanced and isolated outputs
Each Output is switchable between MIC or LINE level
2 internal Output Groups: 8x Output A and 8x Output B
Switchable High-Pass filter for each Input channel
Switchable Compressor and Limiter for each Input channel
Constant level Test signal oscillator with no mistake switch operation
Headphones control Output
AudioPressBox delivers audio in broadcast quality

Watch for more details

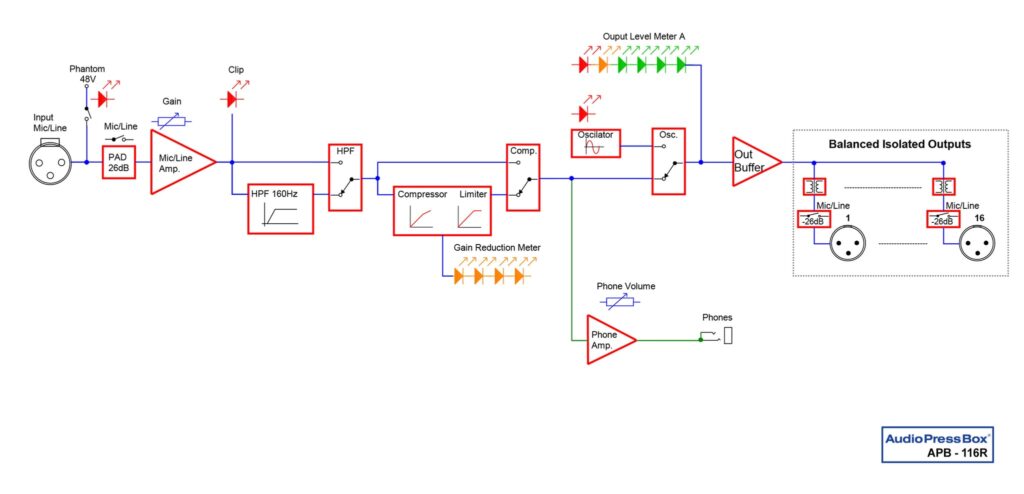

Features

+48V If you are about to use condenser microphone, turn Phantom power switch ON to feed your microphone with 24/48V. If you use dynamic microphone or microphone with his own power, you can switch this OFF.

PAD If you are using microphone as an input, this button should be set to “Off” position. If you are using input from the mixing console or CD player, please set this switch to “On” position.

HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.

COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.

OSC (Oscillator operation switch) To test signal level, which is coming to the outputs, you can switch this Test 1kHz sine signal oscillator on. After recipients set the levels in their recording devices, you should switch this function OFF. When compressor switch is set to ON, output signal level won’t exceed this maximum output level.

Transformer Separately transformer isolated outputs.

Rechargeable batteries Optional Built-in Li-Ion battery pack with microprocessor controlled battery management, 10 hour working time at full load. No self-discharge and memory effect, always ready to use. Short charging time compared to conventional batteries.

Applications

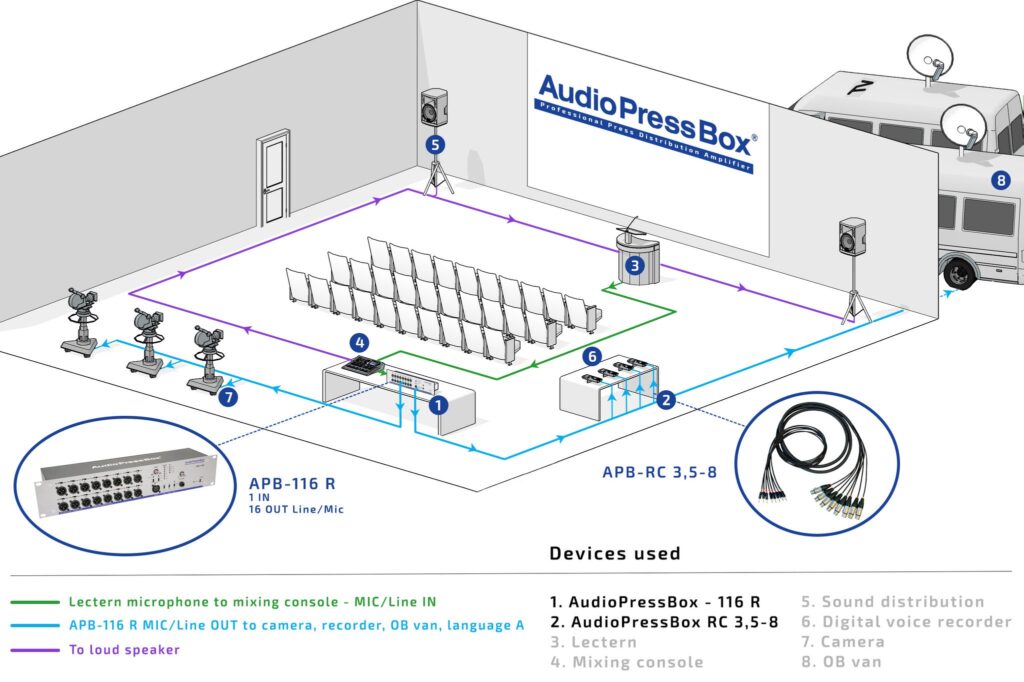

Press conference with a mixing console and speakers:

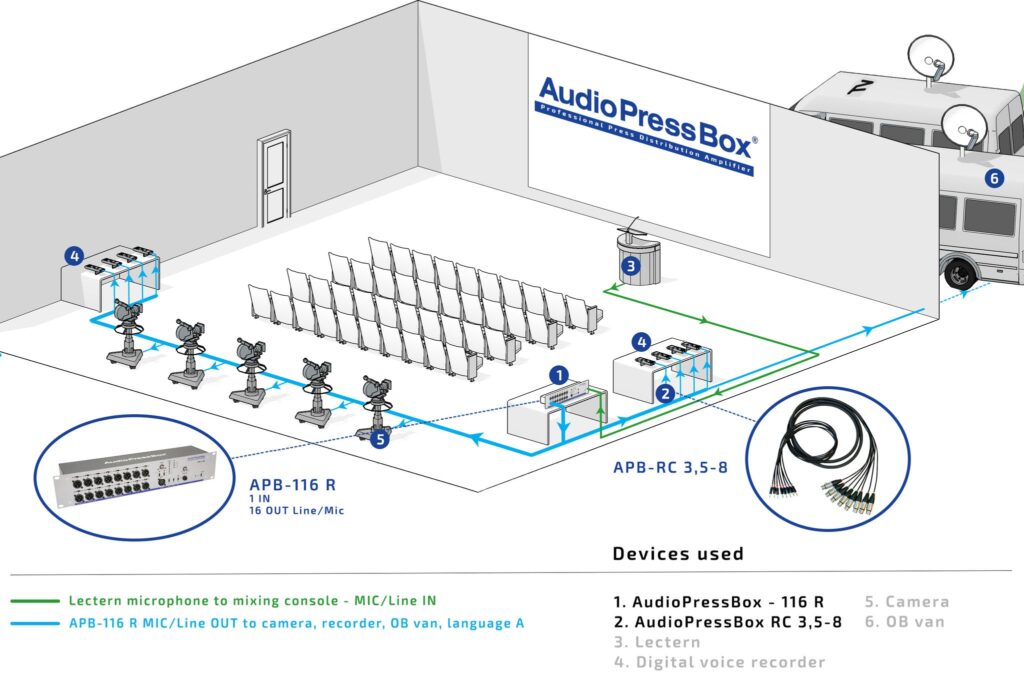

Press conference without mixing console and speakers:

Specification of APB-116 R

Type	1 in16 out
Groups	1
Input section
Inputs	1
Input connectors	Balanced, XLR
Max. input level	Limiter ON: Mic: -10/-30dBu Line: +36/-4dBu Limiter OFF: Mic: -2/-42dBu Line: +24/-16dBu
Phantom Voltage	48V
Input Impedance	Mic: 2,4 kOhm ; Line: 3,5 kOhm
Output section
Outputs	16 Line/MIC leve

Output connectors	Balanced, XLR
Nominal Output Level	+6dBu
Maximum Output Level	+20dBu (no load) ; +14dBu (600kOhm)
Output impedance	Mic: 220 Ohm ; Line: 600 Ohm
Transformer isolated outputs	Yes (each output)
SNR	86dB
Frequency Response	30/160Hz (filter) to 30kHz/-1dB
Controls	Mic/Line PAD, Input gain, Phantom, High-pass filter, Compressor, Oscillator, Phones level, Power, Output PAD
Indicators	Input clip, Phantom power, Output level, Gain reduction, Power
Power Supply	24V DC, 1A external adaptor
Dimensions (WxHxD)	2 RU, 480x135x90mm
Weight	3380 g
