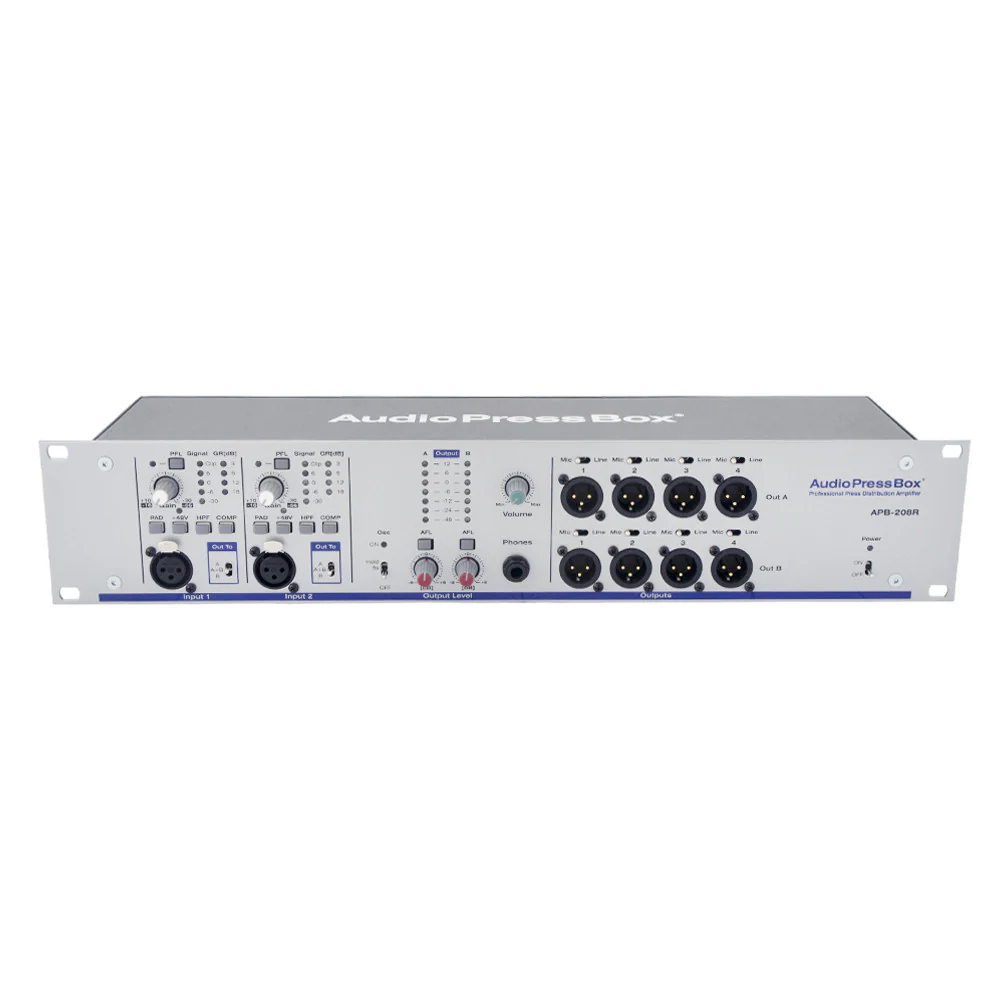

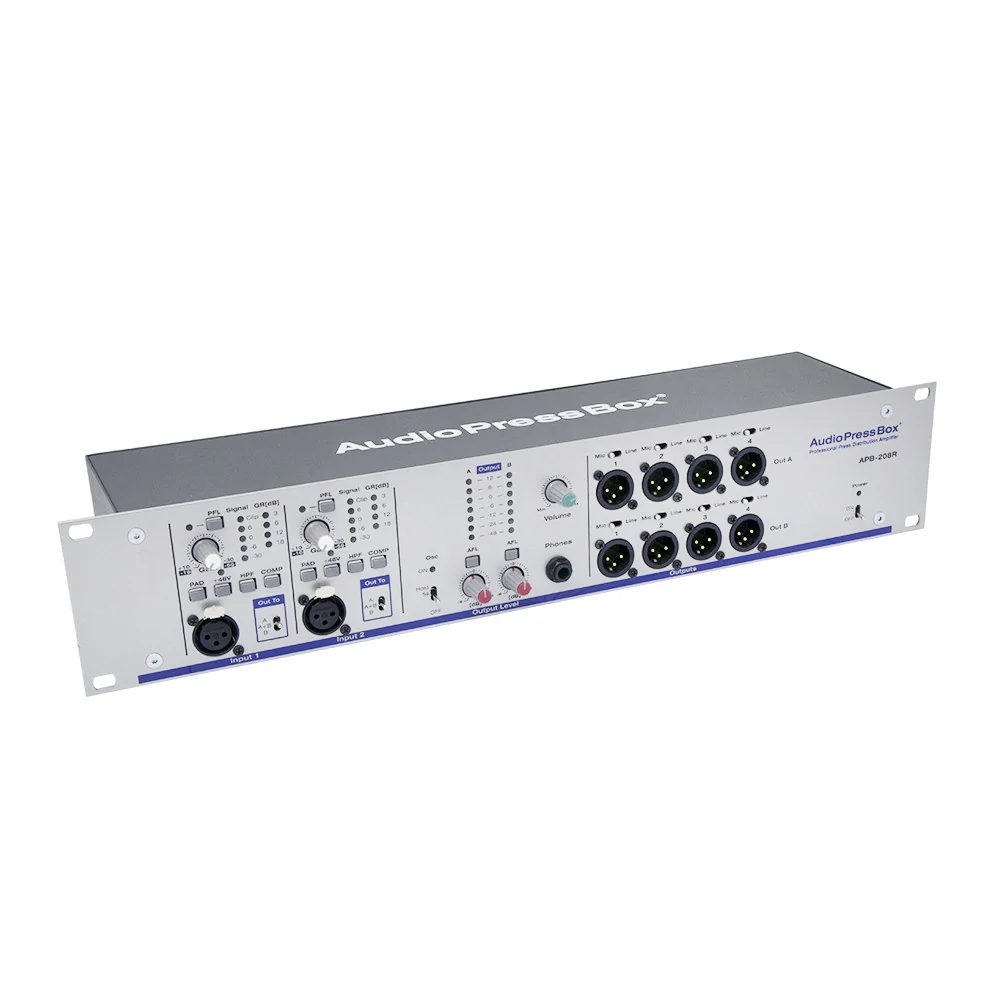

AudioPressBox

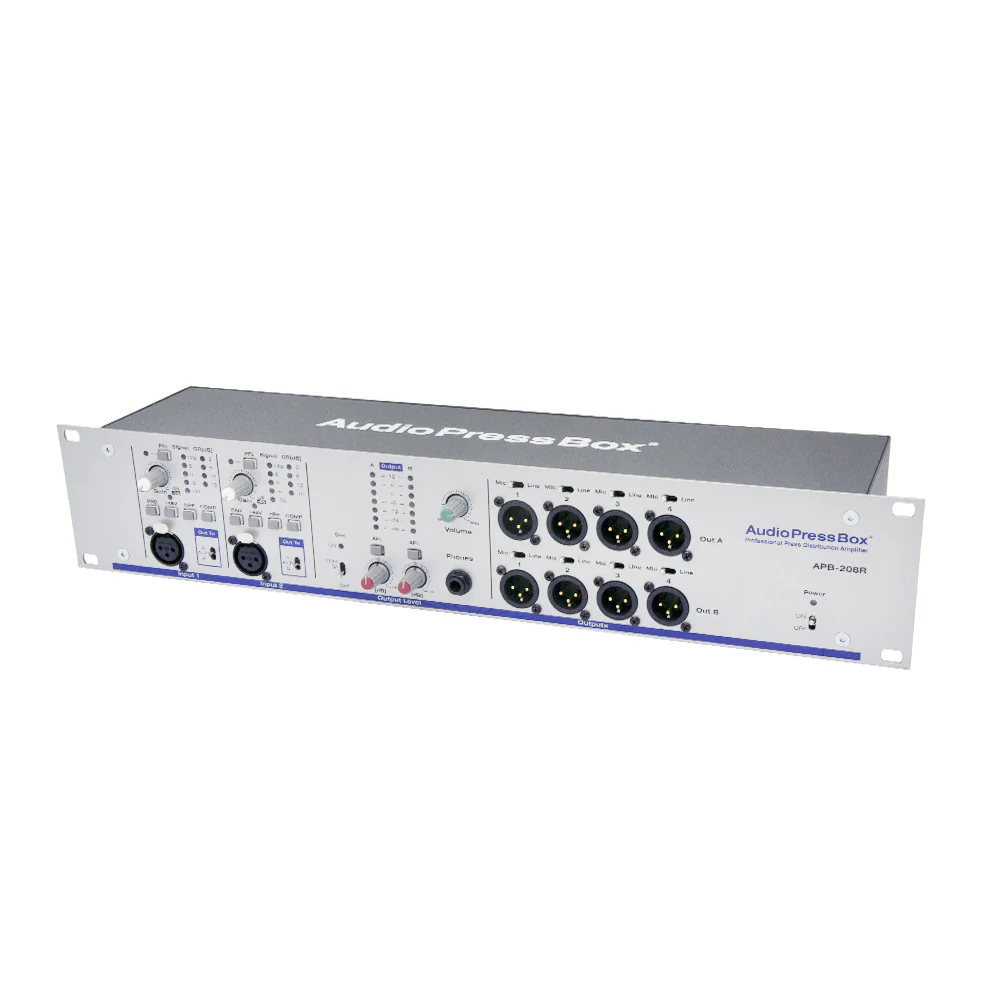

APB-208 R

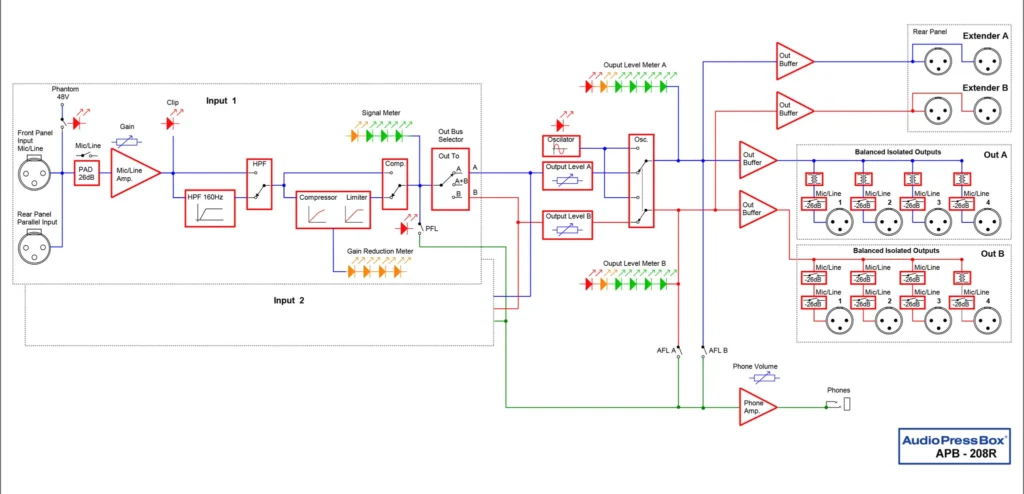

Rack design with 2 routable Inputs (A, A+B, B), 8 Line /MIC Outputs, 4 buffered outputs for APB expanders

A professional active press box and a drive unit (Audio Splitter) serving both as an active press box and a drive unit for additional expanders.
It features 2 MIC/Line Inputs (A,A+B,B) and 8 Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.
What is more, it can also be used for bilingual conferences as it features 2 separate channels A and B.
Each input can be routed to channel A or channel B or both at the same time.
There is a bus A with 4 Line/MIC outputs and bus B with 4 Line/MIC outputs.
It also serves as a drive unit because it has 4 buffered expander Outputs and can power additional 96 Line/MIC Outputs.
So with this unit you can route route 2 individual inputs to up to 104 Line/MIC Outputs!
You can connect any of our expanders to it.

Drive unit for : APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008 FB-EX, APB-024 R-EX, APB-P008 OW-EX, APB-P008 IW-EX

2 MIC (phantom power) / LINE Input – balanced with gain control and 26dB PAD
Each Input is routable to A/(A+B)/B Outputs Group

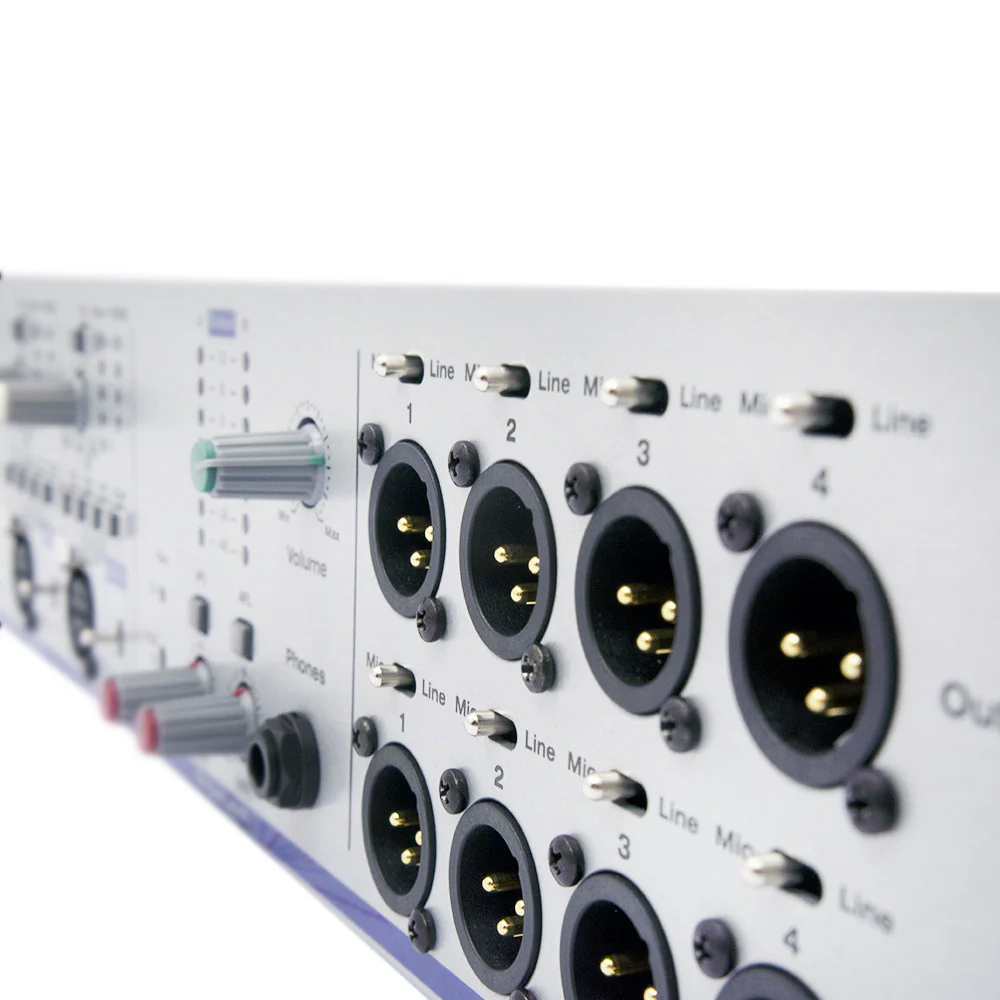

8 High quality independent transformer balanced and isolated outputs
Each Output is switchable between MIC or LINE level
2 internal Output Groups: 4x Output A and 4x Output B
2 separate buffered A and B Outputs for driving up to 48 channels of passive extenders: APB-024 R-EX, APB-008 IW/OW, APB 008FB, APB P008 IW/OW or APB-P112
Switchable High-Pass filter for each Input channel
Switchable Compressor and Limiter for each Input channel
PFL/AFL for each Input/Output channel
Constant level Test signal oscillator with no mistake switch operation
Headphones control Output for PFL/AFL
AudioPressBox delivers audio in broadcast quality

Watch for more details

Features

+48V If you are about to use condenser microphone, turn Phantom power switch ON to feed your microphone with 24/48V. If you use dynamic microphone or microphone with his own power, you can switch this OFF.

PAD If you are using microphone as an input, this button should be set to “Off” position. If you are using input from the mixing console or CD player, please set this switch to “On” position.

Routing switch Each microphone could be routed to 2 separated groups or to both groups at the same time. This is useful, if you have two (or four) lecterns and you want to route signal from each microphone (or group of 2 microphones) to separated tracks. Reporters can edit the recording easily, if they have both lecterns on separated tracks. You can label the outputs in the output extender with names of the lecterns or groups and reporters easily decide which group output they want to use.

AFL For better check your levels, you can isolate output from each group to your headphones. You can check the output levels of each group by hearing. Just push the button and you will hear output from particular group.

PFL To check your levels only for one input, push this button and you can see the level of output for corresponding input. You can easily see if all microphones have the good output levels and identify, if some of the microphones are too loud or too silent in the output.

HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.

COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.

OSC (Oscillator operation switch) To test signal level, which is coming to the outputs, you can switch this Test 1kHz sine signal oscillator on. After recipients set the levels in their recording devices, you should switch this function OFF. When compressor switch is set to ON, output signal level won’t exceed this maximum output level.

Transformer Separately transformer isolated outputs.

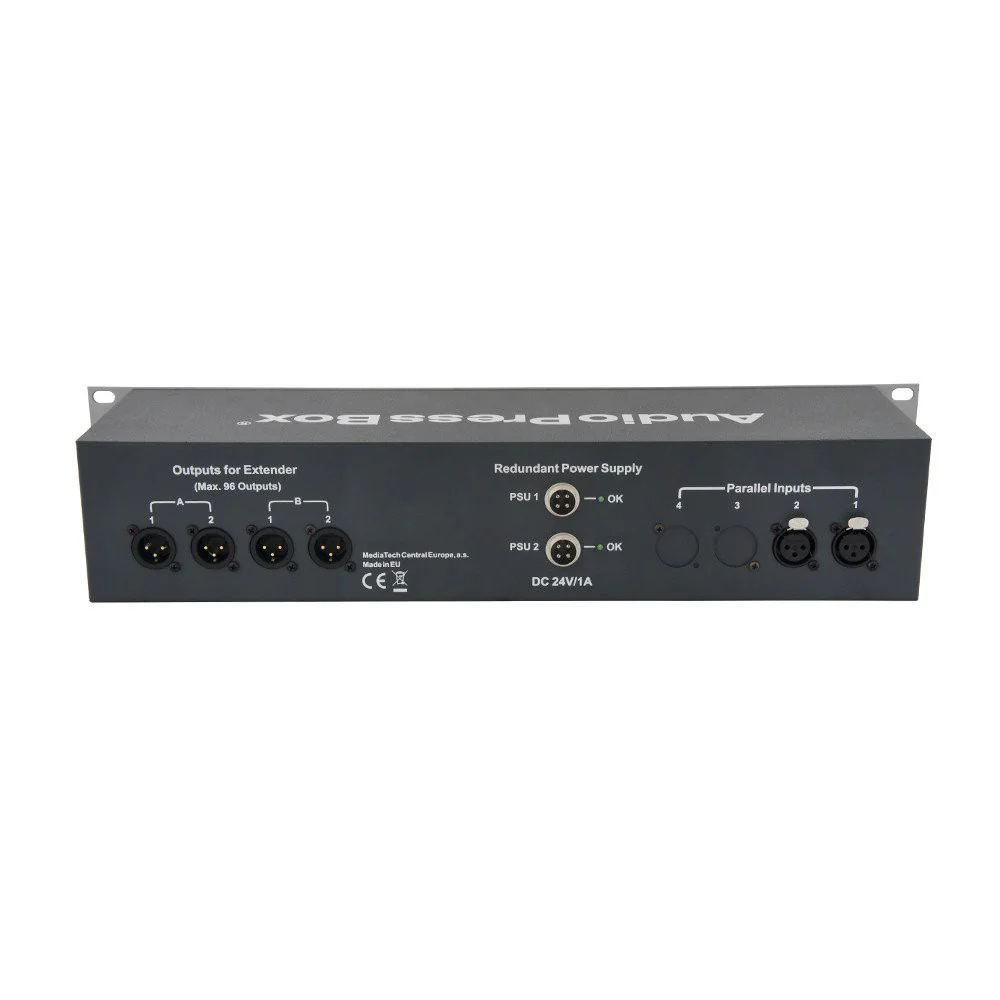

2 x bus A, 2x bus B buffered expander outputs

24V DC Power Supply

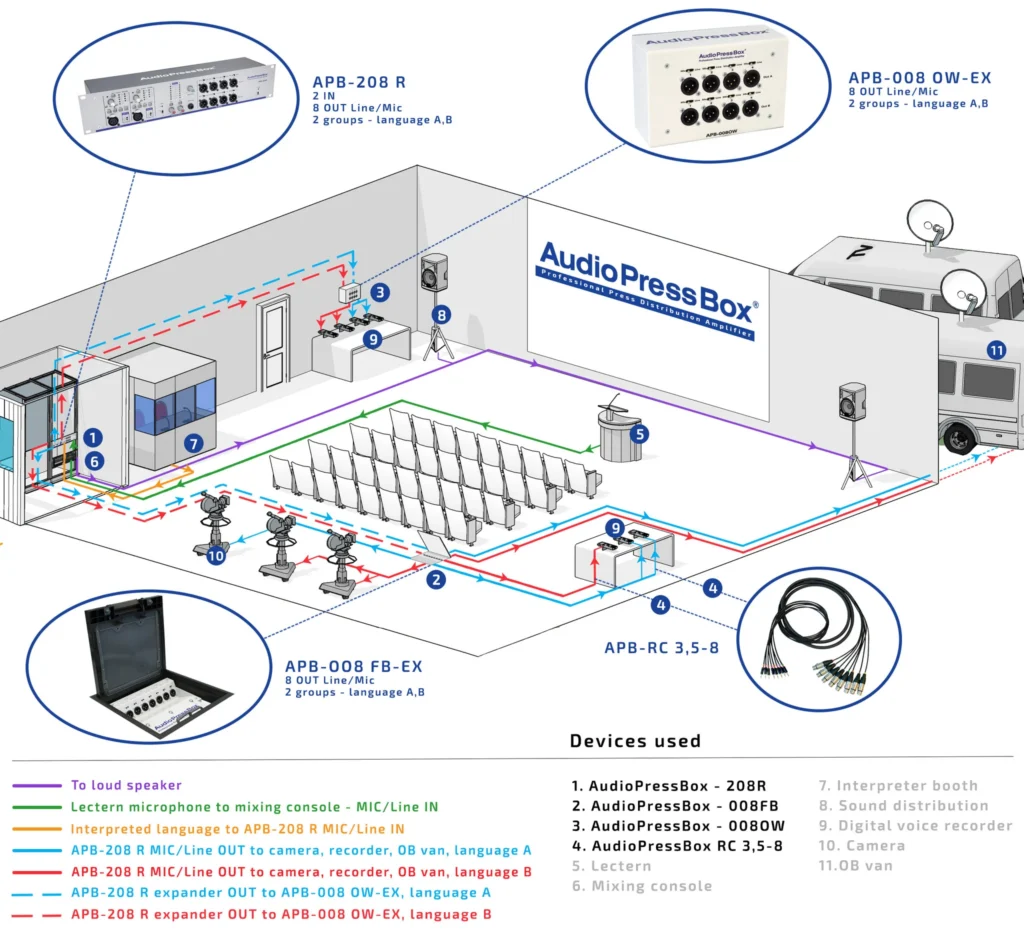

Applications

Specification of APB-208 R

Type	2 in 8 out
Groups	2
Input section
Inputs	2
Input connectors	Balanced, XLR
Input Gain	MIC +22/+62 dB ; LINE -4/+36 dB
Max. input level	Limiter ON: Mic: -10/-30dBu Line: +36/-4dBu Limiter OFF: Mic: -2/-42dBu Line: +24/-16dBu
Phantom Voltage	48V
Input Impedance	Mic: 2,4 kOhm ; Line: 3,5 kOhm
Output section
Outputs	8 Line/MIC level (4x Output A, 4x Output B), 4 expander outputs
Output connectors	Balanced, XLR
Nominal Output Level	+6dBu

Maximum Output Level	+20dBu (no load) ; +14dBu (600kOhm)
Output impedance	Mic: 220 Ohm ; Line: 600 Ohm
Transformer isolated outputs	Yes (each output)
SNR	86dB
Frequency Response	30/160Hz (filter) to 30kHz/-1dB

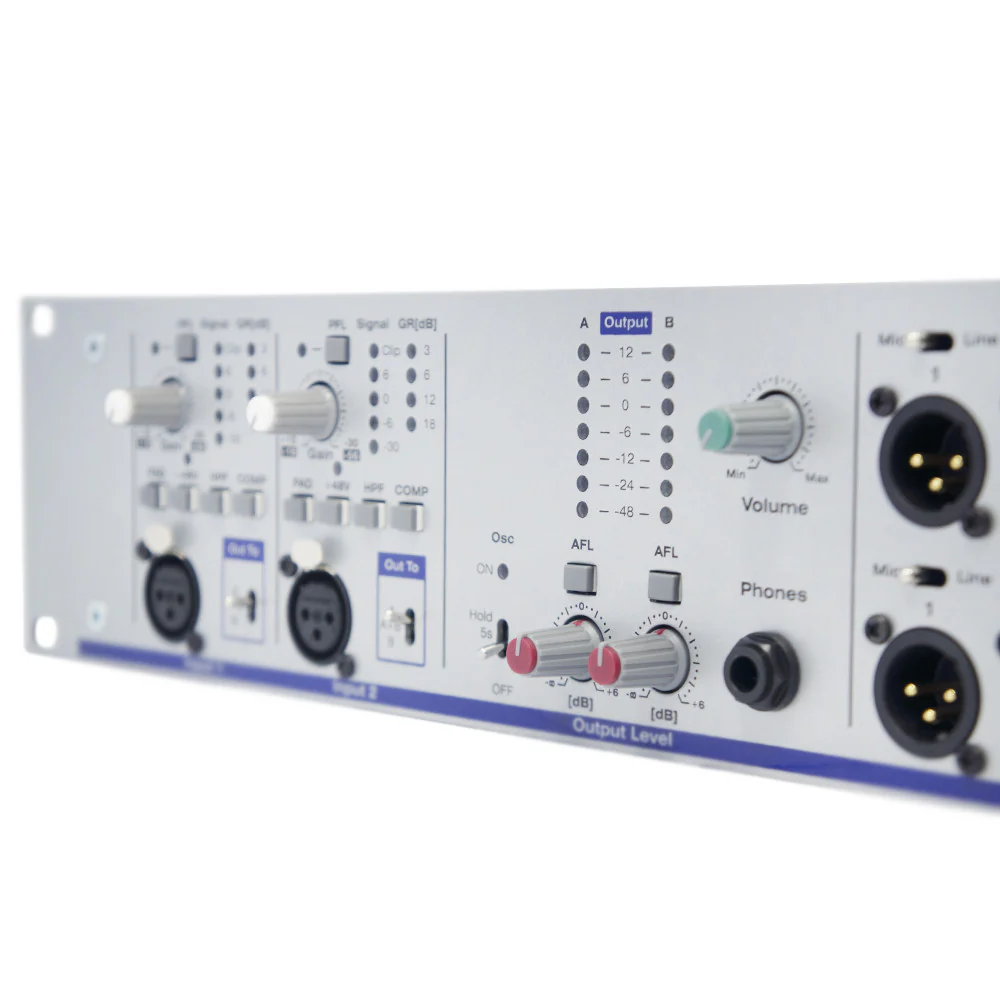

Controls	Input section: 26dB PAD, Input gain, Phantom, High-pass filter, Compressor, PFL, routing switch Output section: Oscilator, Output level for bus A and bus B, AFL for Bus A and Bus B, Phones level, Power, Output PAD
Indicators	Input section: Input clip, Phantom power, Input level, Gain reduction, PFL Output section: Output level for Bus A and Bus B, Oscilator, Power

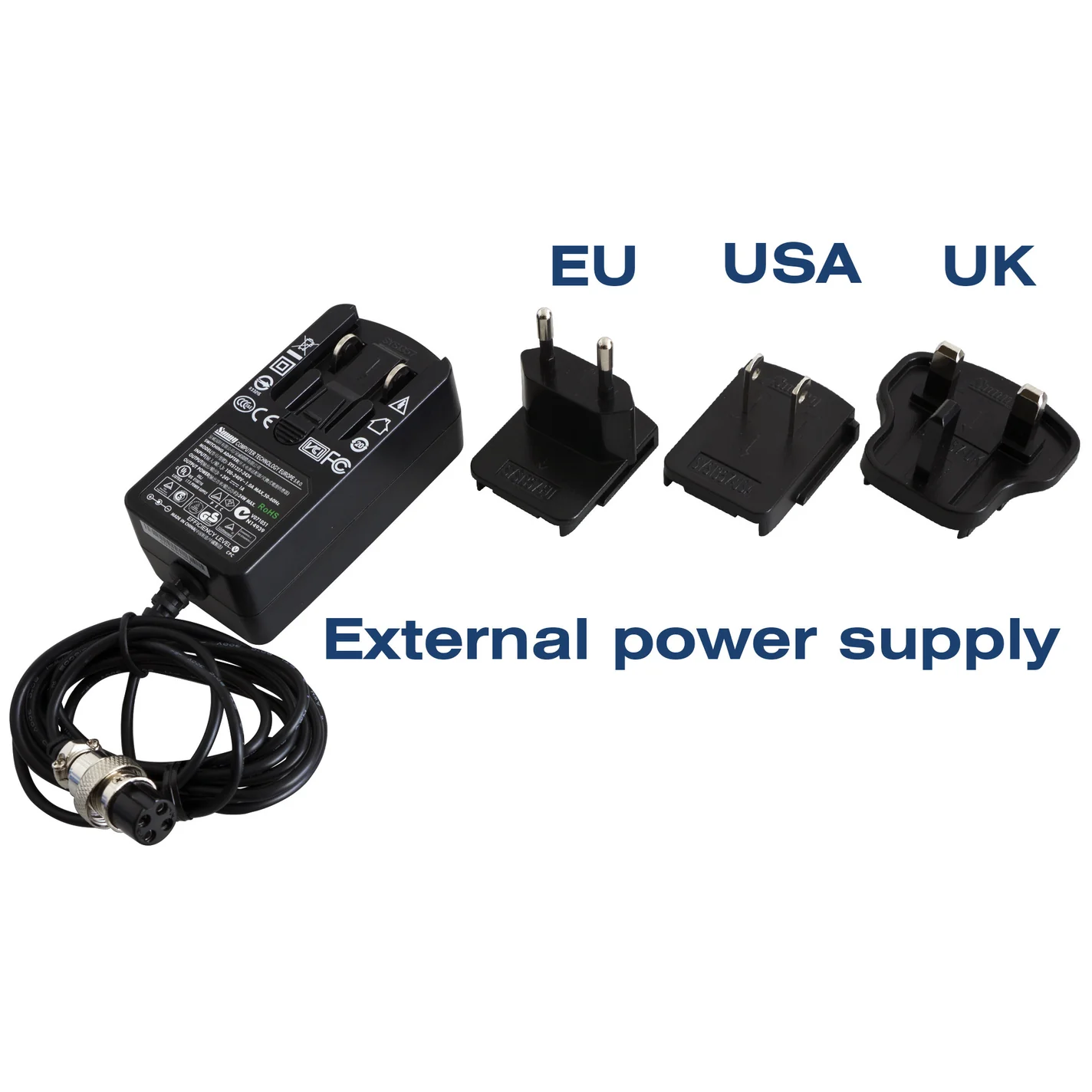

Power Supply	24V DC, 1A external adaptor
Dimensions (WxHxD)	2 RU, 480x135x90mm
Weight	3230 g
