AudioPressBoxAPB-D100

Active portable AudioPressBox distribution Drive unit, 1 LINE Input, 2 buffered Outputs for 6 AudioPressBox expanders

A professional portable active press box drive unit (Audio Splitter) serving as a source for AudioPressBox expanders.
It features 1 Line Input and 2 buffered expander Outputs.
It is a 1 channel drive unit with purpose of feeding any of our expanders.
This drive unit can power up to 48 Line/MIC outputs.
You can connect any of our expanders to it.

Drive unit for : APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008 FB-EX, APB-024 R-EX, APB-P008 OW-EX, APB-P008 IW-EX

IN STOCK

Delivery time: 2-5 business days worldwide.

REQUEST A QUOTE WHERE TO BUY


  • Portable Drive Unit
  • 1 Balanced LINE Input
  • Switchable High-Pass filter
  • Switchable Compressor and Limiter for Input channel
  • 2 separately buffered Outputs that can drive 6x APB-008 or 2x APB-024 Output expanders.
  • Maximum drive capacity 48 Line or Mic Outputs.

Note: Source of: APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008 FB-EX, APB-024 R-EX, APB-P008 OW-EX, APB-P008 IW-EX

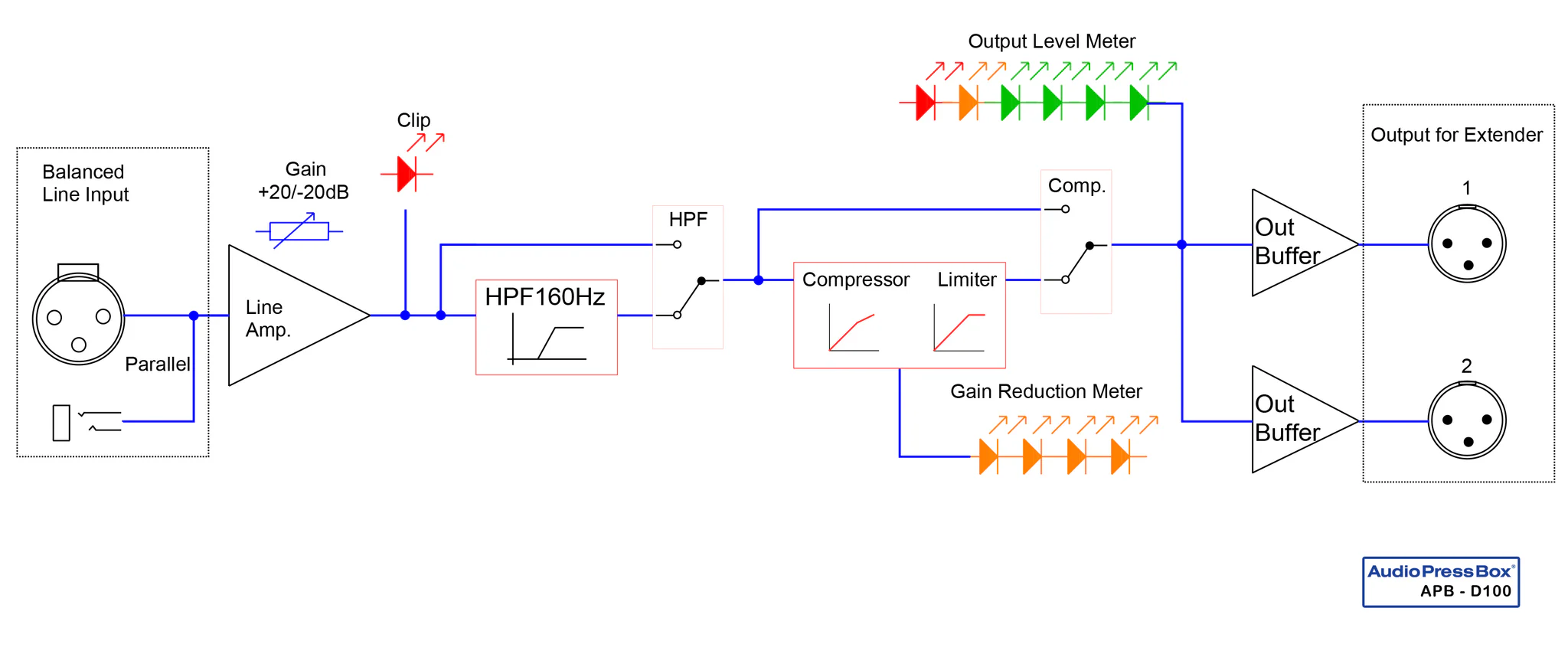

COMP COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.
HPF HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.
24V

24V DC Power Supply

driver 2x24 2 x buffered expander outputs



AudioPressBox, Mult Box, PressBox, Mult Box, Press Patch Box, Pressesplitter, APB-D100



Audio Press Box APB-D100
Type

1 IN/ 2 Drive OUT for 6xAPB 8-Output expanders or 2xAPB 24-Output expander

Note: Total capacity: 48 Line/Mic outputs (6x APB-008 xx-EX or 2x APB-024 R-EX) or 576 Mic Outputs (48x APB-P112 SB)

Input section
Inputs 1
Input connectors Balanced, XLR
Max. input level Line: +32/+2dBu
Input Impedance >5kOhm
Output section
Outputs 2 separately buffered, balanced outputs for AudioPressBox expanders
Output connectors Balanced, XLR
Nominal Output Level +6 dBu
Maximum Output Level +20dBu with 48 Outputs in use
+16dBu (600kOhm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs: Yes (each EXPANDER output is Independant Transformer Isolated)
SNR 86dB at 0dB Gain
78dB at +20dB Gain
Frequency Response 30/160Hz (filter) to 60kHz/-1dB
Controls Input gain, Compressor and Limiter, High Pass Filter, Power
Indicators Input clip, Output level, Gain reduction, Power
Power Supply 24V DC, 1A external adaptor
Dimensions (WxHxD) 215x120x50mm
Weight 1030g

If you wish to have a specific AudioPressBox of this type - Colour, number of inputs / outputs please let us know! You will be contacted as soon as possible within 24 hours.
