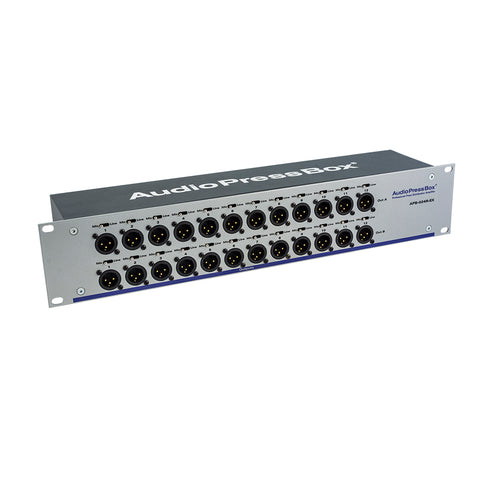

AudioPressBoxAPB-024 R-EX

Rack unit 24 Line/MIC outputs Expander

A professional press box (Audio Splitter) expander featuring 24 Line/MIC outputs in a Rack.
Outputs are divided to channel A and channel B so it can also be used for bilingual conferences.
Each Output is independet transformer balanced and isolated.
It has 2 inputs with 3-pin XLR connectors, one for each Output channel.
You can route each Input to Output Channel A or B or both.
It also has 2 link Outputs so you can daisy chain additional expanders if you need additional Line/MIC Outputs.


The expander must be fed with an APB-Drive unit in order to function properly.

REQUIRES A DRIVE UNIT: APB-D100, APB-D100 R, APB-D116 R-DANTEAPB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTEAPB-208 R, APB-400 R

IN STOCK

Delivery time: 2-5 business days worldwide.

REQUEST A QUOTE WHERE TO BUY


  • 24 High quality balanced Outputs, each Output is independent transformer isolated
  • Each Output is switchable between LINE or MIC Output level.
  • 2 internal Output Groups: 12x Output A and 12x Output B

Note: Source: APB-D100, APB-D100 R, APB-D116 R-DANTEAPB-D200 RAPB-D200 R-DANTE, APB-D216 R-DANTEAPB-208 R (RPS), APB -400 R (RPS)


24x TRANSFORMER Transformer Separately transformer isolated outputs.

Audio Press Box APB-024 R-EX
Type Expander
Groups 2
Inputs 1x Bus A
1x Bus B
Input connectors ballanced, XLR
Ouputs 12x Bus A, Line/MIC level
12x Bus B, Line/MIC level
Output connectors ballanced, XLR-M connector
Transfomer isolated outputs Yes (each output)
Nominal Output level MIC: -20dBu
LINE: +6 dBu
Output Impedance MIC: 220Ω
LINE: 600Ω
Dimensions (WxHxD) 480x150x90mm
Weight 2830g
