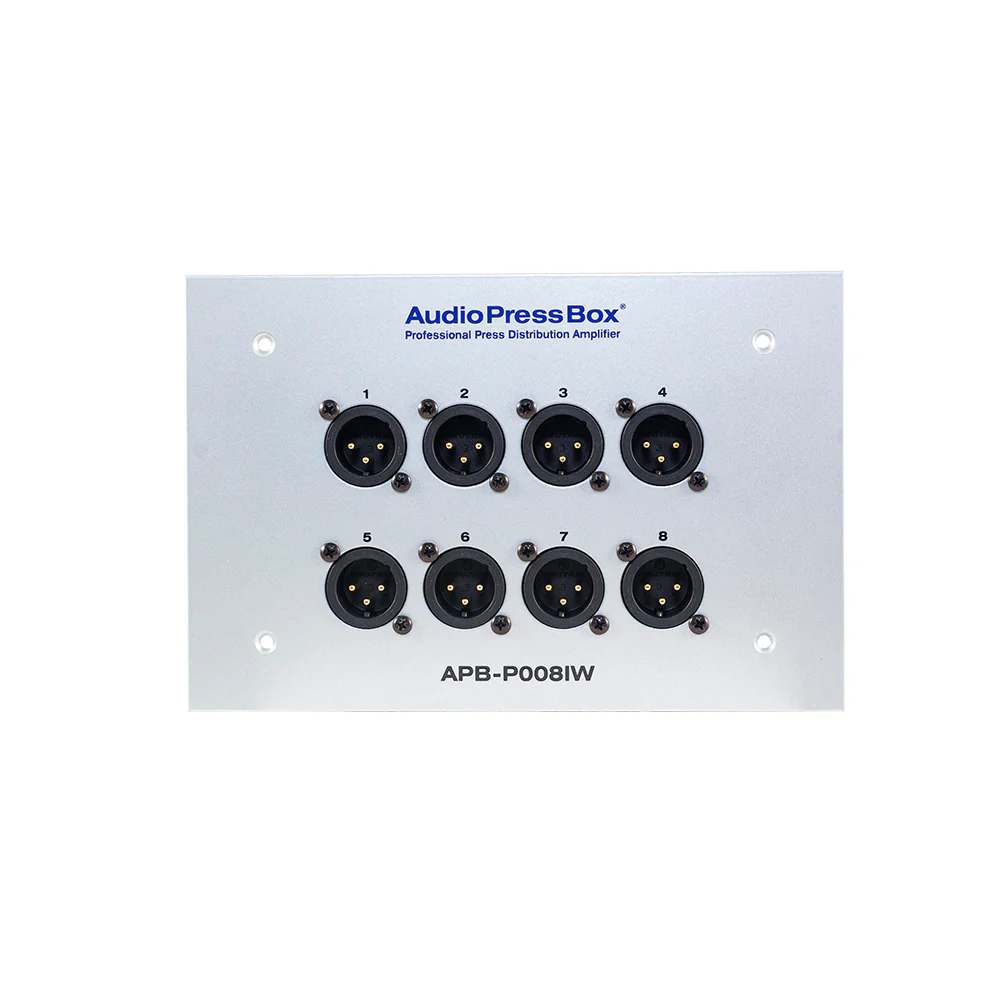

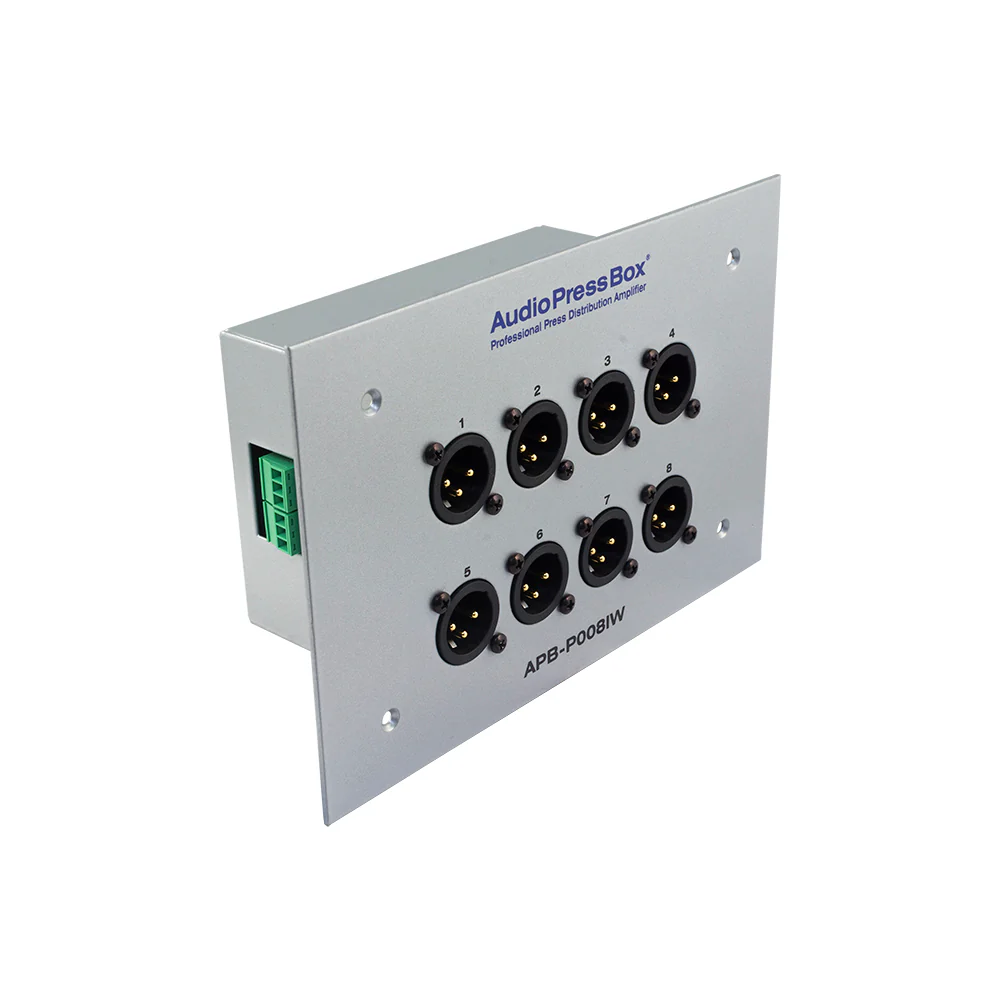

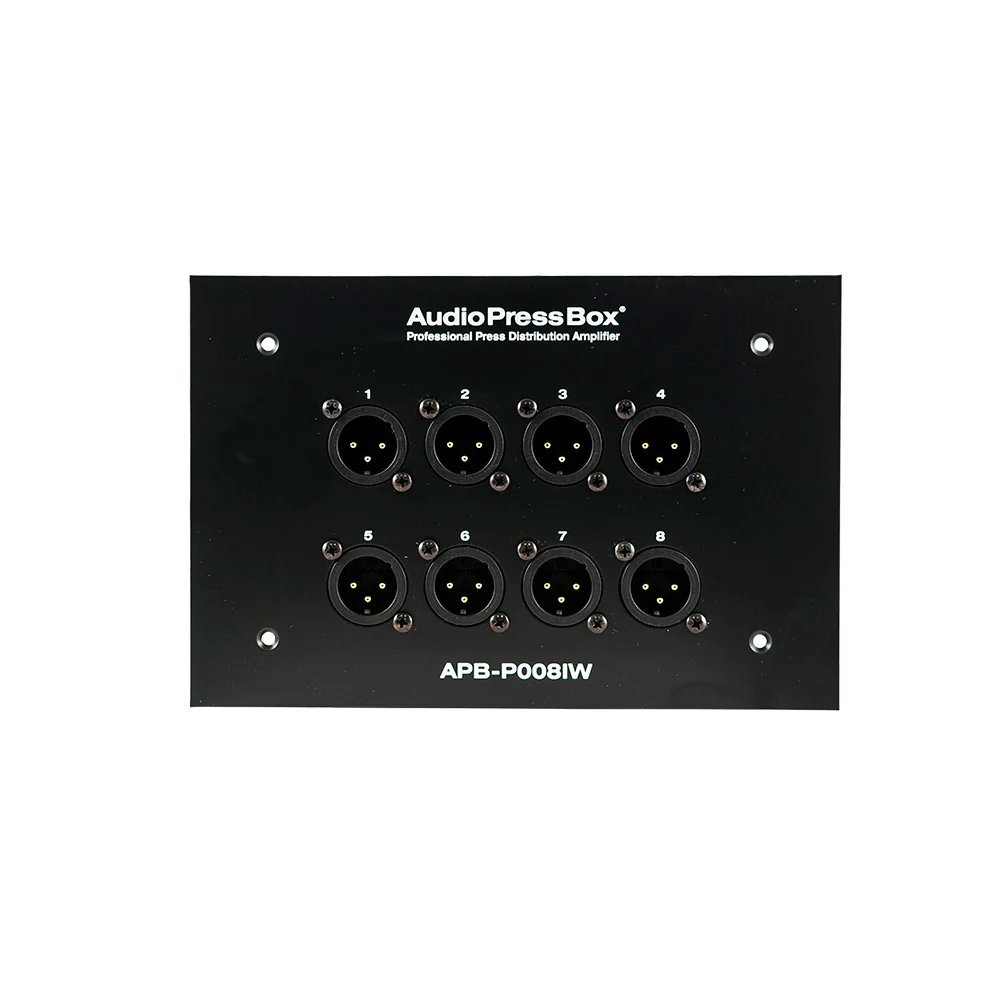

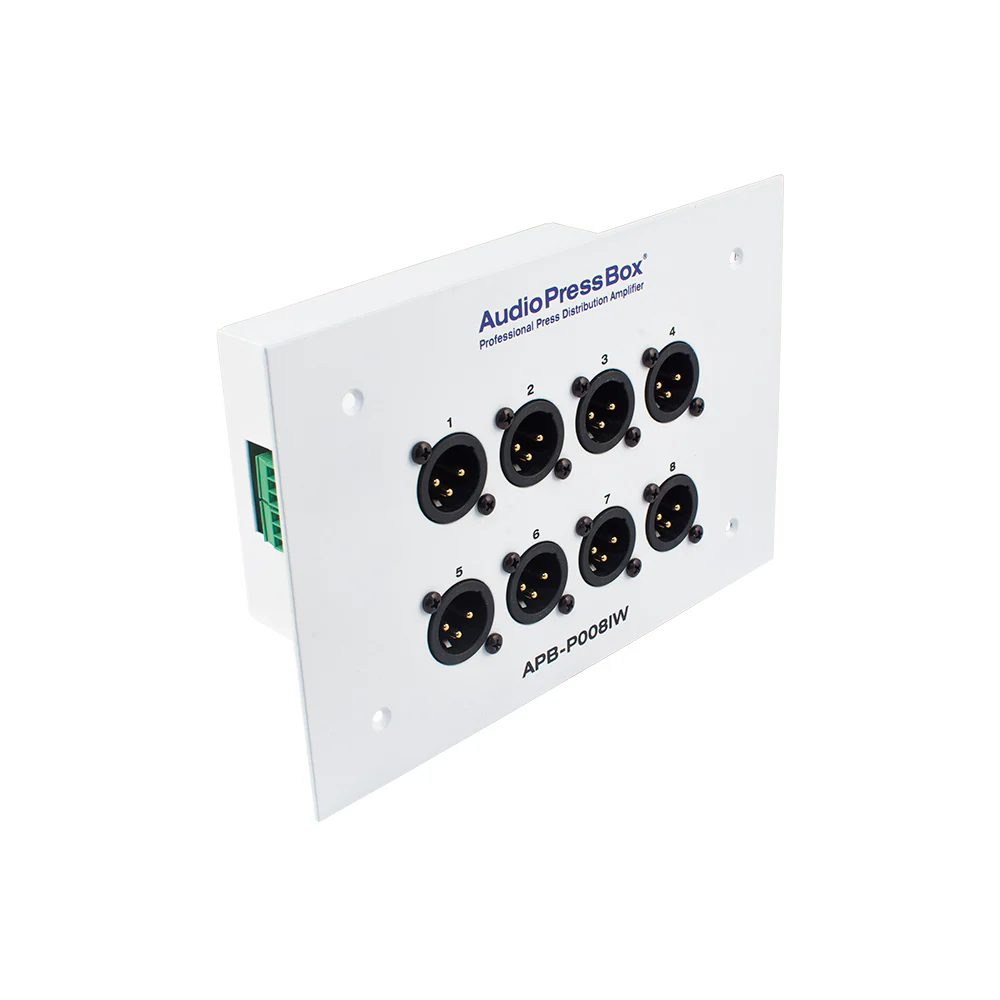

AudioPressBox
APB-P008 IW-EX

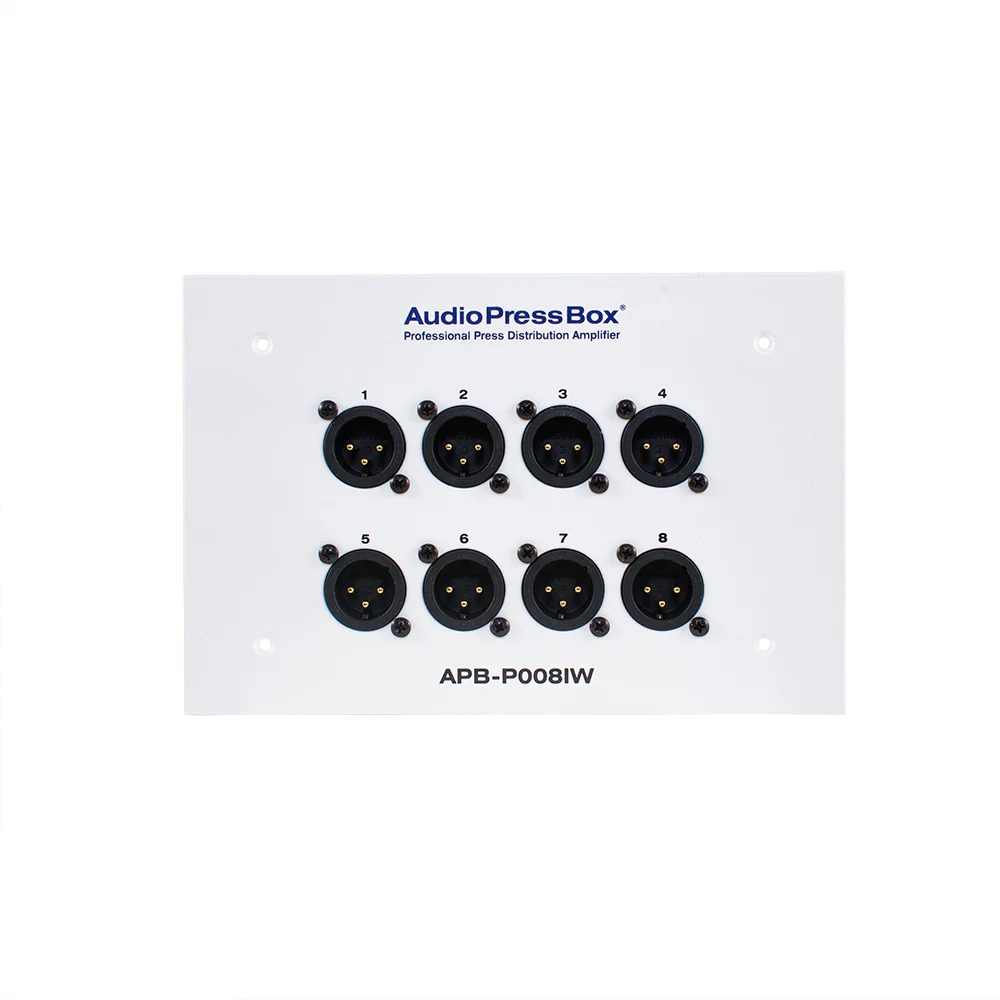

Passive in wall design with 1 LINE Input, 8 MIC Outputs
A professional passive press box (Audio Splitter) expander featuring 8 MIC outputs designed for system integrators for fixed installation.

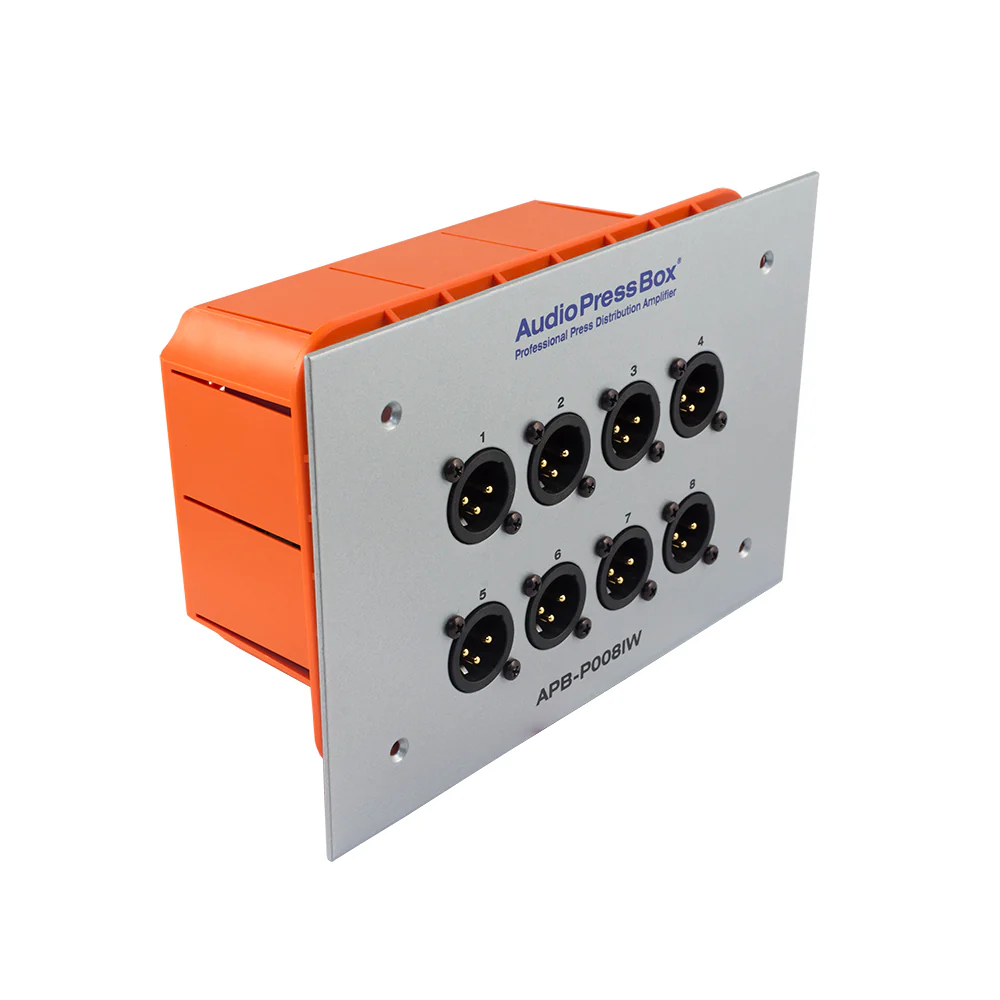

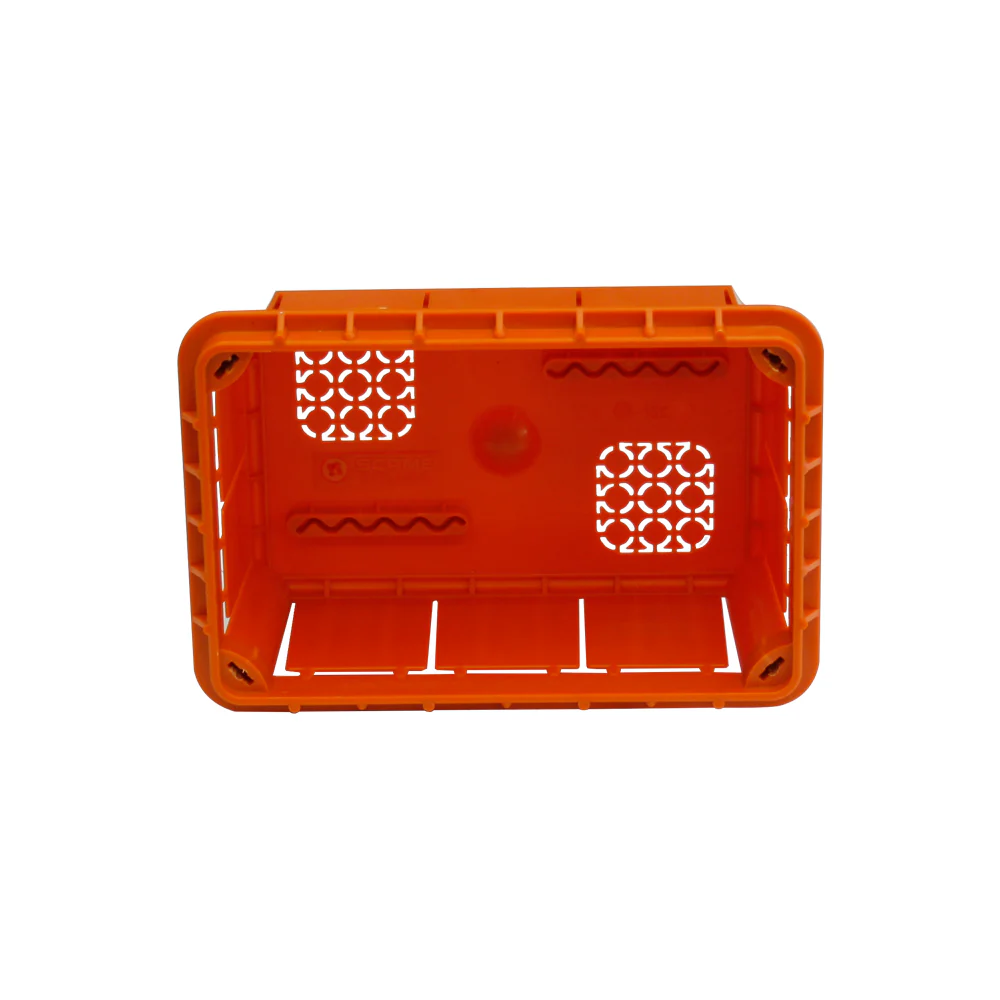

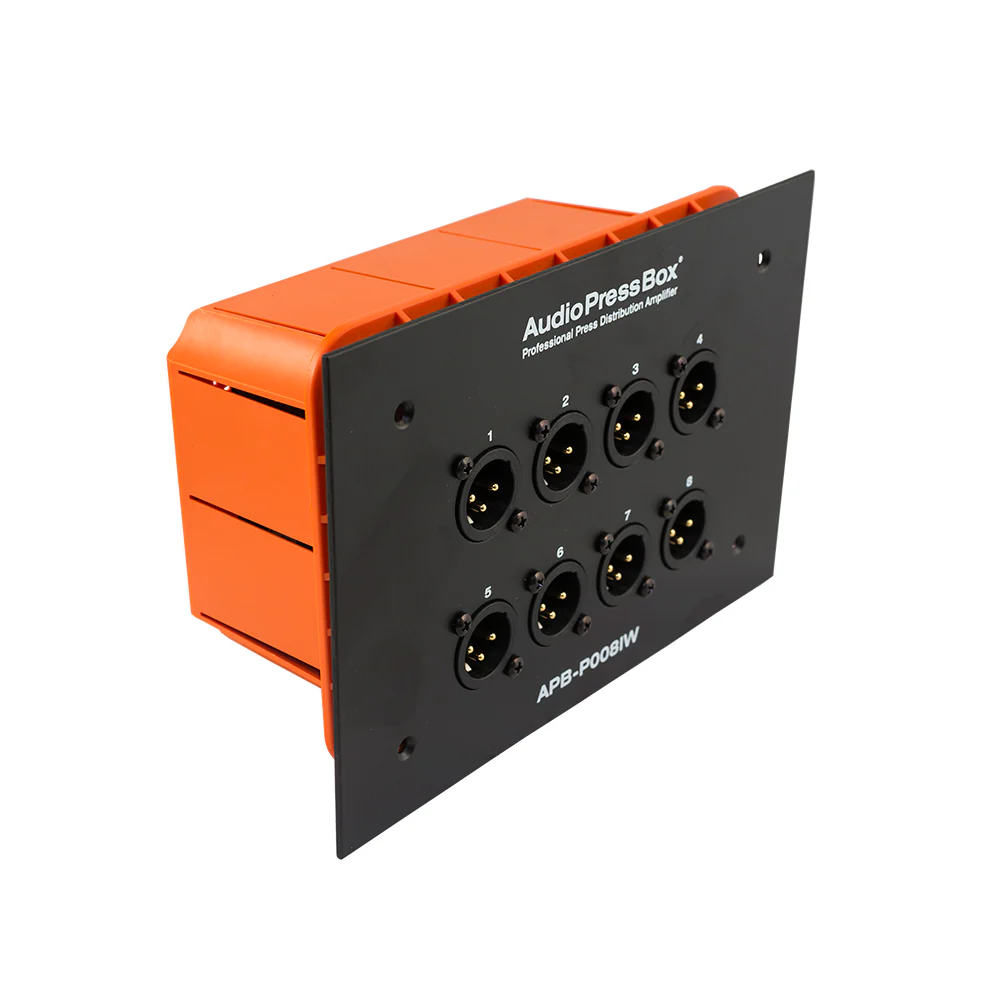

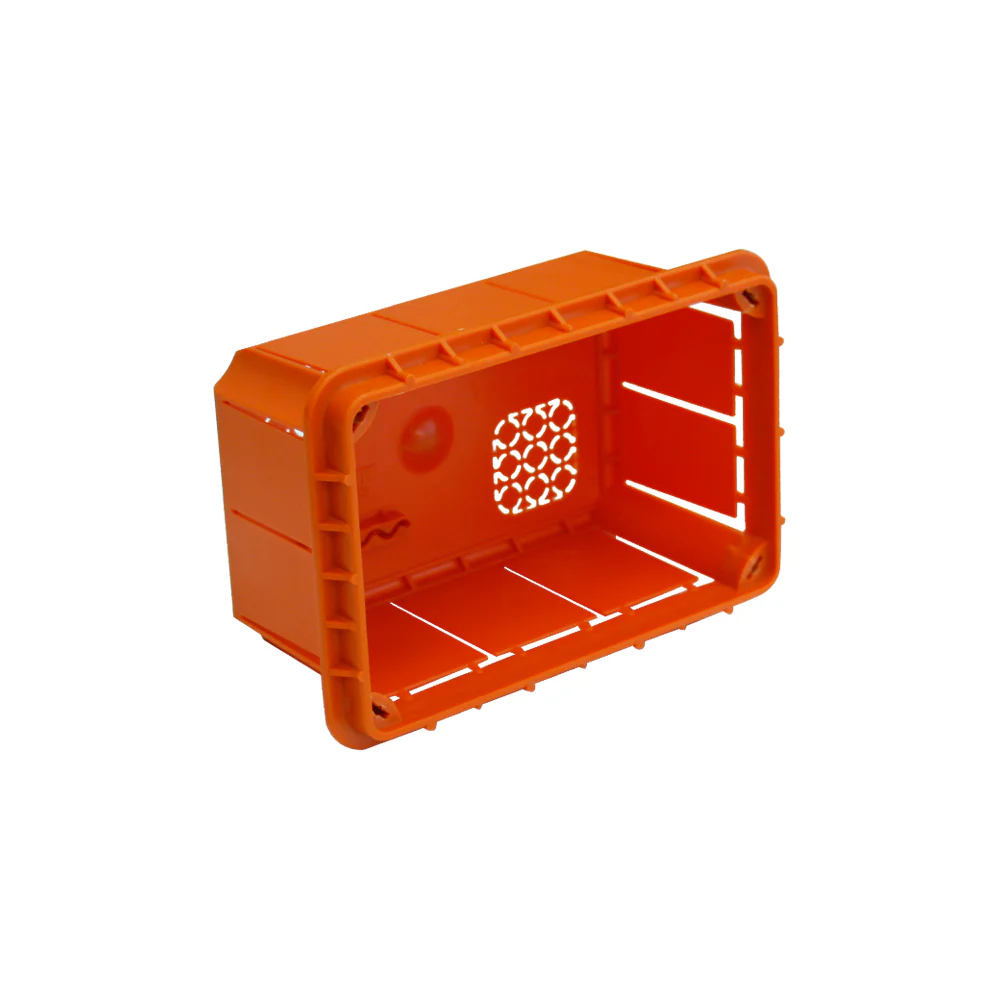

The IW stands for IN WALL as it is for flush mounting.
Each Output is independet transformer balanced and isolated.
It has 1 LINE input (3-pin phoenix connector). It has 1 Link output (3-pin phoenix connector) to connect more APB-P008 OW/IW in a daisy chain.
It can be fed directly by a mixing console.
- 8 High quality balanced Outputs, each Output is independent transformer isolated
- AudioPressBox delivers audio in broadcast quality
Features
Transformer Separately transformer isolated outputs.

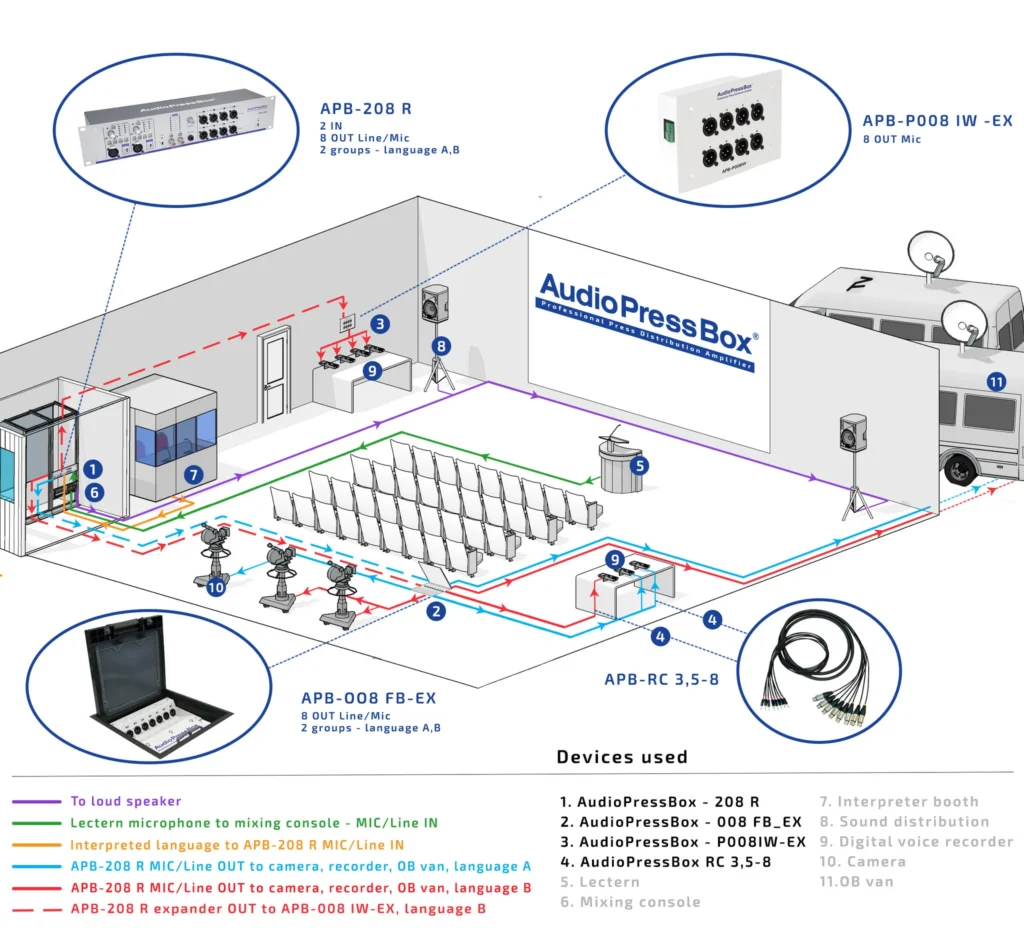

Applications
Specification of APB-P008 IW-EX
| Type | Expander |
| Groups | 1 |
| Inputs | 1 |
| Input connectors | ballanced, 3-pin phoenix connector |
| Max. input level | Line: +24dBu |
| Input Impedance | 2,5kOhm |
| Ouputs | 8 MIC level (-38dBu), 1 Input link (Line level) |
| Ouput connectors | ballanced, XLR-M connector |
| Transfomer isolated outputs | Yes (each output) |
| Nominal Output level | -38dBu (0dBu on the input) |
| Maximum Output level | -14dBu (no load) -20dBu (150 Ohm) |
| Output Impedance | 150 Ohm |
| Frequency Response | 10Hz to 30kHz/-1dB |

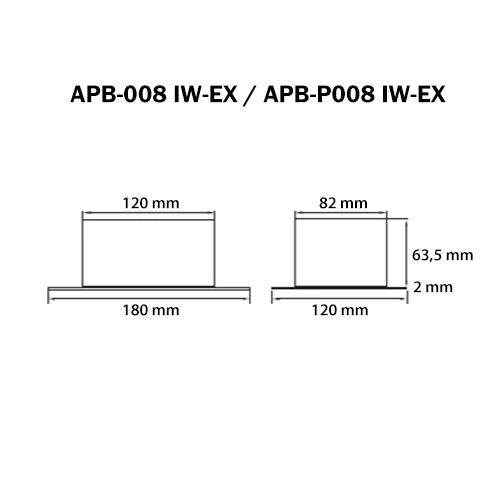

| Dimensions (WxHxD) | 180x120x63mm |
| Weight | 960g |

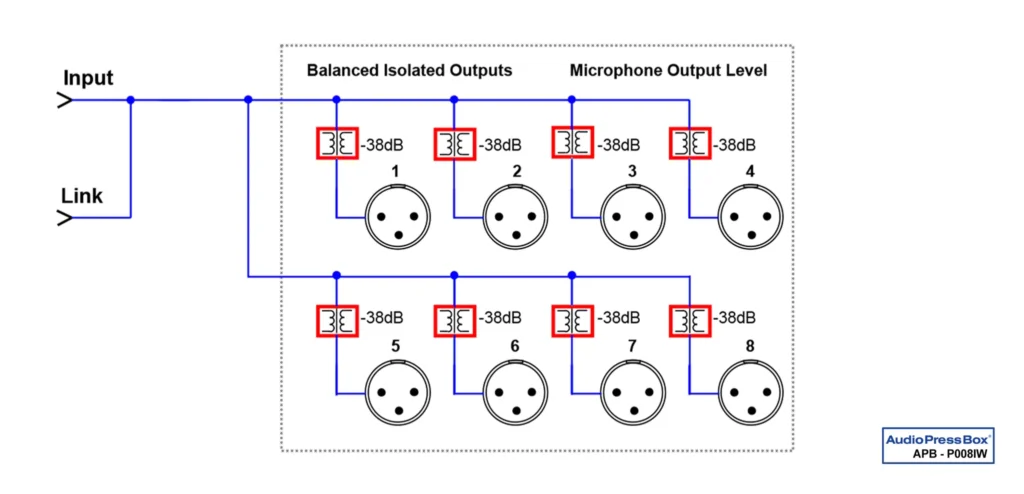

Block diagram
