AudioPressBox

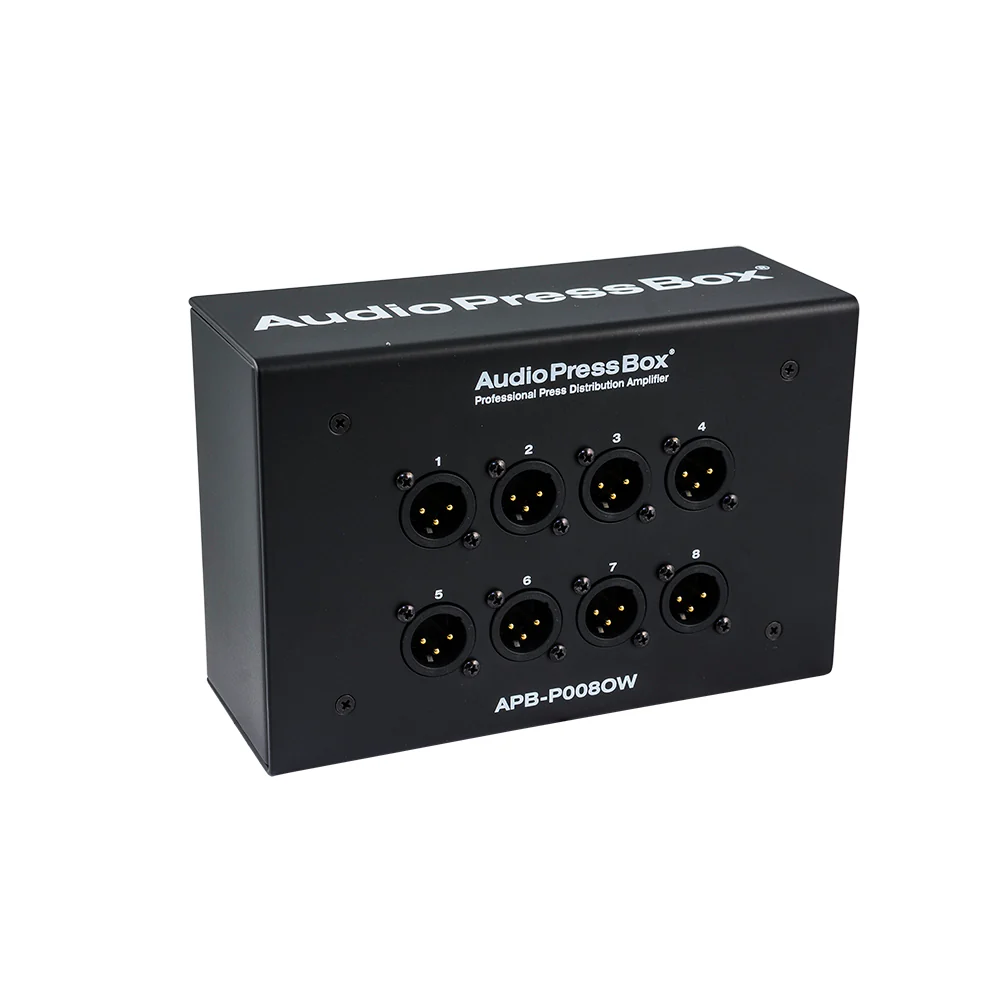

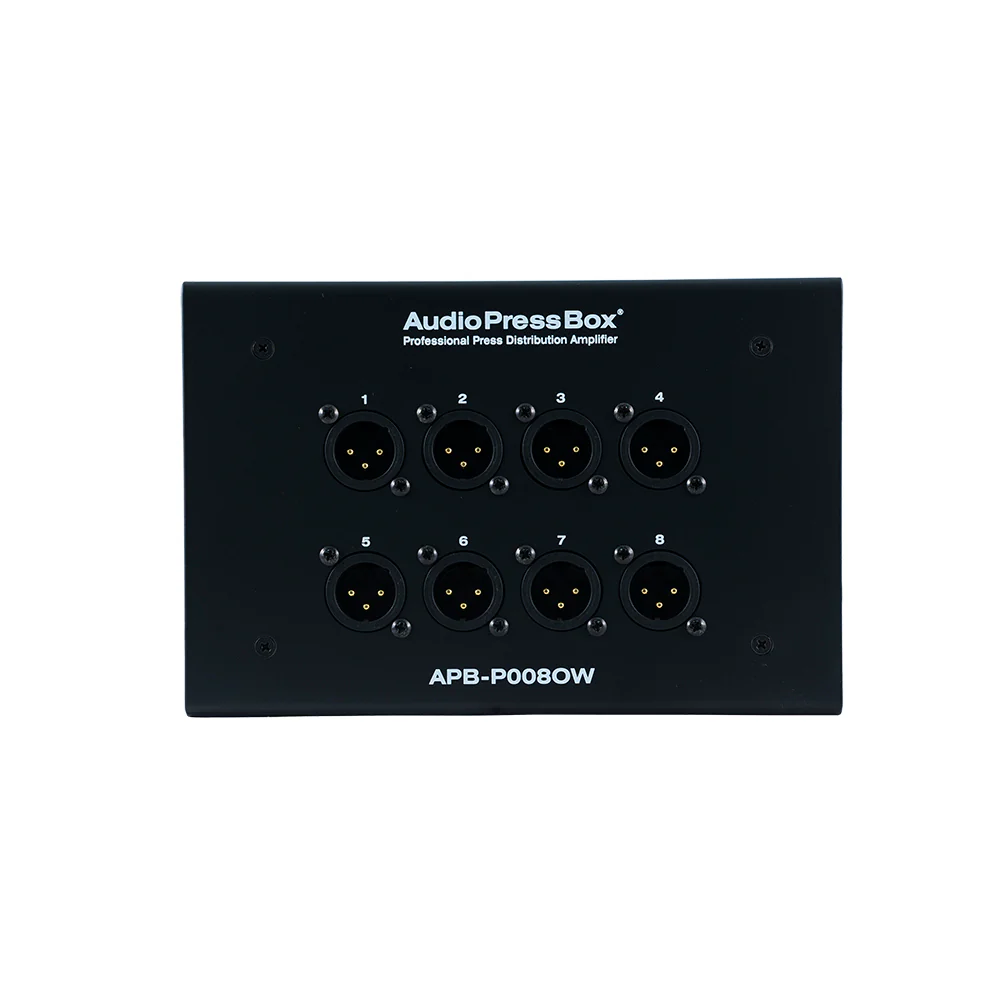

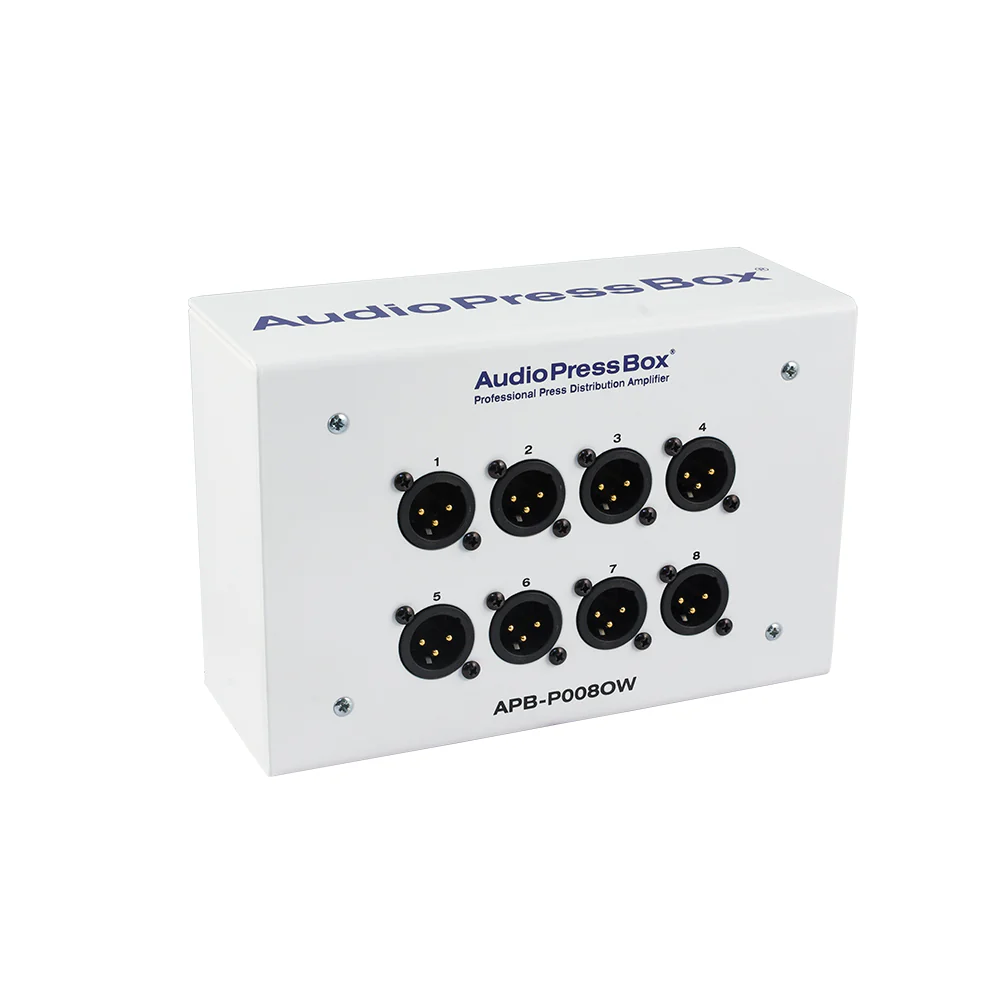

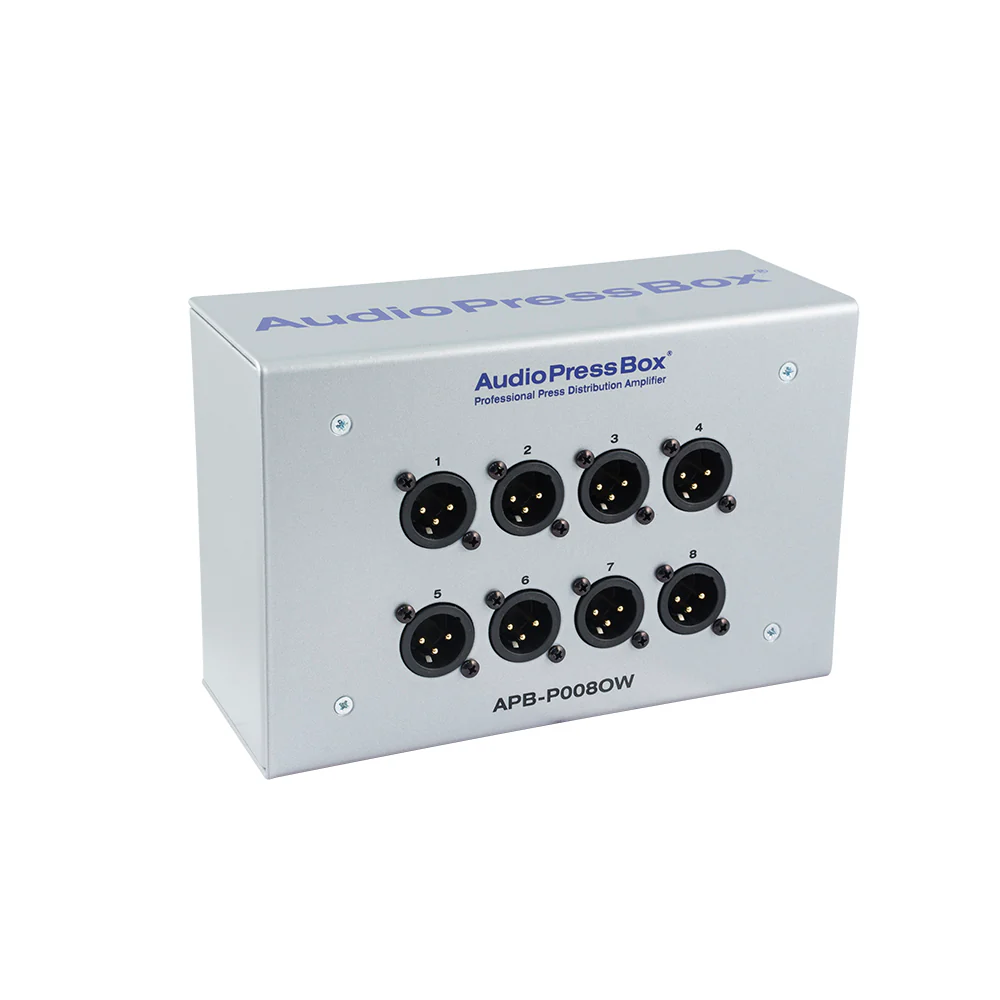

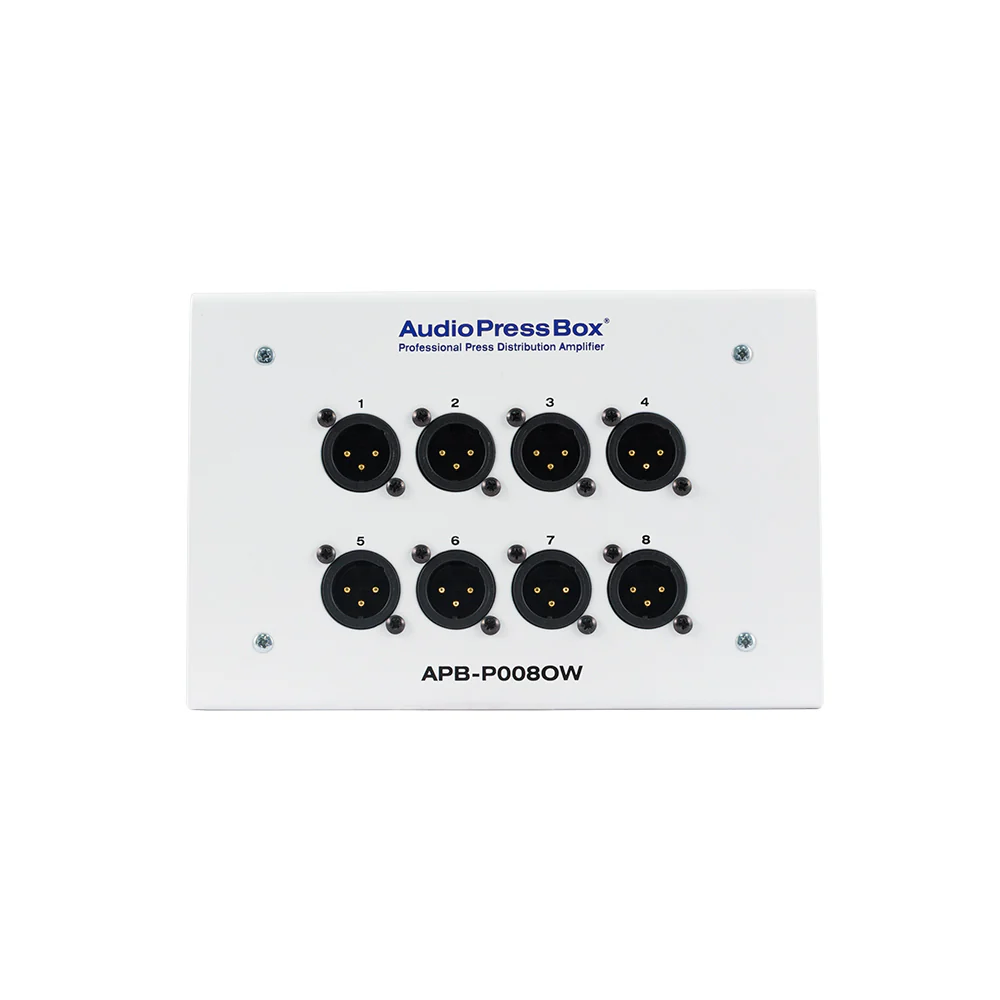

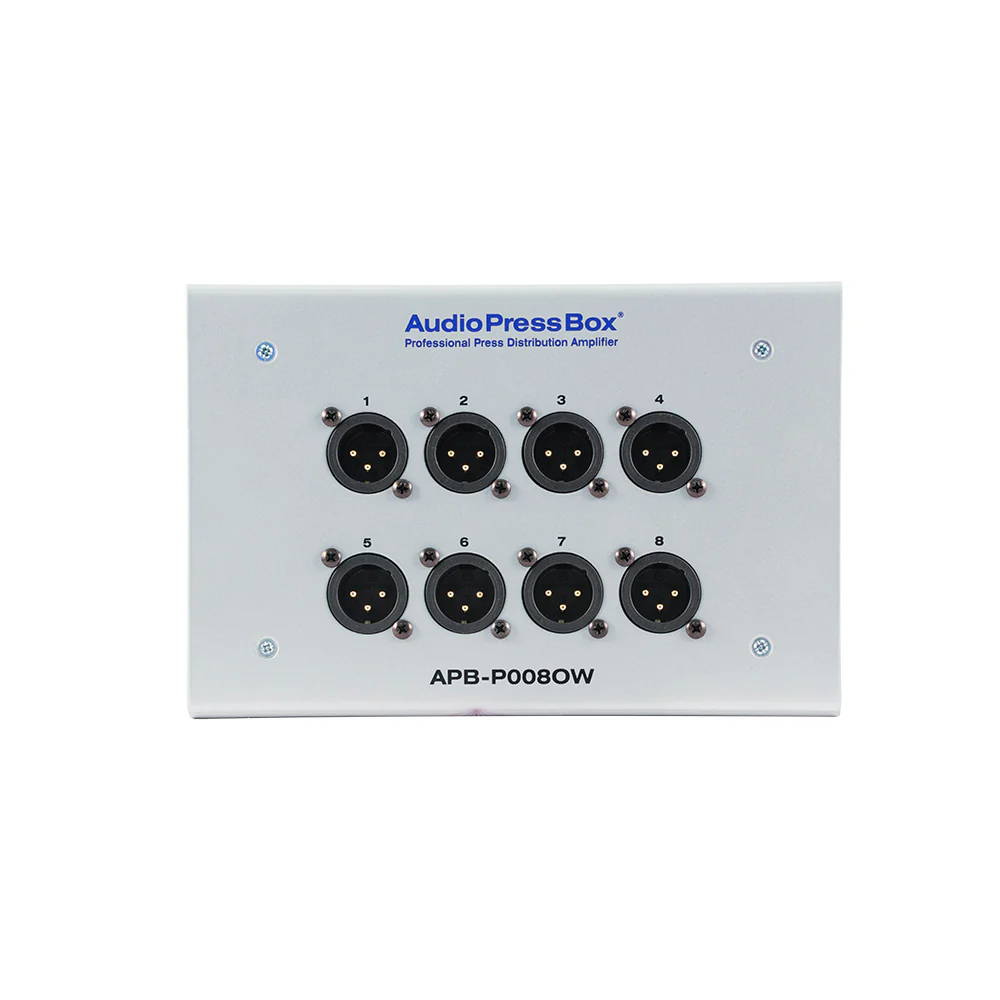

APB-P008 OW-EX

Passive on wall design with 1 LINE Input, 8 MIC Outputs

A professional passive press box (Audio Splitter) expander featuring 8 MIC outputs designed for system integrators for fixed installation.
The OW stands for ON WALL as it is for surface mounting.

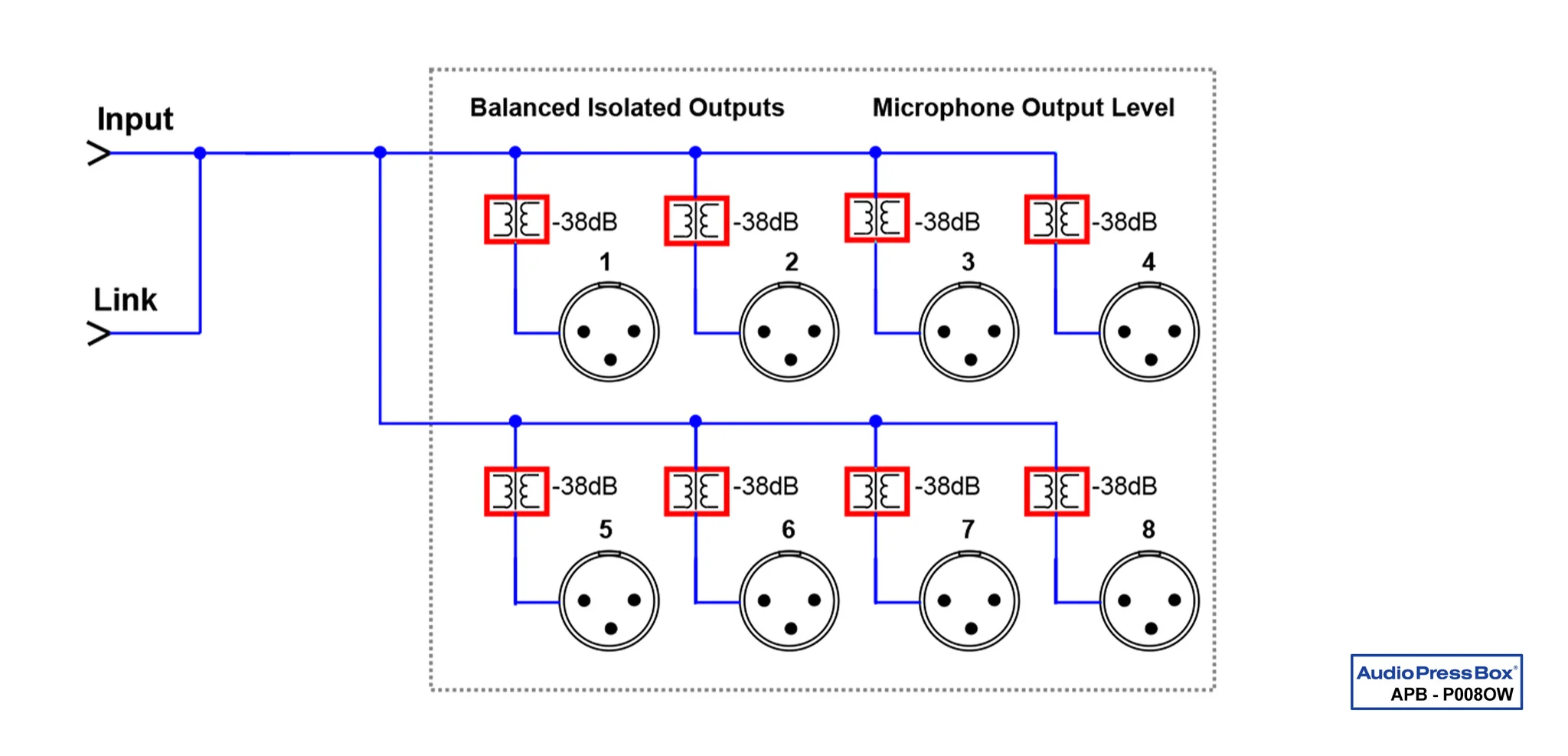

Each Output is independet transformer balanced and isolated.
It has 1 LINE input (3-pin phoenix connector). It has 1 Link output (3-pin phoenix connector) to connect more APB-P008 OW/IW in a daisy chain.

8 High quality balanced Outputs, each Output is independent transformer isolated
AudioPressBox delivers audio in broadcast quality
It can be fed directly by a mixing console
Source: Balanced Line Output of professional audio equipment
Separately transformer isolated outputs

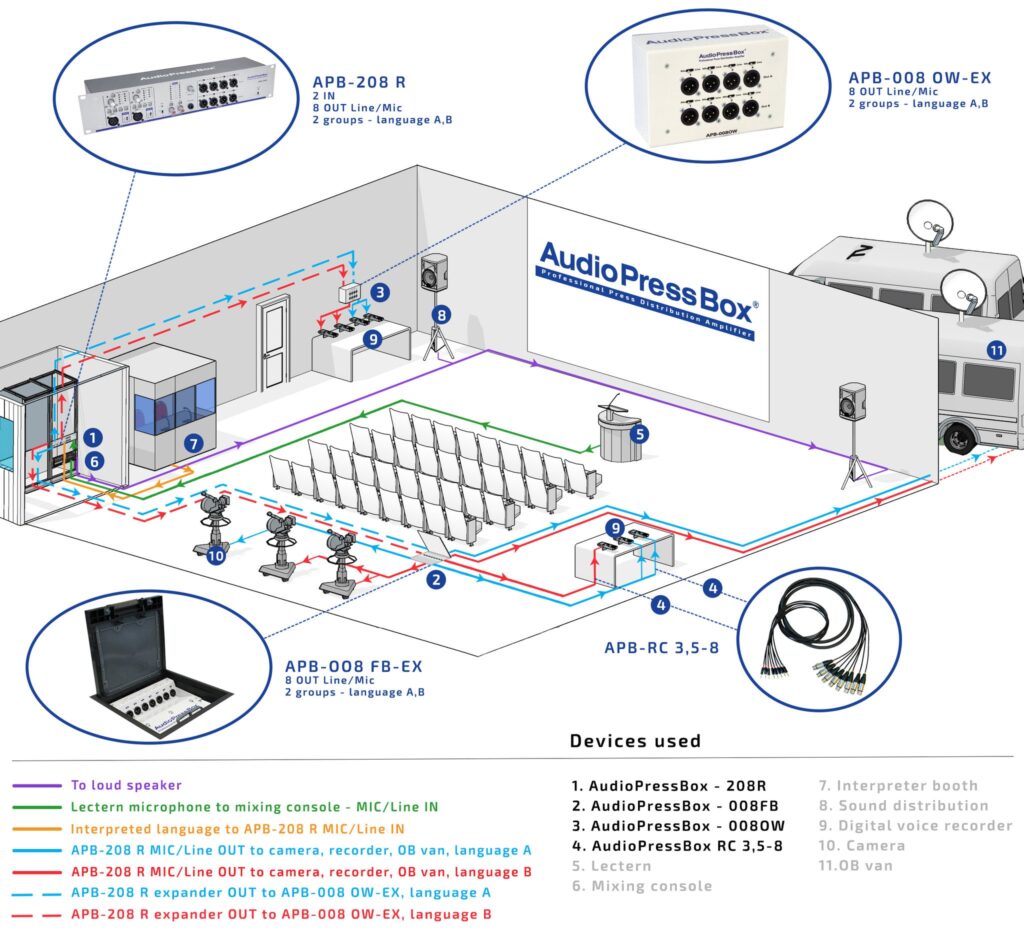

Applications

Specification of APB-P008 OW-EX

Type	2 in 16 out
Groups	2
Input section
Inputs	2 (Line or Dante)
Input connectors	Balanced, XLR / 6.3mm JACK, RJ45-Dante
Max. input level	Line: +32/+2 dBu
Input Impedance	>5kOhm
Output section
Outputs	16 Line/MIC level, 2 buffered outputs for expanders (max 48 Line/MIC outputs)
Output connectors	Balanced, XLR
Nominal Output Level	+6dBu (front outputs)

Maximum Output Level	+20dBu (no load) ; +14dBu (600Ohm)
Output impedance	Mic: 220 Ohm ; Line: 600 Ohm
Transformer isolated outputs	Yes (each output)
SNR	86dB at 0dB Gain ; 78dB at +20dB Gain
Frequency Response	20/160Hz (ﬁlter) to 36kHz/-3dB (front outputs)
Controls	Input gain, Dante switch, High-pass ﬁlter, Compressor, Output PAD
Indicators	Input clip, Dante, Output level, Gain reduction, Power
Power Supply	24V DC, 1A external adaptor
Dimensions (WxHxD)	2 RU, 480x135x90mm
Weight	3460 g
